Description

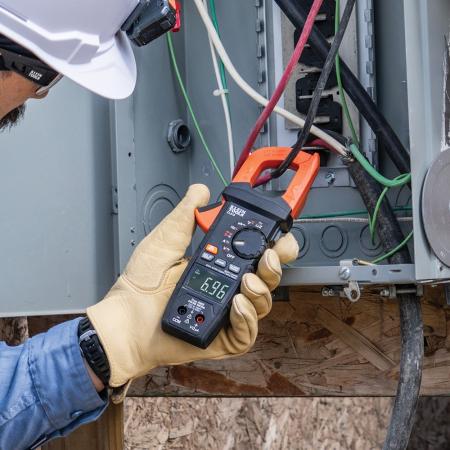

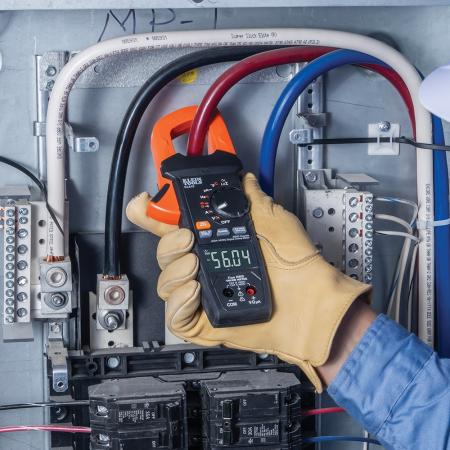

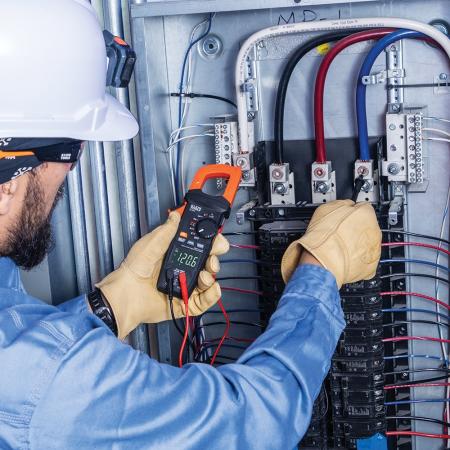

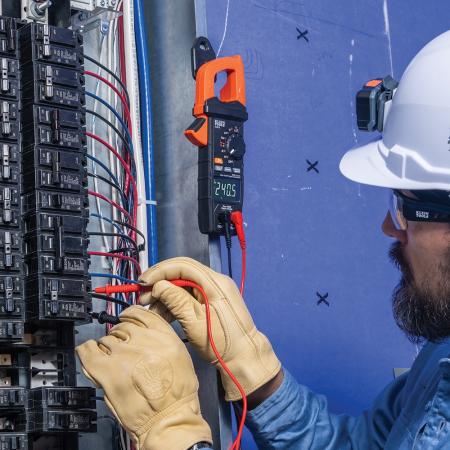

Klein®, CL810, Clamp Meter, Auto-Ranging Digital Pro, 1000 V AC/DC, 600 A Electrical Rating, 60 mOhm Resistance, 1 Hz to 500 kHz Frequency, 1.4 in Jaw, 6000 Count, Reverse Contrast LCD Display, +/-(1.2% + 5 Digits) AC Current Accuracy, Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC/Class 2/Double Insulation/CE/UKCA, (3) AAA Batteries Power Source, 1.65 in H x 3.47 in W x 9.06 in L Dimensions, ABS
Features:
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current 10mA-600A, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
Applications:
For Variety of electrical diagnostic and troubleshooting applications
Standards/Approval:
- CAT IV 600V, CAT III 1000V
- Class 2
- Double Insulation
- CE
- UKCA
