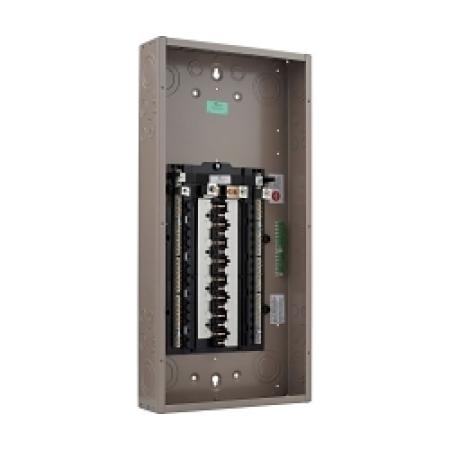

EATON Main Lug Load Center, 225 A, 120/240 V AC, 64 Circuits

Description

EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 225 A, 64 Pole, 25 kA Interrupt, 64 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 32 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X5 Enclosure Box, Sheet Steel Housing, 29 in L x 14.3 in W x 4 in H

Features:

• One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
• Plug-on neutral design provides time and labor-savings by eliminating the pigtail
• CH 150-225 ampere main breakers are rated 25 KAIC providing contractors with the highest interrupting rating main breaker in the industry
• Unique sandalwood finish provides an aesthetically appealing
• scratch resistant powder coating
• CH breakers include an industry exclusive "trip to off" feature that allows a homeowner to easily identify a tripped circuit breaker
• Mechanical flag box feature on CH breakers for easy trip indication

Applications:

Electrical Assemblies, Panels, EOEMs, Residential Loadcenters, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications

Standards/Approval:

• UL 67

Warranty:

Lifetime

Amperage Rating	225 A
Breaker Mounting	Plug-On Neutral
Breaker Type	CH/CHP
Dimensions	29 in L x 14.3 in W x 4 in H
Enclosure Box Size	X5
Enclosure Type	NEMA 1
Housing Material	Sheet Steel
Interrupt Rating	25 kA
Mounting Type	Plug-On
Number of Circuits	64
Number of Poles	64
Number of Spaces	32
Type	1-Phase Insulated/Bondable Split Standard
Voltage Rating	120/240 V AC
Wire Size	4 AWG to 300 kcmil
Wiring Configuration	3-Wire
Manufacturer	EATON
