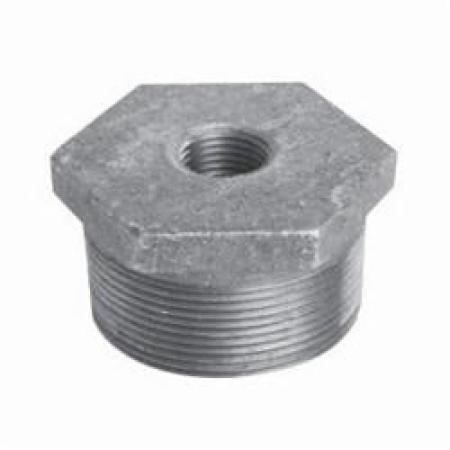

Anvil® Pipe Bushing, 2-1/2 x 1 in, Malleable Iron, 150 lb Pressure

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 2-1/2 x 1 in Nominal, MNPT x FNPT End Style, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 150 deg F, Domestic

Features:

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 2.48 in head width


• 0.34 in head height


• 0.7 in internal x 0.88 in external thread length


• Outside head

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• ANSI/ASME B16.14/B1.20.1


• ASTM A153/197


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW P471

Color	Black
Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black
Fitting/Connector Type	Bushing
Hex Size	2.48 in
Material	Malleable Iron
Nominal Size	2-1/2 x 1 in
Pressure Class	150 lb
Pressure Rating	300 psi
Schedule Rating	SCH 40/STD
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Thickness	0.34 in
Type	Hex Head
Manufacturer	Anvil®
