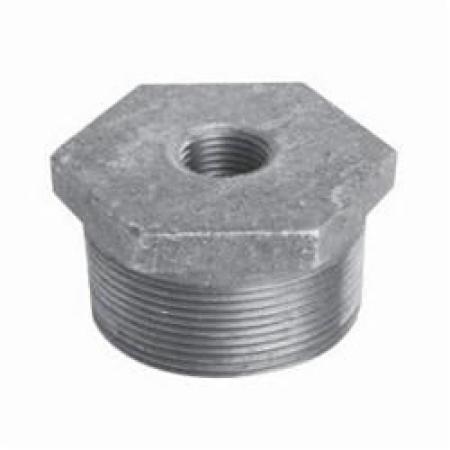

Anvil® Pipe Bushing, 1/2 x 3/8 in, MNPT x FNPT, Cast Iron

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 1/2 x 3/8 in Nominal, MNPT x FNPT End Style, 150/300 lb Pressure Class, Cast Iron, Black Oxide, Domestic/Import: Domestic

Features:

• Small Steel Fittings to ASME C1215


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 0.19 in H of head


• 0.41 in internal x 0.56 in L external thread


• 0.87 in W of head

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• ANSI B16.14/B1.20.1


• ASME B16.3/B1.20.1/B16.14


• ASTM A153/A197


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW P471

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black Oxide
Fitting/Connector Type	Bushing
Hex Size	0.87 in
Material	Cast Iron
Nominal Size	1/2 x 3/8 in
Pressure Class	150/300 lb
Pressure Rating	300 psi
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Thickness	0.19 in
Type	Hex Head
Manufacturer	Anvil(R)
