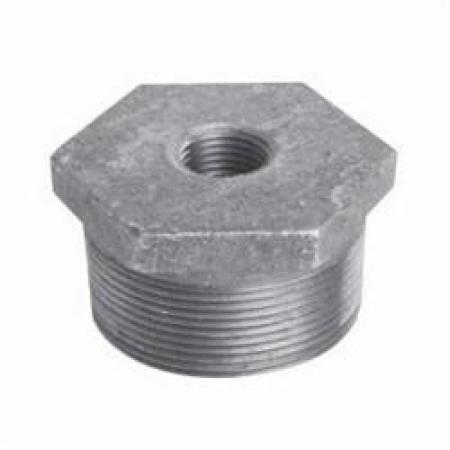

Anvil® Pipe Bushing, 1 x 3/4 in, Cast Iron, 150 lb Pressure

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 1 x 3/4 in Nominal, MNPT x FNPT End Style, 150 lb Pressure Class, 300 psi Pressure, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic

Features:

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black Oxide
Fitting/Connector Type	Bushing
Material	Cast Iron
Nominal Size	1 x 3/4 in
Pressure Class	150 lb
Pressure Rating	300 psi
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Type	Hex Head
Manufacturer	Anvil®
