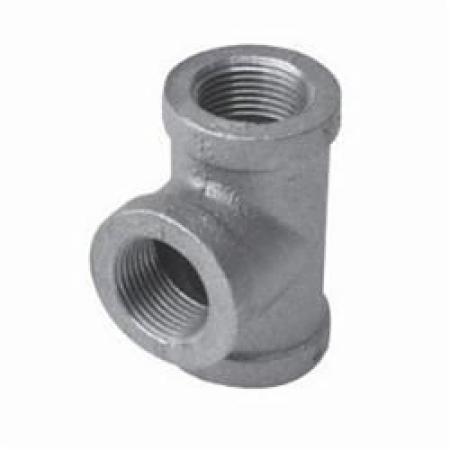

Anvil® Straight Pipe Tee, 1 in Nominal, FIG 1105 Series

Description

Anvil® Straight Pipe Tee, Series: FIG 1105, Fitting/Connector Type: Tee, 1 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Features:

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 1-1/2 in center to end


• 0.58 in thread length


• 0.82 in take out

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• ASME B16.14/B16.4/B1.20.1


• ASTM A153/A197


• WW P521

Domestic/Import	Domestic
End Style	FNPT
Finish	Black Oxide
Fitting/Connector Type	Tee
Material	Malleable Iron
Nominal Size	1 in
Pressure Class	150 lb
Pressure Rating	300 psi
Schedule Rating	SCH 40/STD
Series	FIG 1105
Temperature Rating	-20 to 150 deg F
Manufacturer	Anvil(R)
