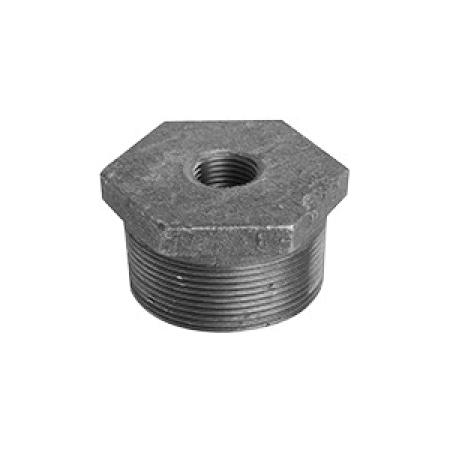

Anvil® Pipe Bushing, 3/4 x 1/4 in, Cast Iron, Domestic

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 3/4 x 1/4 in Nominal, MNPT x FNPT End Style, 150/300 lb Pressure Class, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic

Features:

• Small Steel Fittings to ASME C1215


• 0.22 in H outside head


• 0.32 in L internal thread, 0.63 in L external thread

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• AB-1953


• ASME B16.14


• ANSI/ASME B1.20.1 Thread


• Federal Spec WW-P-471

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black Oxide
Fitting/Connector Type	Bushing
Hex Size	1.15 in
Material	Cast Iron
Nominal Size	3/4 x 1/4 in
Pressure Class	150/300 lb
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Type	Hex Head
Manufacturer	Anvil®
