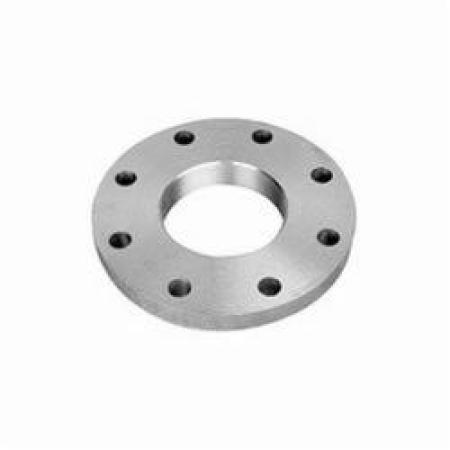

Anvil® Companion Flange, 6 in Nominal, Cast Iron, Domestic

Description

Anvil® Companion Flange, Series: FIG 1011, 6 in Nominal, 1 in Thickness, Thread Connection, 11 in OD, 200 psi Pressure, 125 lb Pressure Class, SCH 40/STD Schedule, -20 to 150 deg F, 7-9/16 in Diameter Hub, 1-9/16 in Length Through Hub, Cast Iron, Black Oxide, Domestic/Import: Domestic

Features:

• Threaded companion flanges offer an economical way to convert the plain end of a pipe to a flanged connection


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-resistant coating

Standards/Approval:

• ASME B16.1


• cULus Listed


• FM Approved


• ANSI B16.1/B1.20.1


• ASTM A126/A153


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW F521

Bolt Circle Diameter	9-1/2 in
Bolt Hole Size	0.88 in
Connection Type	Thread
Dimensions	1.56 in L
Domestic/Import	Domestic
Finish	Black Oxide
Hub Diameter	7-9/16 in
Length Through Hub	1-9/16 in
Material	Cast Iron
Nominal Size	6 in
Number of Bolt Holes	8
Outside Diameter	11 in
Pressure Class	125 lb
Pressure Rating	200 psi
Schedule Rating	SCH 40/STD
Series	FIG 1011
Temperature Rating	-20 to 150 deg F
Manufacturer	Anvil®
