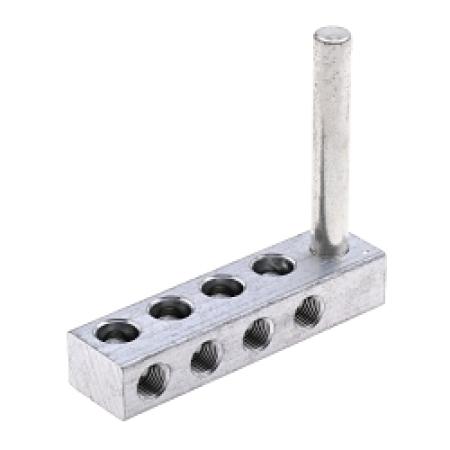

NSI Transformer Stud Connector, 4-Port, 4 to 1/0 AWG, TS Series

Product Data

KSCdirect Part #: NSI TS1/0-4
Description: Wire Range 1/0-4, 4 Conductors Stud Diam. 3/8", Stud Length 3"
MFG Part #: TS1/0-4
UPC: 662381023551
Supplier: NSI
Usually ships in 1-2 days.
You will be notified of any delay and may cancel at that time.

Your Price: $25.53 / EA

QTY:
For shipping rates, add item to cart.
* Quantity discounts may be available. Call Kelly Supply at 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.

Details

Description

NSI Transformer Stud Connector, 4-Port Dual Rated Mechanical, Series: TS Series, 4 to 1/0 AWG Conductor, 600 V AC, 4-Conductor, 1-Pole, 5/16 in Bolt Size, 3/8 in Dia x 3 in L Stud, 90 deg C, 6061-T6 Aluminum Alloy, Aluminum, Aluminum, 2.68 in L x 0.88 in W x 0.88 in H

Features:

  • Flexible and Reusable, Set screw connectors may be reused and are made from high-strength 6061-T6 aluminum, allowing for superior electrical and mechanical performance
  • Low-Contact Resistance, Mechanical Lug Connectors are clear plated, and the copper stud is tin plated, providing low-contact resistance for connection to the transformer

Applications:

Wire Termination Applications

Standards/Approval:

  • ARRA Compliant
  • Buy American Act Compliant
  • ANSI C119.4 Class A

Attributes/Specifications

Color Aluminum
Conductor Size 4 to 1/0 AWG
Dimensions 2.68 in L x 0.88 in W x 0.88 in H
Finish Aluminum
Material 6061-T6 Aluminum Alloy
Series TS Series
Specifications 4-Conductor, 1-Pole, 5/16 in Bolt Size, 3/8 in Dia x 3 in L Stud
Temperature Rating 90 deg C
Type 4-Port Dual Rated Mechanical
Voltage Rating 600 V AC
Manufacturer NSI
