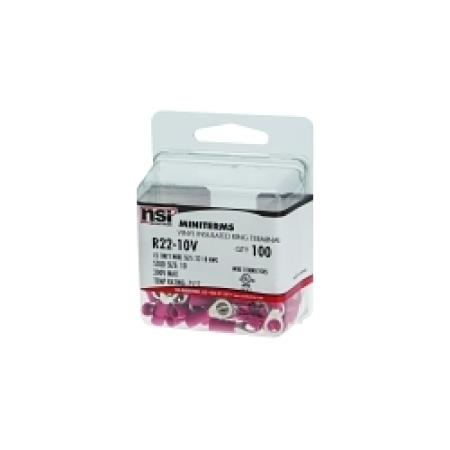

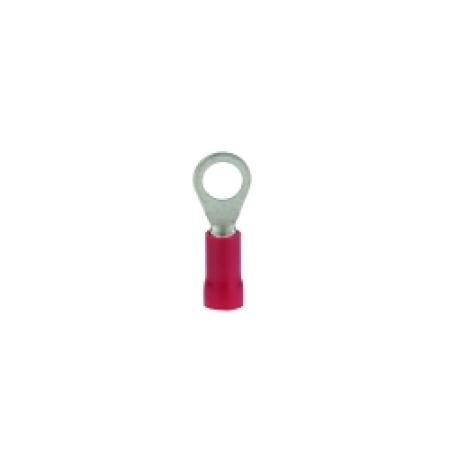

NSI Miniterms Ring Terminal, 22-18 AWG, #10 Stud, Red

Description

NSI Miniterms Ring Terminal, Series: R Series, 22 to 18 AWG Conductor, #10 Stud, 0.826 in Length, Brazed Seam Barrel, 0.0669 in ID x 0.1614 in OD x 0.3937 in L Barrel, 0.314 in W Tongue, 300 V AC, 1-Terminal, Vinyl Insulated, 75 deg C, Copper, Electro-Plated Tin, Red

Features:

• Basic tongue type ring terminal
• Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed

Applications:

Wire Termination Applications

Standards/Approval:

• cULus Listed
• KM Approved

Barrel Size	0.0669 in ID x 0.1614 in OD x 0.3937 in L
Barrel Type	Brazed Seam
Color	Red
Conductor Size	22 to 18 AWG
Finish	Electro-Plated Tin
Length	0.826 in
Material	Copper
Series	R Series
Specifications	1-Terminal, Vinyl Insulated
Stud Size	#10
Temperature Rating	75 deg C
Tongue Size	0.314 in W
Voltage Rating	300 V AC
Manufacturer	NSI
