Description

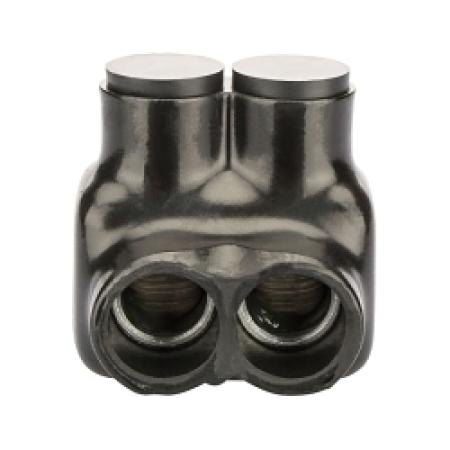

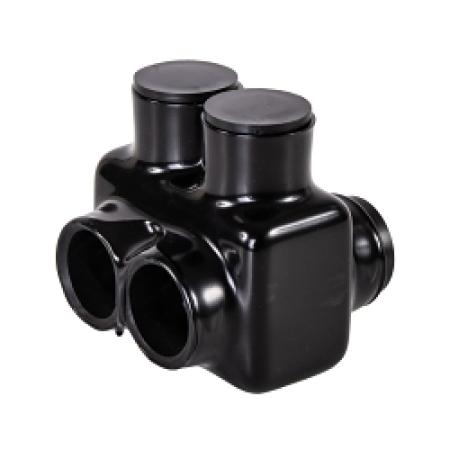

NSI Polaris™ Insulated Multi-Tap Connector, Double Sided Entry, Series: IT Series, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 600 V AC, 1 Pole, 2 Conductor, Class B and C Wire Type, 5/16 in Hex, -45 to 90 deg C, Plastisol, Black, 2.12 in L x 2.25 in W x 2.25 in H
Features:
- Dual-Side Wire Entry, Form secure connections between 2 conductors quickly using the double-sided entry ports sized for wires between 250 MCM and 6 AWG
- Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor, Both dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
Applications:
For aluminum and copper cables, in-line splicers/reducers and wire termination
Standards/Approval:
- ARRA Compliant
- Buy American Act Compliant
- RoHS Compliant
- AL9CU Approved
- cULus Listed
- UL 486B
Warranty:
1 Year
