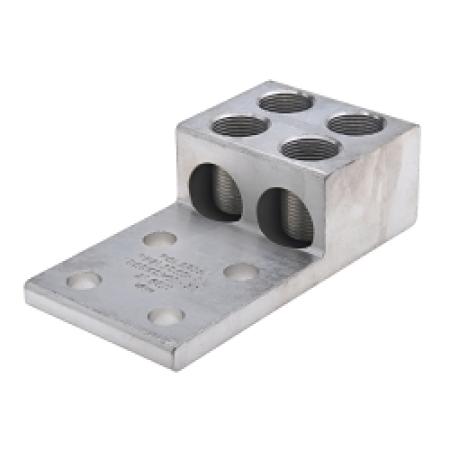

NSI Transformer Lug, Dual Rated, 500-1000 kcmil, Heavy Duty

Product Data

KSCdirect Part #: NSI 2-1000LL4
Description: Heavy Duty Dual Rated Transformer Lug 1000 Mcm - 500 Mcm
MFG Part #: 2-1000LL4
UPC: 662381027221
Supplier: NSI
Usually ships in 1-2 days.
You will be notified of any delay and may cancel at that time.

Your Price: $152.23 / EA

QTY:
For shipping rates, add item to cart.
* Quantity discounts may be available. Call Kelly Supply at 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.

Details

Description

NSI Transformer Lug, Dual Rated Heavy Duty, Series: LL Series, 2 Conductors, 500 to 1000 kcmil Conductor, 1/2 in Stud, 600 V, Specifications: 1-Pole, 2-Port, 1-3/4 in Mounting Hole Spacing, (4) Bolt Holes, 90 deg C, Aluminum Alloy, Aluminum, 6.188 in L x 2.982 in W x 1.875 in H Dimensions

Features:

  • Versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Two set screws per wire hole ensure an exceptional connection
  • Electro tin plated for low contact resistance
  • Mounting hole spacing is NEMA 1-3/4 in

Applications:

Wire Termination Applications

Standards/Approval:

  • ARRA Compliant
  • Buy American Act Compliant
  • ANSI C119.4 Class A. AL9CU
  • PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Warranty:

1 Year

Attributes/Specifications

Color Aluminum
Conductor Size 500 to 1000 kcmil
Dimensions 6.188 in L x 2.982 in W x 1.875 in H
Material Aluminum Alloy
Number of Conductors 2
Series LL Series
Specifications 1-Pole, 2-Port, 1-3/4 in Mounting Hole Spacing, (4) Bolt Holes
Stud Size 1/2 in
Temperature Rating 90 deg C
Type Dual Rated Heavy Duty
Voltage Rating 600 V
Manufacturer NSI
