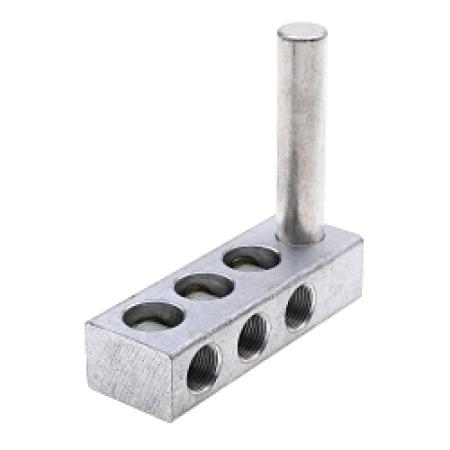

NSI Utilities Transformer Stud Connector, 600 V, TS Series

Product Data

KSCdirect Part #: NSI TS500-3
Description: Wire Range 500-4, 3 Conductors Stud Diam. 3/4", Stud Length 4 1/2"
MFG Part #: TS500-3
UPC: 662381023728
Supplier: NSI
Usually ships in 1-2 days.
You will be notified of any delay and may cancel at that time.

Your Price: $58.66 / EA

QTY:
For shipping rates, add item to cart.
* Quantity discounts may be available. Call Kelly Supply at 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.

Details

Description

NSI Utilities Transformer Stud Connector, Dual Rated Mechanical, Series: TS Series, Aluminum/Copper Conductor, 4 AWG to 500 kcmil Conductor, 600 V, Specifications: 3-Conductor/Port, 1-Pole, 5/16 in Bolt, 3/4 in Dia x 4-1/2 in L Stud, 90 deg C, Aluminum Alloy, Clear Plated, Aluminum, 5.79 in L x 1.13 in W x 1.63 in H Dimensions

Features:

  • Versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Clear plated for low contact resistance, stud is tin plated copper which provides low contact resistance for connection to transformer

Applications:

Wire Termination Applications

Standards/Approval:

  • ARRA Compliant
  • Buy American Act Compliant
  • ANSI C119.4 Class A
  • PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Attributes/Specifications

Color Aluminum
Conductor Size 4 AWG to 500 kcmil
Conductor Type Aluminum/Copper
Dimensions 5.79 in L x 1.13 in W x 1.63 in H
Finish Clear Plated
Material Aluminum Alloy
Series TS Series
Specifications 3-Conductor/Port, 1-Pole, 5/16 in Bolt, 3/4 in Dia x 4-1/2 in L Stud
Temperature Rating 90 deg C
Type Dual Rated Mechanical
Voltage Rating 600 V
Manufacturer NSI
