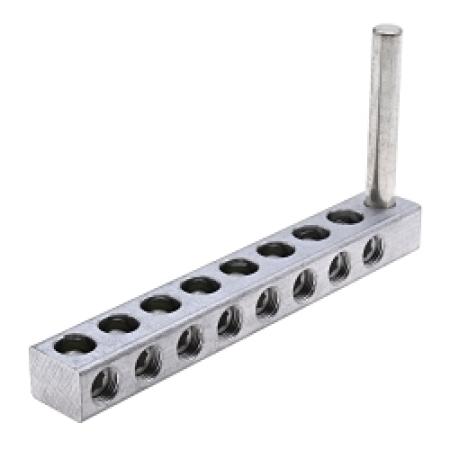

NSI Transformer Stud Connector, 8-Port, 6 AWG to 250 kcmil, 600 V AC

Product Data

KSCdirect Part #: NSI TS250-8
Description: Wire Range 250-6, 8 Conductors Stud Diam. 1/2", Stud Length 4"
MFG Part #: TS250-8
UPC: 662381023612
Supplier: NSI
Usually ships in 1-2 days.
You will be notified of any delay and may cancel at that time.

Your Price: $53.12 / EA

QTY:
For shipping rates, add item to cart.
* Quantity discounts may be available. Call Kelly Supply at 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.

Details

Description

NSI Transformer Stud Connector, 8-Port Dual Rated Mechanical, Series: TS Series, 6 AWG to 250 kcmil Conductor, 600 V AC, 8-Conductor, 1-Pole, 5/16 in Bolt Size, 1/2 in Dia x 4 in L Stud, 90 deg C, 6061-T6 Aluminum Alloy, Aluminum, Aluminum, 7.77 in L x 0.88 in W x 1.13 in H

Features:

  • Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Clear plated for low contact resistance, stud is tin plated copper which provides low contact resistance for connection to transformer
  • Hole configuration varies

Applications:

Wire Termination Applications

Standards/Approval:

  • ARRA Compliant
  • Buy American Act Compliant
  • ANSI C119.4 Class A

Attributes/Specifications

Color Aluminum
Conductor Size 6 AWG to 250 kcmil
Dimensions 7.77 in L x 0.88 in W x 1.13 in H
Finish Aluminum
Material 6061-T6 Aluminum Alloy
Series TS Series
Specifications 8-Conductor, 1-Pole, 5/16 in Bolt Size, 1/2 in Dia x 4 in L Stud
Temperature Rating 90 deg C
Type 8-Port Dual Rated Mechanical
Voltage Rating 600 V AC
Manufacturer NSI
