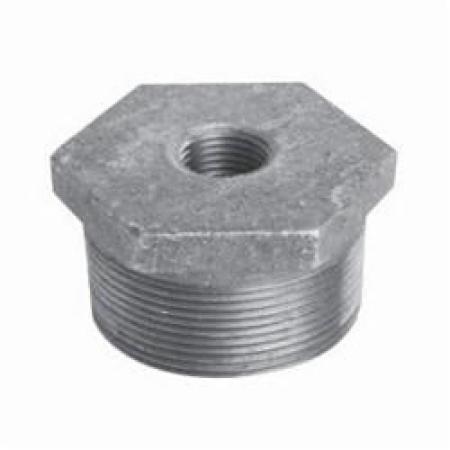

Anvil® Pipe Bushing, 3/8 x 1/4 in, FIG 383 Series

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 3/8 x 1/4 in Nominal, MNPT x FNPT End Style, 150/300 lb Pressure Class, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic

Features:

• Small Steel Fittings to ASME C1215


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 0.16 in H of head


• 0.4 in internal x 0.48 in L external thread


• 0.68 in W of head

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• ANSI B16.14/B1.20.1


• ASME B16.3/B1.20.1/B16.14


• ASTM A153/A197


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW P471

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black Oxide
Fitting/Connector Type	Bushing
Material	Cast Iron
Nominal Size	3/8 x 1/4 in
Pressure Class	150/300 lb
Pressure Rating	300 psi
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Type	Hex Head
Manufacturer	Anvil®
