CYL, 5 TON, 3-1/4" STROKE - Hydraulic Technologies USA LLC

Description

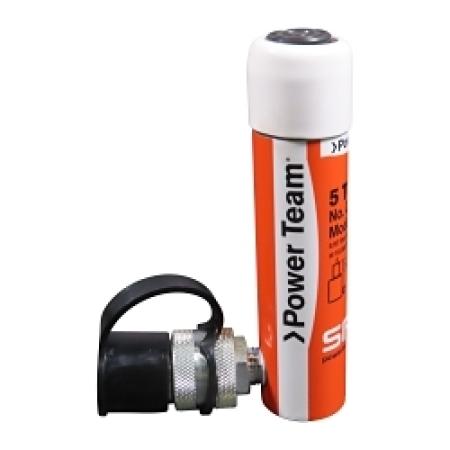

Power Team®, C53C, Hydraulic Cylinder, General Purpose High Quality Single Action, Series: C Series, 53 ton Capacity, 1-1/8 in Bore, 3-1/4 in Stroke Length, 6-1/2 in H Retract, Surface Mounting, 3/4 in Port, 1 in Rod Diameter, 10061 psi Pressure, Steel Housing Material, 1-1/2 in OD Dimensions

Features:

• Solid steel cylinder body for durability
• Base mounting holes standard on 5 through 55 ton cylinders
• Rugged and high quality general-purpose cylinder
• Aluminum bronze bearing reduces wear caused by off-center loads
• Maximum sized springs speed piston return and increase spring life
• Collar threads are standard on all C-series models, simplifying fixturing applications
• Removable rubber boots protect collar threads during transport and storage
• Chrome plated piston rod resists wear and corrosion
• A 3/8 in NPTF female half coupler is standard

Applications:

Lifting and Pressing Applications

Standards/Approval:

• ASME B30.1
• CE Certified
• ANSI

Bore Size	1-1/8 in
Capacity	53 ton
Dimensions	1-1/2 in OD
Housing Material	Steel
Mounting Type	Surface
Port Size	3/4 in
Pressure Rating	10061 psi
Retract	6-1/2 in H
Rod Diameter	1 in
Series	C Series
Stroke Length	3-1/4 in
Type	General Purpose High Quality Single Action
Manufacturer	Hydraulic Technologies USA LLC
