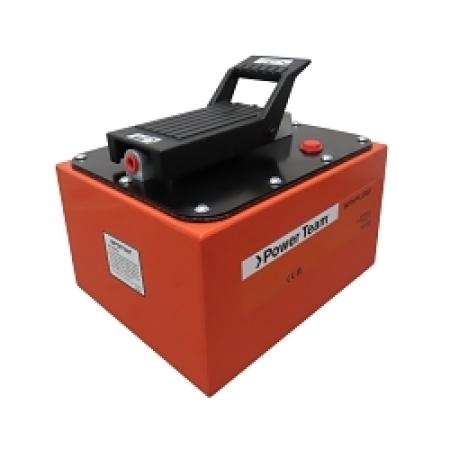

Power Team® Air Driven Hydraulic Pump, 1-Speed, PA6 Series

Description

Power Team® Hydraulic Pump, 1-Speed Air Driven, Series: PA6, 6 cu-in/min Oil Displacement, 3/8 in FNPT Fluid Port, 570 cu-in Oil, 40 to 120 psi Air, 85 dBA at 10000 psi Sound Level, 11-1/2 in Length, 9-1/2 in Width, 10 in Height

Features:

• Compact, lightweight and portable single speed pumps for driving single acting cylinders
• The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment
• Serviceable pump motor is not a throw away, providing economical repair
• Permanently vented reservoir cap
• Internal relief valve protects circuit components, air inlet filter protects motor
• Base model pump with high density polyethylene reservoir, has 2-1/2 gal metal reservoir

Air Pressure	40 to 120 psi
Fluid Port Size	3/8 in FNPT
Height	10 in
Length	11-1/2 in
Oil Capacity	570 cu-in
Oil Displacement Rating	6 cu-in/min
Series	PA6
Sound Level	85 dBA at 10000 psi
Type	1-Speed Air Driven
Width	9-1/2 in
Manufacturer	Power Team®
