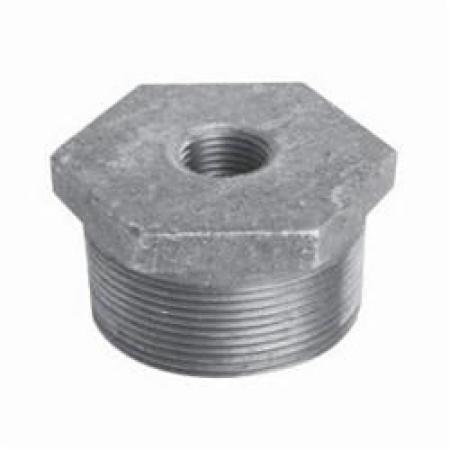

Anvil® Pipe Bushing, 2 x 1 in, Cast Iron

Description

Anvil® Pipe Bushing, Fitting/Connector Type: Bushing, 2 x 1 in Nominal, Cast Iron, Black Oxide, Domestic

Features:

• Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 1.95 in head width


• 0.41 in head height


• 0.58 in internal x 0.88 in external thread length


• Inside head

Standards/Approval:

• ANSI/ASME B16.14/B1.20.1


• ASTM A126/A153


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW P471

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black Oxide
Fitting/Connector Type	Bushing
Hex Size	1.95 in
Material	Cast Iron
Nominal Size	2 x 1 in
Pressure Class	125 lb
Pressure Rating	175 psi
Schedule Rating	SCH 40/STD
Temperature Rating	-20 to 150 deg F
Thickness	0.41 in
Type	Hex Head
Manufacturer	Anvil®
