Description

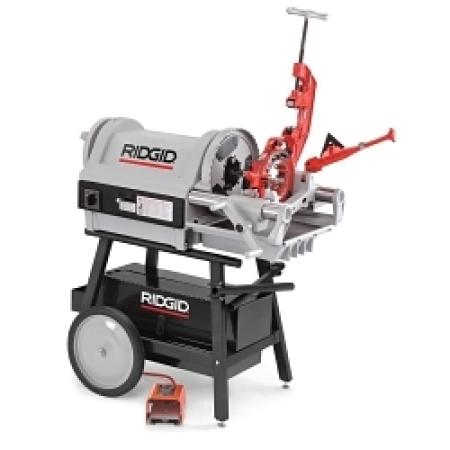

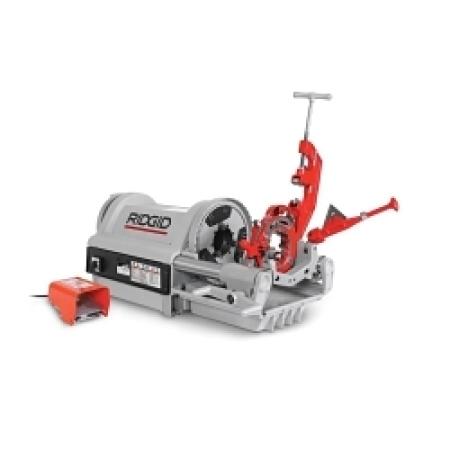

RIDGID® Threading Machine Kit, Kit, 1/2 to 4 in, 36/12 rpm, 1.5 hp, 120 VAC, 15 A, 1/4 to 2 in Bolt, 18-1/2 in Overall Length, 72-1/2 in Overall Width, Reversing: Yes, Polyethylene Housing, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control
Features:
- The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
- An induction motor helps minimize noise
- A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
- Constant and proper lubrication of dies and workpiece with through head oiling
- Two-speed gear box with a 3:1 ratio
- Hammer-type chuck with replaceable rocker action jaw inserts
- Cam action rear centering device
- Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
- Through die head oiling
- Versatility: threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
- Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
- Low voltage operation: special start/run capacitors allow operation in less than ideal conditions
Warranty:
Lifetime
