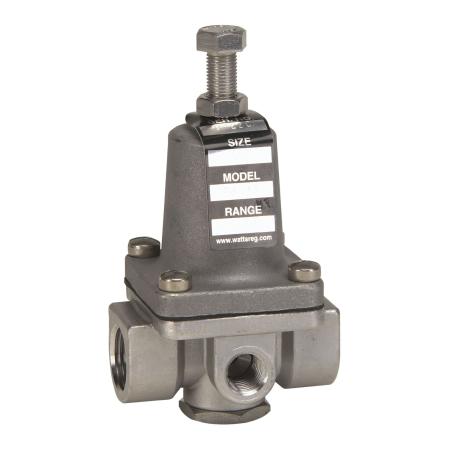

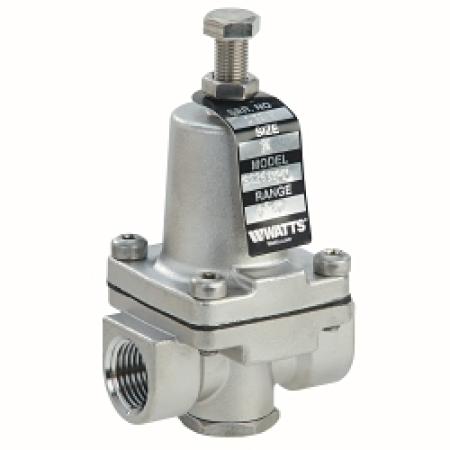

WATTS® Pressure Regulator, 3-Way Compact, 1/4 in FNPT, SS263AP

Product Data

KSCdirect Part #: WAT 0328094
Description: 1/4 SS263APM1 1-25
MFG Part #: 0328094
UPC: 098268928051
Supplier: WATTS®
Standard Pack: Order QTY must be in multiples of 12
Usually ships in 1-2 days.
You will be notified of any delay and may cancel at that time.

Your Price: $2059.64 / EA

QTY:
For shipping rates, add item to cart.
* Quantity discounts may be available. Call Kelly Supply at 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.

Details

Description

WATTS®, 0328094, Pressure Regulator, 3-Way Compact, Series: SS263AP, 1/4 in Nominal, FNPT End Style, 400 psi Pressure, 0 to 140 deg F, Media: Water, 316 Stainless Steel Body, Buna-N/Stainless Steel/FKM Trim, 4-3/4 in H Dimensions

Features:

  • Oversized orifice
  • NPT threaded female inlet and outlet connections
  • Rugged investment cast stainless steel body and cage
  • Temperature range is 33 F to 120 deg F (0.5 C to 49 deg C)
  • Maximum working pressure is 400 psi (27.6 bar)

Applications:

Commercial, Residential and OEM

Standards/Approval:

  • ASTM 351-CF8M

Warranty:

1 year

Attributes/Specifications

Body Material 316 Stainless Steel
Dimensions 4-3/4 in H
End Style FNPT
Media Water
Nominal Size 1/4 in
Pressure Rating 400 psi
Series SS263AP
Temperature Rating 0 to 140 deg F
Trim Material Buna-N/Stainless Steel/FKM
Type 3-Way Compact
Manufacturer WATTS®

Supplemental Files


Specification Sheet
