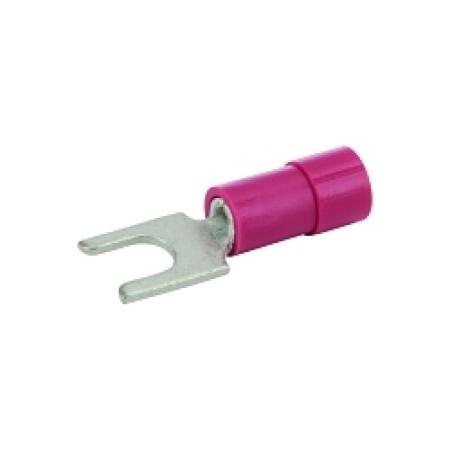

NSI Miniterms Spade Terminal, 22 to 18 AWG, Vinyl Insulated

Description

NSI Miniterms Spade Terminal, Series: S Series, 22 to 18 AWG Conductor, #6 Stud, 0.56 in Length, Butted Seam Barrel, 0.066 in ID x 0.161 in OD x 0.393 in L Barrel, Block Spade Tongue, 0.301 in W Tongue, 300 V, Specifications: 1-Terminal, Vinyl Insulated, 75 deg C, Copper, Electro-Plated Tin, Red

Features:

• Spades have similar tongue style to a spade, block spades have longer, flatter sides designed for use in terminal blocks

Applications:

Wire Termination Applications

Standards/Approval:

• ARRA Compliant
• Buy American Act Compliant
• cULus Listed

Barrel Size	0.066 in ID x 0.161 in OD x 0.393 in L
Barrel Type	Butted Seam
Color	Red
Conductor Size	22 to 18 AWG
Finish	Electro-Plated Tin
Length	0.56 in
Material	Copper
Series	S Series
Specifications	1-Terminal, Vinyl Insulated
Stud Size	#6
Temperature Rating	75 deg C
Tongue Size	0.301 in W
Tongue Type	Block Spade
Voltage Rating	300 V
Manufacturer	NSI
