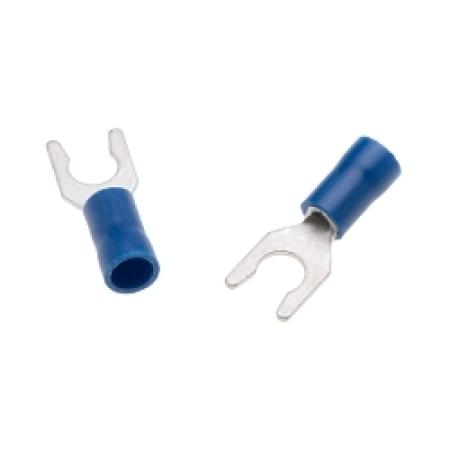

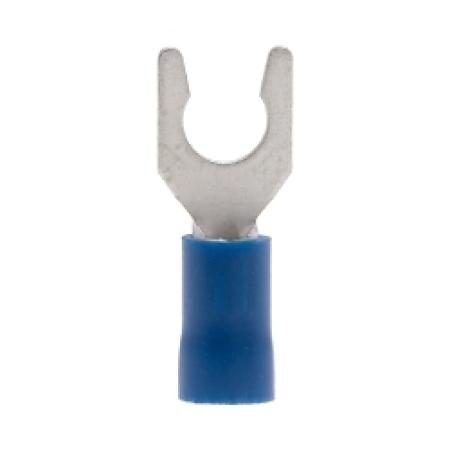

NSI Miniterms Spade Terminal, 16-14 AWG, 300 V, Blue

Description

NSI Miniterms Spade Terminal, Insulated, Series: S Series, 16 to 14 AWG Conductor, #10 Stud, 0.866 in Length, Butted Seam Barrel, Locking Spade Tongue, 0.335 in W Tongue, 300 V AC, Specifications: 1-Terminal Vinyl Insulation, 75 deg C, Copper, Electro-Plated Tin, Blue

Features:

• Tongue snaps around the screw and terminal is locked into place until the mounting screw can be tightened down

Applications:

Wire Termination Applications

Standards/Approval:

• cULus Listed

Barrel Type	Butted Seam
Color	Blue
Conductor Size	16 to 14 AWG
Finish	Electro-Plated Tin
Length	0.866 in
Material	Copper
Series	S Series
Specifications	1-Terminal Vinyl Insulation
Stud Size	#10
Temperature Rating	75 deg C
Tongue Size	0.335 in W
Tongue Type	Locking Spade
Type	Insulated
Voltage Rating	300 V AC
Manufacturer	NSI
