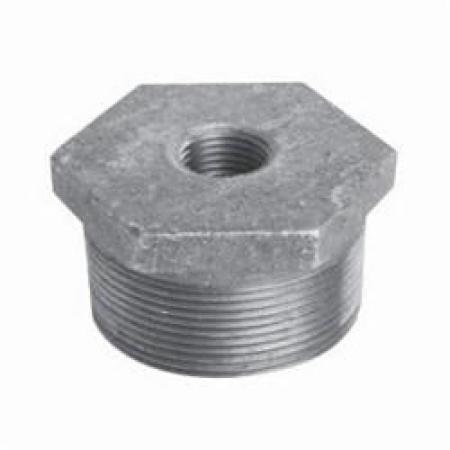

Pipe Bushing, 3 x 2 in, Hex Head, Anvil® FIG 383

Description

Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 3 x 2 in Nominal, MNPT x FNPT End Style, 150 lb Pressure Class, Cast Iron, Black, Domestic/Import: Domestic

Features:

• Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).


• Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs and bushings, clamps and more


• Accurate form, length and straightness on threads for easy engagement


• Chamfered openings for fast, easy engagement and assembly


• Precision machining


• Rust-Resistant coating


• 3.28 in head width


• 0.48 in head height


• 3/4 in internal x 1.13 in external thread length


• Outside head

Standards/Approval:

• ASME B16.3


• cULus Listed


• FM Approved


• NSF/ANSI 61


• ANSI/ASME B16.14/B1.20.1


• ASTM A126/A153


• FM Approved


• NSF 61-G


• UL/ULC Listed


• WW P471

Domestic/Import	Domestic
End Style	MNPT x FNPT
Finish	Black
Fitting/Connector Type	Bushing
Hex Size	3.28 in
Material	Cast Iron
Nominal Size	3 x 2 in
Pressure Class	150 lb
Pressure Rating	175 psi
Schedule Rating	SCH 40/STD
Series	FIG 383
Temperature Rating	-20 to 150 deg F
Thickness	0.48 in
Type	Hex Head
Manufacturer	Anvil(R)
