Description

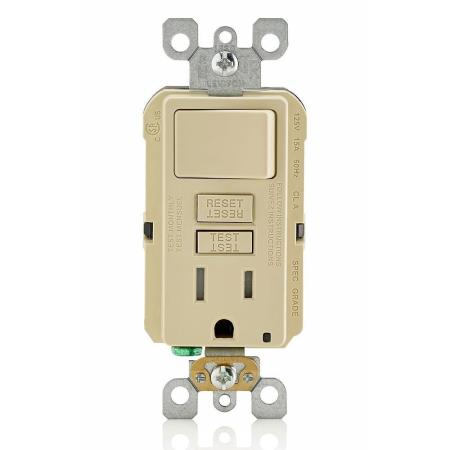

SmartlockPro® Combination Switch/Receptacle, GFCI, 15 A, 125 V AC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, NEMA 5-15R Enclosure, Wall Mounting, Self-Grounding Grounding Style, Screw Terminal, 1250 VAC Dielectric strength, Polycarbonate/Thermoplastic, Ivory, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
Features:
- Single receptacle GFCI with switch saves space and adds convenience
- Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 sec
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at a glance analysis
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options - back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Without wallplate/faceplate
Applications:
Commercial
Standards/Approval:
- PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
2 Years
