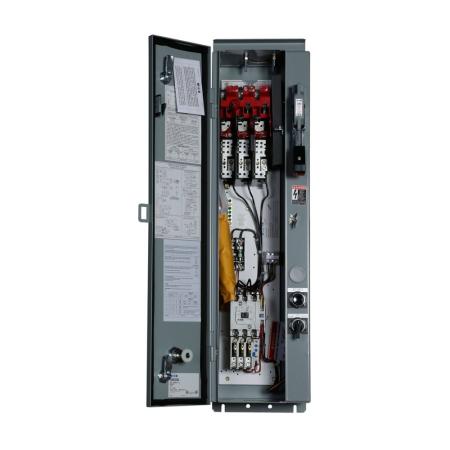

EATON Pump Panel, 600 V AC, 30 A, Freedom Series, Rainproof

Description

EATON Pump Panel, Fusible Disconnect Rainproof Standard Width, Series: Freedom, 600 V AC, 30 A, 50/60 Hz Frequency, 440/460 VAC Coil, 3 ph, SZ 1 Size, Auto/Hand/Off Action, Solid-State Overload Relay, NEMA 3R Enclosure, Steel, 8.47 in L x 18.86 in W x 38.4 in H Dimensions

Features:

• Long life, heavy duty, quick-acting, double break action motor circuit switch
• Adjustable magnetic trip characteristic for accurate, dependable fault protection and simultaneous trip of all poles to prevent single phasing
• Freedom overload relays with trip indication feature bi-metallic type operation with ambient compensation and a choice of either manual or automatic reset
• Hand/Off/Auto selector switch and start pushbutton
• Padlocking provision on door latch for locking door closed as well as provision for padlocking disconnect switch in Off position
• Type R fuse clip
• NEMA Size 1

Applications:

Industrial Facilities, Factories - Motor and Power Control Equipment Applications

Standards/Approval:

• UL Listed,cUL Listed,OSHPD Certified

Action	Auto/Hand/Off
Amperage Rating	30 A
Coil Voltage	440/460 V AC
Dimensions	8.47 in L x 18.86 in W x 38.4 in H
Enclosure Type	NEMA 3R
Frequency Rating	50/60 Hz
Material	Steel
Overload Relay	Solid-State
Phase	3
Series	Freedom
Size	SZ 1
Type	Fusible Disconnect Rainproof Standard Width
Voltage Rating	600 V AC
Manufacturer	EATON
