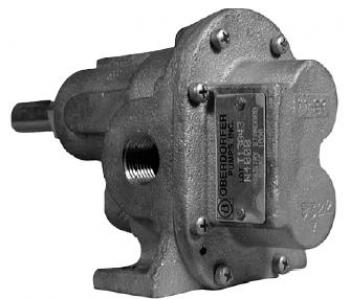

Oberdorfer Bronze Pedestal Rotary Gear Pump - 1/2" NPT Ports
FEATURES
♦ Bronze Corrosion Resistant Castings
♦ Special Cast Bronze Gears
♦ Stainless Steel Shafts & Fasteners
♦ Formed Ring Seal Packing (Lip & Mechanical Seals on Special Order)
♦ Heavy Duty Carbon Bearings (Self Lubricating)
♦ Positive Displacement Flow
Keywords: OBERDO OBE N4000 OBERDORFER PUMP DIVISION OBERDO00065 Oberdorfer Bronze Pedestal Rotary Gear Pump - 1/2 NPT Ports
Category: [0] => PUMPS => BRONZE GEAR PUMPS
[1] => SUPPLIER DIRECTORY => OBERDORFER PUMP DIVISION => PUMPS => BRONZE GEAR PUMPS
Kelly Legacy Part Number: 1166054
Kelly Catalog Sheet Bronze Rubber Impeller
Capacity - Gallons of Water Per Minute 60F Pump
Pump Speed HP* FT. 0 10 20 30 40 50 60 70
All Bronze with Stainless No. RPM Hd.
Steel Shafts PSI 0 4.3 8.7 13.0 17.3 21.6 26 30
Positive Lip Seal 22 800 1/3 ---- 4.5 4.0 3.5 3.0 2.5 1.8 ---- ----
Clean or Contaminated 22 1725 1/3 ---- 9.5 9.0 8.0 7.5 6.3 5.5 4.2 3.5
Liquids ----
21 800 1/4 ---- 2.5 2.3 2.0 1.3 .5 ---- ---- ----
Quiet 21 1725 1/4 ---- 6.0 5.5 5.0 4.2 3.5 2.8 2.0 1.0
Reversible Rotation 23 800
----
1/2 ---- 8.5 8.0 7.3 6.8 6.0 5.3 4.5 3.5
Impeller Replacement
23 1725 3/4 ---- 18.0 16.5 15.2 14.1 13.0 12.0 10.7 9.5
Simple Economical
* High starting torque motor
For low pressure purposes of all kinds with clean or GPM = Gallons Per Minute FT.HD. = Feet Head Pressure
RPM = Revolutions Per Minute HP = Horsepower
contaminated liquids not affecting neoprene impeller. PSI = Lbs. Per Square Inch Pressure
Self-priming to 15 feet.
Pump Stock Size Max. Dimensions
No. No. Inches
Height Width Length
21 1166001 1/2 4-13/32 4 4-7/8
22 3/4 4-13/32 1-1/4 5-3/8
23 ---- 1 5-3/4 4-1/4 6-5/8
Pumps & Water Well
Bronze Rotary Gear Pump
Capacity - Gallons of Water Per Minute 60F
Features: Pump Speed FT. 0 46 92 138 184 231 290 346
Bronze Corrosion Resistant Castings No. RPM Hd.
Special Cast Bronze Gears PSI 0 20 40 60 80 100 125* 150*
Stainless Steel Shafts & Fasteners GPM 2.10 1.98 1.86 1.74 1.62 1.50 1.35 1.20
Formed Ring Seal Packing (Lip & Mechanical Seals on 1000 1725 HP .05 .09 .14 .19 .23 .28 .34 .39
Special Order) Motor 1/6 1/6 1/6 1/4 1./4 1/3 1/3 1/2
Positive Displacement GPM 4.07 3.86 3.65 3.44 3.23 3.03 2.80 2.50
2000 1725 HP .10 .14 .20 .29 .37 .43 .56 .68
Motor 1/6 1/6 1/4 1/3 1/2 1/2 3/4 3/4
GPM 7.25 7.00 6.75 6.50 6.25 6.00 5.75 5.50
3000 1725 HP .38 .50 .65 .80 .95 1.10 1.25 1.40
Motor 1/3 1/2 3/4 1 1 1 1-1/2 1-1/2
GPM 10.56 10.33 10.10 9.85 9.63 9.42 9.20 9.00
4000 1725 HP .50 .75 .90 1.20 1.50 1.75 2.00 2.32
Motor 1/2 3/4 1 1-1/2 1-1/2 2 2 3
GPM 19.85 19.48 19.11 18.74 18.37 18.00 17.7 17.40
For intermittent, positve displacement service. Corrosion- 7000 1725 HP .80 1.10 1.42 1.85 2.18 2.65 3.00 3.60
resistant bronze housing and gears; precision-finished Motor 1 1 1-1/2 2 2-1/2 3 3 5
stainless steel shafts, grease fittings for periodic lubrication. GPM 23.33 22.93 22.52 22.11 21.71 21.30 20.50 20.10
9000 1725 HP .90 1.19 1.53 1.92 2.25 2.70 3.15 3.70
Close tolerances for long life and low liquid transfer costs. Motor 1 1-1/2 1-1/2 2 3 3 3 5
Without Bypass With Bypass Overall Dimensions
Ft. Hd. = Feet Head Pressure
Base to HP = Actual Horsepower
Pump Stock Pump Stock Center Line Motor = Convenient Fractional Sizes
No. No. No. No. Size Height of Shaft Width GPM = Gallons Per Minute
1000 1000 BR 1/4 2-7/8 1-7/8 2-1/2 PSI = Lbs. Per Square Inch Pressure
2000 ---- 2000 BR 1166058 1/4 3-9/16 2-23/64 3 Ft. Hd. = Equivalent Pressure in Feet of Water
3000 3000 BR 3/8 4 2-5/8 3-3/4 RPM = Revolutions Per Minute
4000 4000 BR 1/2 4 2-5/8 3-3/4 *Consult Factory For Pressures Over 100 PSI.
7000 B 1166055 7000 BR 3/4 5-1/4 3-9/16 4
9000 B 1166056 9000 BR 1166062 1 5-1/4 3-9/16 4
