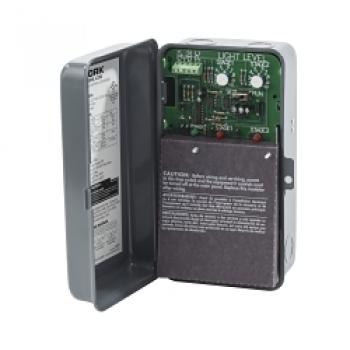

LC200 SERIES LC200
USER SETTABLE LIGHT LEVEL/ LC200M
TIME OF DAY OPERATION OF
2 LIGHTING ZONES
The LC200 consists of an electronic control and an electronic light sensor interacting. The
unit offers separate control of two lighting zones, each with user settable light level setpoints.
The Electronic control also offers two digital inputs which will accept a contact closure from
any Tork Timer(s), or existing EMS system to provide for independent Time-of-Day override.
APPLICATIONS
Use to control two different outdoor lighting circuits utilizing the one photocell. Sign lighting
can turn on at one ambient light level while parking lot lighting turns on at a different light
level.
Use to control two different indoor lighting circuits. During the rst stage when ambient
light drops partially, a limited amount of electrical lights turns on. During the second stage
when ambient light drops signicantly, additional electrical lighting turns on.
Use in conjunction with a time switch for photo-cell ON of 2 different lighting circuits at dif-
ferent ambient light levels, then time-of-day OFF.
FOR USE IN:
Retail Stores Building Perimeters
Warehouses Show windows
Schools Ofces PHOTOSENSOR
24 hour convenience stores Atriums MODEL EPC1 IS
SUPPLIED WITH
Open wall parking structures Factories EACH UNIT
Walkways Hotel Grounds
CATALOG UPC INPUT DRY CONTACTS
FEATURES NO CODE 50/60H Z (UNPOWERED)
Single electronic LIGHT SENSOR with swivel
(Model EPC-1) which can be mounted LC200 82111 unit & enclosure 120/240/277 SPDT
up to 1000 feet from controller. LC200M 82113 unit only 120/240/277 SPDT
DUAL OUTPUTS with independent turn-ON
adjustment from 2 to 100 footcandles.
Turn-ON to turn-OFF ratio is 1:2. CONTACT
LC200 SERIES RATINGS
TOD2
TOD1
Two independent TIME-OF-DAY INPUTS.
C
30 SECOND DELAY on start-up. TYPE VOLTAGE NO RATING NC
EPC1
TOD2
TOD1
LIGHT LEVEL
EPC
C
Ballast 120VAC 20A 10A STAGE 1 STAGE 2
POWER-ON status indicator and LOAD STATUS indication 3
4
5 6
7
8 3
4
5 6
7
8
240/277VAC 6A 3A 2 9 2 9
for each load.
1 10 1 10
Tungsten 120/240/277VAC 5A 3A
SET RUN
CONTROLS TWO DIFFERENT LIGHTING CIRCUITS: During rst stage when Resistive 120/240VAC 20A 10A
ambient light drops pratially, a limited amount of electrical lights 277VAC 12A POWER STAGE 1 STAGE 2
turn on. During the second stage when ambient light drops sig- Pilot Duty 120/240VAC 470VA 275VA
nicantly, additional electrical lighting turns on. 277VAC 690VA
For 120 VAC
Can be used IN CONJUNCTION WITH A TIME SWITCH for Operation NEUT 120V240V 277V C NO NC C NO NC
photocell ON of two different lighting circuits at different WHITE
LINE INPUT OUTPUT 1 OUTPUT 2
ambient light levels, then time-of-day OFF. N
WIRING DIAGRAM H
BLACK
LOAD 1
SPECIFICATIONS
TOD2
TOD1
LOAD 2
C
POWER CONSUMPTION: 5VA max.
EPC1
TOD2
TOD1
LIGHT LEVEL
EPC
C
OPERATING TEMPERATURE: - 40 to +140F (- 40 to +60C.) For 240 VAC
STAGE 1 STAGE 2
5 6 5 6
4 7 4 7
3 8 3 8
Operation
ENCLOSURE: General Purpose NEMA 1 drawn steel, beige
2 9 2 9 NEUT 120V240V 277V C NO NC C NO NC
1 10 1 10
LINE INPUT OUTPUT 1 OUTPUT 2
SET RUN
RED
enamel with combination 12 and 34 KOs on top, H
H
BLACK
bottom and back. Lockable hasp. POWER STAGE 1 STAGE 2 LOAD 1
LOAD 2
For 120 VAC For 277 VAC
SPECIFICATION WRITERS GUIDE LC200 SERIES Operation NEUT 120V240V 277V C NO NC C NO NC
Operation NEUT 120V240V 277V C NO NC C NO NC
Furnish and install an electronic light sensor and control with dual outputs for two light- LINE INPUT OUTPUT 1 OUTPUT 2 LINE INPUT OUTPUT 1 OUTPUT 2
ing zones. Each output shall be capable of a different user settable turn-ON light level N
WHITE
N
WHITE
setpoint from 2 to 100 footcandles. Turn-ON to turn-OFF ratio shall be 1:2. Controller H
BLACK
H
ORANGE
shall also offer two digital inputs which can accept a contact closure from an independ-
LOAD 1 LOAD 1
ent time switch or EMS system, thereby allowing for independent time of day control.
LOAD 2 LOAD 2
For 240 VAC
Operation NEUT 120V240V 277V C NO NC C NO NC
LINE INPUT OUTPUT 1 OUTPUT 2
RED
H
H
BLACK
