INTERMATIC ADAPTER PLATE
NSI / Tork Electrical, Lighting Pool & Spa Products and Replacement Parts
1100 SERIES
24 HOUR
TIME SWITCHES
SAME ON/OFF TIMES
EACH DAY
APPLICATIONS
Automatic ON-OFF control when operation is
required at thesame time every day, 7 days a
week.
Lighting
Pumps 1101
Signs
Air Conditioning
Water Heating
Fans
SPECIFICATIONS
CONTACT RATINGS:
(all models except 1101-7):
40 Amp. Tungsten, 120VAC
40 Amp. Resistive, 120-277VAC
Single Phase
40 Amp. General Purpose
120-277 VAC Single Phase
20 Amp. Inductive 120VAC, 277VAC,
Single Phase
1000 VA Pilot Duty 120-277 VAC.
2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC
Model 1101-7 is 30 amp inductive, 347 VAC only
1101 NC
TIMING MOTOR: Heavy duty synchronous, self-starting WITH CLEAR
high torque. Power Consumption: 3 watts. LEXAN COVER
AUTOMATIC OPERATION: Minimum ON setting: 20 minutes.
Minimum OFF setting: 75 minutes. One pair of ON-OFF
trippers supplied accommodates up to 12 pairs.
Dial markings are in English, French and Spanish.
TEMPORARY MANUAL OVERRIDE: Standard.
OPERATING TEMPERATURE RANGE: 40 to +165F.(40 to +74C.)
ENCLOSURE: See page 27 for dimensions. Metal Indoor (NEMA 1). Drawn steel, beige enamel, with combination 12 and
3
4 K.O.s on sides, bottom and back. Lockable hasp. Cover is removable and movement releases from case at nger
touch for easy installation. Back has keyhole as well as matching screw holes for quick mounting over single gang box.
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number.
Noryl Indoor/Outdoor NEMA 3R: Models with sufx N. Enclosure only: Model 9000N*
Noryl Indoor/Outdoor NEMA 3R with clear cover: Models with sufx NC. Enclosure only: Model 9000NC*
Metal Indoor/Outdoor NEMA 3: Models with sufx O. Enclosure only: Model 9000A*
Metal Flush, with lock and key: (sufx FL 1). Enclosure only: Model 9001*
Metal Duplex 2 standard units in one indoor/outdoor case: (sufx DUOL). Enclosure only: Model 9004L*
Bracket mounting specify mechanism only with bracket

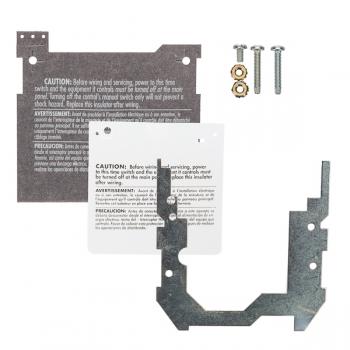

Intermatic Adapter Plate Model IAPallows any TORK 1100 model
to t into an Intermatic case without changing enclosure.
2
A DIVISION OF NSi INDUSTRIES, LLC
CAT UPC H.P. MOTOR: MOTOR: MOTOR:
NO CODE ENCLOSURE TYPE SWITCH AMPS RATING AC VOLTAGE Hz PART #
1101 10011 Metal Indoor SPST 40 2 120 60 101
*1101-7 10033 Metal Indoor SPST 30 347 60 201
1102 10012 Metal Indoor SPST 40 5 208-277 60 201
1103 10013 Metal Indoor DPST 40 2 120 60 101
1104 10014 Metal Indoor DPST 40 5 208-277 60 201
1101-N 10040 Noryl Indoor/Outdoor (I/O) SPST 40 2 120 60 101
1101NC 10053 Noryl I/O with Clear Lexan Cover SPST 40 2 120 60 101
1102-N 10045 Noryl Indoor/Outdoor SPST 40 5 208-277 60 201
1103-N 10041 Noryl Indoor/Outdoor DPST 40 2 120 60 101
1103NC 10054 Noryl I/O with Clear Lexan Cover DPST 40 2 120 60 101
1104-N 10042 Noryl Indoor/Outdoor DPST 40 5 208-277 60 201
1104NC 10055 Noryl I/O with Clear Lexan Cover
DPST 40 5 208-277 60 201
1101-O 10015 Metal Outdoor SPST 40 2 120 60 101
1102-O 10046 Metal Outdoor SPST 40 5 208-277 60 201
1103-O 10016 Metal Outdoor DPST 40 2 120 60 101
1104-O 10017 Metal Outdoor DPST 40 5 208-277 60 201
1101-M 10022 Mechanism Only SPST 40 2 120 60 101
1101-M-IAP 10052 Mechanism Only SPST 40 2 120 60 101
1102-M 10035 Mechanism Only SPST 40 5 208-277 60 201
1103-M 10023 Mechanism Only DPST 40 2 120 60 101
1104-M 10014 Mechanism Only DPST 40 5 208-277 60 201
CONVERSION NOTE: ORDER ZKIT: Astronomic kit for eld conversion of TORK 7000 and 1100 SERIES
*CSA Only
Includes adapter plate to t Intermatic enclosure.
Reserve Power is not available in this series.
WIRING DIAGRAMS
1101 & 1102 (SPST) 1103 (DPST)
M M
Removable
L 1 X 2
Bridge
L 1 X 2
H LOAD H
N N LOADS
For separate motor terminals H
remove bridge from terminals 1 & L.
M M
1104 (DPST) (Both)
Must be
L 1 X 2 same phase L 1 X 2
H
H
LOAD H LOAD LOAD
H
TYPICAL FOR N
240V SUPPLY TYPICAL FOR Typical for double pole
277V SUPPLY Cut motor lead at 1
SPECIFICATION WRITERS GUIDE 1100 SERIES
Furnish and install where shown a TORK Time Switch with 24 hour dial. The Time Switch shall be powered by a self-starting synchronous motor. Time Switch contacts shall
be capable of switching 40 amperes per pole continuously at 277 volts and shall be SPST (DPST, SPDT, as required). Removable ON-OFF trippers shall make possible auto-
matic operation with a minimum ON period of 20 minutes and a minimum of 2 hours between one OFF period and the next. Enclosure shall be NEMA 1 surface type, n-
ished in beige enamel, with combination 1/2, 3/4 knockouts on bottom, both sides and back. Provision shall be made for positive padlocking. Terminals shall be capa-
ble of receiving #8 AWG wire. Time Switch shall be TORK Model 11_ _ (11_ __, etc, to t requirement).
Lexan is a registered trademark of the General Electric Co.
3
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
7000 SERIES
24 HOUR
TIME SWITCHES
WITH SKIP-A-DAY FEATURE
RESERVE POWER OPTIONAL
APPLICATIONS
Automatic ON-OFF control when operation is required at the same time every
day, with optional versatility of one to six days omission.
Lighting Heating Pumps
Air Conditioning Signs
SPECIFICATIONS
CONTACT RATINGS:
40 Amp. Tungsten, 120 VAC
40 Amp. Resistive, 120-277 VAC Single Phase
40 Amp. General Purpose, 120-277 VAC Single Phase
20 Amp. Inductive 120 VAC, 277 VAC Single Phase
1000 VA Pilot Duty 120-277 VAC.
2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC
TIMING MOTOR: Heavy duty synchronous self-starting high torque. Power Consumption: 3 watts.
OPTIONAL RESERVE POWER: Keeps dial on time up to 16 hours during power outage.
Add sufx L to model number. Power Consumption: 5 watts.
AUTOMATIC OPERATION: Minimum ON setting: 20 minutes. Minimum OFF
setting: 75 minutes. One pair of ON-OFF trippers supplied accommodates
up to 12 pairs. Dial markings are in English, French and Spanish.
OMITTING DEVICE: 7-spoke wheel marked with days of week 3 omitting screws (P-14) supplied.
TEMPORARY MANUAL OVERRIDE: Standard.
OPERATING TEMPERATURE RANGE: -40 to +165F. (-40 to +74C.)
ENCLOSURE: See page 27 for dimensions. General purpose (NEMA 1). Drawn steel, beige enamel, with combination 12
and 34 K.O.s on sides, bottom and back. Lockable hasp. Removable cover provides exceptional accessibility for wiring
and setting. Mechanism releases from case at nger touch for easy installation, (except 3 Pole Models which include
metal indoor/outdoor case as standard).
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number.
Noryl Indoor/Outdoor NEMA 3R: (sufx N) Model 9000N*
Metal Indoor/Outdoor NEMA 3: (sufx O) Model 9000A*
Flush, with lock and key: (sufx FL1) Model 9001*
Flush, with lock and key, NEMA 1B for 3 pole: (sufx FL2) Model 9002*
Duplex 2 standard units in one indoor/outdoor NEMA 3 metal
case except 3 pole: (sufx DUOL) Model 9004L*
Bracket mounting specify mechanism only with bracket.
Intermatic Adapter Plate Model IAP allows any TORK 7000 model
to t into an Intermatic case without changing enclosure
4
A DIVISION OF NSi INDUSTRIES, LLC
1100 SERIES
SWIMMING POOL TIME SWITCHES
1 AND 2 CIRCUIT, 24 HOUR DIAL
APPLICATIONS
Automatic ON-OFF control of swimming pool pumping systems with
or without water heaters. Two units in one case allow for addition of
lighting control, or automatic pool sweep ON. Models with FM
sufx contain low voltage secondary circuit to turn OFF water heater
thermostat 20-30 minutes before standard voltage main circuit turns
OFF pump. This allows for slow cooling of heater coils, preventing
sudden steam build-up and knocking, thereby prolonging heater life.
SPECIFICATIONS
CONTACT RATINGS:
40 Amp. Tungsten, 120 VAC
40 Amp. Resistive, 120-277 VAC Single Phase
40 Amp. General Purpose, 120-277 VAC
Single Phase
20 Amp. Inductive 120 VAC, 277 VAC Single Phase
1000 VA Pilot Duty, 120-277 VAC.
2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240VAC
WATER HEATER CIRCUIT: 760VA, 24V
TIMING MOTOR: Heavy duty synchronous, self-start-
ing high torque. Power Consumption: 3 watts
AUTOMATIC OPERATION: Models with FM sufx
Include one pair of permanent type ON-OFF trip-
pers. Can accommodate up to 3 pairs. Minimum
ON setting, 45 minutes. Minimum OFF setting, 90
minutes. All other models include 1 pair of ON-OFF
trippers can accommodate up to 12 pairs.
Minimum ON setting, 20 minutes. Minimum OFF CAT UPC H.P. MOTOR:
setting, 75 minutes. Dial markings in English, NO CODE ENCLOSURE TYPE SWITCH RATING AC VOLTAGE
French & Spanish. 1101 10011 Metal Indoor SPST 2 120
1103 10013 Metal Indoor DPST 2 120
TEMPORARY MANUAL OVERRIDE: Standard. 1104 10014 Metal Indoor DPST 5 208-277
1101 FM 10018 Metal Indoor SPST 2 120
OPERATING TEMPERATURE RANGE: -40 to +165F. (- 1104 FM 10020 Metal Indoor DPST 5 208-277
40 to +74C.) 1101 FM N 10043 Noryl Indoor/Outdoor SPST 2 120
1104 FM N 10044 Noryl Indoor/Outdoor DPST 5 208-277
ENCLOSURE: See page 27 for dimensions. Metal
Indoor (NEMA 1). Drawn steel, beige enamel, 1101-O 10015 Metal Outdoor SPST 2 120
with combination 12and 34 K.O.s on sides, bot- 1103-O 10016 Metal Outdoor DPST 2 120
tom and back. Lockable hasp. Cover is remove- 1104-O 10017 Metal Outdoor DPST 5 208-277
able and movement releases from case at nger 1101 FM-O 10019 Metal Outdoor SPST 2 120
touch for easy installation. Back has keyhole as 1104 FM-O 10021 Metal Outdoor DPST 5 208-277
well as matching screw holes for easy mounting 1101 M 10022 Mechanism Only SPST 2 120
over single gang box. 1103 M 10023 Mechanism Only DPST 2 120
1104 M 10024 Mechanism Only DPST 5 208-277
OTHER MOUNTINGS: *When ordering special enclo- 1101 FM M 10025 Mechanism Only SPST 2 120
sures ONLY, please use model number. 1104 FM M 10026 Mechanism Only DPST 5 208-277
Noryl Indoor/Outdoor NEMA 3R: (sufx N) Contains
Model 9000N* 1101 D 10028 Two units in metal indoor /outdoor 2 each 1101
Metal Indoor/Outdoor NEMA 3: (sufx O) 1114 D 10030 Two units in metal indoor /outdoor 1 each 1101, 1 each 1104
Model 9000A* (hinged side) 1104 D 10029 Two units in metal indoor /outdoor 2 each 1104
Duplex: 2 units in one indoor/outdoor NEMA 3 1101 DF 10027 Two units in metal indoor /outdoo 1 each 1101, 1 each 1101 FM
metal case (sufx DUOL) Model 9004L* 1114 DF 10030 Two units in metal indoor /outdoor 1 each 1101, 1 each 1104 FM
Bracket mounting specify mechanism only 1104 DF 10032 Two units in metal indoor /outdoor 1 each 1104, 1 each 1104 FM
with bracket. FM MODELS CONTAIN LOW VOLTAGE POOL HEATER THERMOSTAT SWITCH
Intermatic Adapter Plate Model IAP allows any Reserve Power is not available in this series.
TORK 1100 model to t into an Intermatic
case without changing enclosure
6
A DIVISION OF NSi INDUSTRIES, LLC
7000Z SERIES
ASTRONOMIC TIME SWITCHES
WITH SKIP-A-DAY FEATURE
RESERVE POWER OPTIONAL
APPLICATIONS
Automatic ON at dusk/OFF at dawn control of outdoor lighting.
Parking Lots Walkways
Outside Signs Show Windows
Canopy Lighting Landscape Lighting
SPECIFICATIONS
CONTACT RATINGS:
40 Amp. Tungsten, 120 VAC
40 Amp. Resistive, 120-277 VAC Single Phase
40 Amp. General Purpose, 120-277 VAC Single Phase
20 Amp. Inductive 120 VAC, 277 VAC Single Phase
1000 VA Pilot Duty 120-277 VAC.
2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC
TIMING MOTOR: Heavy duty synchronous self-starting high torque.
Power Consumption: 3 watts.
OPTIONAL RESERVE POWER: Keeps dial on time up to 16 hours during power outage.
Add sufx L to model number. Power Consumption: 5 watts.
AUTOMATIC OPERATION: ON at sunset can be set 20 or 40 minutes before or after normal sunset, to adapt to local area.
OFF at sunrise or can be set from 8:30PM to 2:30AM in half-hour increments. No resetting required for seasonal
changes, as trippers automatically follow the seasons.
OMITTING DEVICE: 7-spoke wheel marked with days of week 3 omitting screws (P-14) supplied.
TEMPORARY MANUAL OVERRIDE: Standard.
OPERATING TEMPERATURE RANGE: -40 to +165F. (-40 to +74C.)
INSTRUCTIONS: English, French and Spanish
ENCLOSURE: See page 27 for dimensions. Indoor/Outdoor Noryl enclosure (NEMA 3R) is standard on all (except 3 Pole
Models which include metal indoor/outdoor case as standard). Lockable hasp. Removable cover provides exception-
al accessibility for wiring and setting. Mechanism releases from case at nger touch for easy installation. Optional Metal
enclosure available in all models.
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number.
Flush, with lock and key (sufx FL1) Model 9001*
Flush, with lock and key, NEMA 1B for 3 pole (sufx FL2) Model 9002*
Bracket mounting specify mechanism only with bracket.
Model IAPIntermatic Adapter Plate allows any TORK 7000Z Model (SPST, SPDT or DPST) to t into an
Intermatic case without necessity of changing the enclosure.
8
A DIVISION OF NSi INDUSTRIES, LLC
8000 SERIES
DUTY CYCLE 24 HOUR TIME
SWITCHES
MANY ON/OFF OPERATIONS PER DAY
APPLICATIONS
For one to many daily ON-OFF operations
Duty Cycling Pumping Process Control
Ventilating Fans Irrigation Laboratory
Experiments
SPECIFICATIONS
CONTACT RATINGS: 20 Amps at 120 or 240V, 5 Amps at 480V,
3
4 HP @120V AC
TIMING MOTOR: Heavy duty synchronous, self-starting, high torque.
Power Consumption: 3 watts.
OPTIONAL RESERVE POWER: Keeps dial on time up to 16 hours during power
outage. Add sufx L to model number. Power Consumption: 5 watts.
DIAL: Captivated tabs for setting are easily tilted in or out by hand.
Switch stays ON or OFF as set when adjacent tabs are set alike.
1 TO 48 ON-OFF OPERATIONS PER DAY.
96 tabs permit 15 minute switching changes.
DUTY CYCLES adjustable from 12, 1, 2, 3, 4, 6, 12 and 24 hours.
OPERATING TEMPERATURE RANGE: -40 to +165F. (-40 to +74C.)
ENCLOSURE: See page 27 for dimensions. General purpose (NEMA 1). Drawn steel, beige enamel, with combination 12and
3
4 K.O.s on sides, bottom and back. Lockable hasp. Cover is removable and movement releases from case at nger touch
for easy installation.
WIRING DIAGRAM
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number. ALL SPDT M
Noryl Indoor/Outdoor NEMA 3R: (sufx N) Model 9000N* MODELS
Metal Indoor/Outdoor NEMA 3: (sufx O) Model 9000A*
Flush, with lock and key: (sufx FL1) Model 9001*
Duplex 2 standard units in one indoor/outdoor NEMA 3 metal L
C NC NO
2
case: (sufx DUOL) Model 9004L* H LOAD 2
Bracket mounting specify mechanism only with bracket. 120VAC
CLOSED WITH
TAB OUTWARD
Intermatic Adapter Plate Model IAP allows any TORK 8000 model to N LOAD 1
t into an Intermatic case without changing enclosure CLOSED WITH
TAB INWARD
CAT UPC H.P. MOTOR: MOTOR:
NO CODE SWITCH TYPE AMPS RATING AC VOLTAGE Hz
8001 70001 SPDT 24 Hour 20 3
4 120 60
8004 70002 SPDT 24 Hour 20 3
4 208-277 60
8001U 70003 SPDT 24 Hour 5 3
4 480/120 Trans. 60
8007 70005 SPDT 24 Hour, 7 Day Omit 20 3
4 120 60
8008 70006 SPDT 24 Hour, 7 Day Omit 20 3
4 208-277 60
8007V 70007 SPDT 24 Hour, 14 Day Omit 20 3
4 120 60
WITH RESERVE POWER
8007L 70015 SPDT 24 Hour, 7 Day Omit 20 3/4 120 60
8008L 70016 SPDT 24 Hour, 7 Day Omit 20 3/4 208-277 60
8007VL 70017 SPDT 24 Hour, 14 Day Omit 20 3/4 120 60
24 VOLT IN ALL MODELS AVAILABLE ON SPECIFICATION.
SPECIFICATION WRITERS GUIDE 8000 SERIES
The time switches shall be of duty cycle type, capable of programming at 15-minute intervals of the day. Schedule tabs shall be captive on the dial, and shall be easily set
by hand without tools to obtain or to change the desired schedule. The switching condition shall be maintained when adjacent tabs are set alike. The unit shall be powered
by a self-starting enclosed 120 (or 208-277) volt synchronous motor capable of continuous accurate operation. The switch mechanism shall be a self-contained unit rated at
not less than 20 amps, 120 volts, single pole, double throw, and shall be readily replaceable in the eld.
FOR 8001 ADD: The time switch shall be similar and equal to Tork Model 8001. FOR 8007 AND 8007V ADD: An omitting device shall be furnished as an integral part of
the time switch, to enable the switching operation to be skipped for any preselected day or days of the week. The time switch shall be similar and equal to Tork Model 8007
or (8007V.) FOR 8007L ADD: (Same description as for 8007). The unit shall incorporate an integral electrically wound spring reserve power unit, which shall power the
clock mechanism for up to 16 hours on a power failure. The time switch shall be similar and equal to Tork Model 8007L. FOR 8001U: The unit shall be furnished with built-
in 480-120V transformer to operate timing motor in parallel with 480 volt load. The time switch shall be Tork Model 8001U.
11
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
8000 SERIES
REPEATING VARIABLE CYCLE
TIME SWITCHES
MULTIPLE ON/OFF CYCLES PER DAY
APPLICATIONS
For one to many daily ON-OFF operations
Duty Cycling Pumping Process Control
Ventilating Fans Irrigation Laboratory
Experiments
SPECIFICATIONS
CONTACT RATINGS: 20 Amps at 120 or 240V, 5 Amps at 480V, 3/4 HP at
120V AC
TIMING MOTOR: Heavy duty synchronous, self-starting, high torque. Power
Consumption: 3 watts.
DIAL: Captivated tabs for setting are easily tilted in or out by hand. Switch stays
ON or OFF as set when adjacent tabs are set alike.
60 MINUTE DUTY CYCLE DIAL
1 to 30 ON-OFF operations per hour, 60 tabs permit 1 minute switching
changes. Total Duty Cycle adjustable from 2, 3, 4, 5, 6, 10, 12, 15, 20, 30,
or 60 minutes with 1 minute minimum ON and/or OFF settings.
30 MINUTE, 12 MINUTE, AND 6 MINUTE DIALS
60 tabs available with minimum ON or OFF settings of 1/60th of dial speed.
OPERATING TEMPERATURE RANGE: -40 to +165F. (-40 to +74C.)
ENCLOSURE: See page 27 for dimensions. General purpose (NEMA 1). Drawn steel, beige enamel, with combination 12and
3
4 K.O.s on sides, bottom and back. Lockable hasp. Cover is removable and movement releases from case at nger
touch for easy installation.
WIRING DIAGRAM
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number. M
ALL SPDT
Noryl Indoor/Outdoor NEMA 3R: (sufx N) Model 9000N* MODELS
Metal Indoor/Outdoor NEMA 3: (sufx O) Model 9000A*
Flush, with lock and key: (sufx FL1) Model 9001*
Duplex 2 standard units in one indoor/outdoor NEMA 3 metal case: L
C NC NO
2
(sufx DUOL) Model 9004L* H LOAD 2
Bracket mounting specify mechanism only with bracket. 120VAC
CLOSED WITH
TAB OUTWARD
Intermatic Adapter Plate Model IAP allows any TORK 8000 model to N LOAD 1
t into an Intermatic case without changing enclosure CLOSED WITH
TAB INWARD
CAT UPC H.P. MOTOR: MOTOR:
NO CODE SWITCH TYPE AMPS RATING AC VOLTAGE Hz
8601 70034 SPDT 60 Minute 20 4
3
120 60
8602 70035 SPDT 60 Minute 20 112 208-277 60
8301 70033 SPDT 30 Minute 20 3
4 120 60
8121 70032 SPDT 12 Minute 20 3
4 120 60
8061 70031 SPDT 6 Minute 20 3
4 120 60
24 VOLT IN ALL MODELS AVAILABLE ON SPECIFICATION.
SPECIFICATION WRITERS GUIDE 8000 SERIES
The repeating variable cycle time switch shall be of the program tab-type, capable of program-ming in increments of 1/60 of one dial rotation. Program tabs shall be cap-
tive on dial and shall be easily set by hand without tools to obtain or change the desired programming schedule. The switching condition shall be maintained when adjacent tabs
are set alike. The unit shall be powered with a self-starting, enclosed 120 (or 208-277) volt, synchronous motor capable of continuous accurate operation. The switch mech-
anism shall be a self-contained unit rated at not less than 20 amperes, 240 volt AC, SPDT, and shall be readily replaceable in the eld. OPTION 1: Unit shall be furnished less
case with mounting bracket (for mounting in control panel). OPTION 2: Enclosure shall be NEMA 1 surface with combination 1/2" and 3/4" knockouts on bottom, both sides,
top and back (or see other mountings). There shall be at least 25 cubic inches of available space at bottom of enclosure to facilitate wiring. A slip-out arrangement
will be included to permit prompt removal of the time switch mechanism. Provision shall be made for positive padlocking. Timer shall complete one dial rotation in
_____ minute(s) and shall be TORK Model 8 _ _ _ (to t requirement).
12
A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
ALPHANUMERIC INDEX TERMS OF SALE
CATALOG TORK VENDOR NUMBER: 786261
NUMBER PAGE
1. Prices are F.O.B. our plant.
36/46 . . . . . . . . . . . . . . . . . . . . . . 21 2. Prices do not include any sales tax.
401A, 402A, 407A . . . . . . . . . . . . . 24 3. Freight charges will be prepaid on all orders $250.00 and over
437R, 451A . . . . . . . . . . . . . . . . . . 24 shipping within continental USA using standard shipping meth-
601A, 602A, 611A . . . . . . . . . . . . . 24 ods and service.
651A, 652A . . . . . . . . . . . . . . . . . . 24 4. Minimum order $100.00.
701A, 711A . . . . . . . . . . . . . . . . . . 22 5. Claims for shortage, erroneous charges or price corrections shall
806A . . . . . . . . . . . . . . . . . . . . . . . 24 be deemed waived unless made in writing, delivered to NSi
1101 etc . . . . . . . . . . . . . . . . . . . . 2,3 within 30 days of invoice.
1101 etc (Pool) . . . . . . . . . . . . . . . . . 6 6. Terms of payment 2% 10th prox. net 25th following.
1847, 1848 . . . . . . . . . . . . . . . . . . 10 7. Warranties NSi guarantees all products to be free of defects in
7100 etc . . . . . . . . . . . . . . . . . . . . 4,5 material and workmanship for a period of 1 year from date of
7200Z etc . . . . . . . . . . . . . . . . . 14,15 sale. Any claims for defective material must be agreed to in
8001 etc . . . . . . . . . . . . . . . . . . . . 11 writing by NSi. Defective material will be replaced on an F.O.B.
8601 etc . . . . . . . . . . . . . . . . . . . . 12 our factory basis. NSi disclaims the implied warranty of tness
for a particular application.
A505 etc . . . . . . . . . . . . . . . . . . . . 23
C505 etc . . . . . . . . . . . . . . . . . . . . 23
IAP . . . . . . . . . . . . . . . . . . . . . . . . . 21
M500 . . . . . . . . . . . . . . . . . . . . . . . 22 OTHER PRODUCTS AVAILABLE
T920, T930 . . . . . . . . . . . . . . . . . . 18
NSi can provide many other products for special applications which
TW220L, TW222L . . . . . . . . . . . 16,17
are not listed in this catalog. If you require an item which you do
TW300L, TW302L . . . . . . . . . . . 16,17
not nd listed, please contact us. We would be pleased to provide a
TZ220L, TZ222L . . . . . . . . . . . . . . . 20
quotation upon receipt of a drawing or a sample.
TZ300L, TZ302L . . . . . . . . . . . . . . . 20
W100, W200 etc . . . . . . . . . . . . 14,15
WH . . . . . . . . . . . . . . . . . . . . . . . . . 7
ZKIT . . . . . . . . . . . . . . . . . . . . . . . . 21
GUARANTEE
It is our goal to provide extraordinary products and service on a
daily basis. If our products or service do not meet with your satis-
faction, please let us know immediately and we promise to make
every reasonable effort to remedy the situation.
29
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
TORK POOL/SPA PANELS:
COMMON FEATURES
EASY-HINGE PATENTED INTERCHANGEABLE
REMOVABLE AND REVERSIBLE TIMING MECHANISMS
DOOR Accepts both the new P Series time switch
Change from left-opening to right-opening mechanisms as well as the TORK 1100 Series
door in a snap! Allows for customized when installed with IAP adapter plate.
installations and solves installation prob-
lems in the eld.
EASY FOLD & DROP
2-GANG SUPPLEMENTAL
DEVICE PLATE
Allows additional wiring devices such as, X-10 or
UPB devices for various control options. Device
plate swings out, just drop devices in place & lock
into position... thats it! No mounting screws, no
labor.
DURABLE, NEMA 3R
HIGH QUALITY
SPEC GRADE STEEL
ENCLOSURE WITH
HIGH QUALITY FINISH
EASY FOLD & DROP
INSIDE WIRING COMPARTMENT (IWC)
Unbelievably easy! Loosen one captive screw and
the IWC folds out. Drop receptacles into place &
lock into position... thats it! No mounting screws,
no labor.
INSIDE WIRING COMPARTMENT (IWC)
EASY-LATCH Angled IWC allows the pool panel cover to act as
Spring-loaded easy to operate lockable latch. a while-in-use cover for two (2) installed
receptacles.
Also eliminates the need to pipe out to outdoor
CAPTIVE SCREWS electrical box and while-in-use cover, cutting
All screws are captive, eliminating lost screws! down on additional material cost and reducing
installation time.
features
One or more of the following patents apply: 6.753.485, 6.791.039, 6.827.230B1, 6.930.268. Additional Patents pending.
2
A DIVISION OF NSi INDUSTRIES, LLC
TORK Pool/Spa Panels accept our custom designed P & PEW Series time
switch mechanisms, as well as conventional 1100 Series mechanisms, with
IAP adapter plate. Some of the unique features of our P & PEW Series are
/
outlined below.
MECHANICAL TIME SWITCH FEATURES
P SERIES 24 HOUR TIME SWITCH
QUICK INSTALL/RELEASE LEVER Conventional
for easy installation and removal when installing time switch
into pool panels mechanisms
LOAD INDICATOR LAMP are easily
adapted to
REAL TIME SWITCH FACE all TORK
easy to set and check time Pool/Spa
Panels.
CAPTIVE TRIPPERS
15 minute intervals; no lost trippers
CONVENIENT EXTERNAL ROCKER
SWITCH 1101 M
3 position switch: Manual Mode Off-Timer Mode. To
close down the pool without affecting the time set-
1103 M
tings, move the rocker switch to OFF, it is tht simple! 1104 M
ID LABELING SAME ON/OFF
silkscreened labeling clearly displays time switch TIMES EACH DAY
ratings as well as terminal identication for easy
eld installation TIMING MOTOR: Heavy duty
synchronous, self-starting
DIGITAL TIME SWITCH FEATURES high torque. Power consump-
tion: 3 watts.
PEW SERIES 7-DAY PROGRAMMABLE AUTOMATIC OPERATION:
DIGITAL TIME SWITCH Minimum ON setting:
Allows for the control of various electrical equipment on a 7 day schedule. 15 different weekly programs: 20 minutes.
MON to SUN (same or different for each day) Minimum OFF setting:
M/T/W/Th/F
Sa/Su
75 minutes.
M/T/W/Th/F/Sa One pair of ON-OFF trippers
M/T/W supplied accommodates up
Th/F/Sa to 12 pairs.
M/W/F
T/Th/Sa
TEMPORARY MANUAL OVERRIDE:
QUICK INSTALL/ Standard.
RELEASE LEVER
for easy installation and removal when 40 Amp. Tungsten, 120VAC
installing into pool panels
40 Amp. Resistive, 120-
LOAD INDICATOR LAMP 277VAC Single Phase
LARGE LCD DISPLAY 40 Amp. General Purpose
120-277 VAC Single Phase
7 DAY PROGRAMMING
ONE MINUTE INTERVAL 20 Amp. Inductive 120VAC,
277VAC, Single Phase
BATTERY BACKUP
LARGE MANUAL 1000 VA Pilot Duty 120-277
VAC
BUTTON
with three operating 2 HP (24 FLA) 120 VAC; 5 HP
modes available: (28 FLA) 240 VAC
Manual/Override
ID LABELING SIMPLE LAYOUT
Timer/AUTO
OFF/Standby timer button layout makes
silkscreened labeling clearly
using the OFF mode, the programming easy!
displays time switch ratings as
pool can be closed down well as terminal identication for
without disrupting the easy eld installation
time settings
3
JANUARY 2008 A DIVISION OF NSi INDUSTRIES, LLC
TIME SWITCH MECHANISMS
P SERIES MECHANICAL TIME SWITCHES
Mechanical time switches are effective and economical. The captive trippers are very easy to set, allowing for inter-
vals as low as every 15 minutes. Best of all, they cant be lost! Additionally, these time switches are provided with
an external manual/OFF/timer rocker switch and a load indicator light. The authentic clock face makes setting the
time switch easy. All time switches are DPST (2 NO) and have an additional NC contact for ultimate exibility.
CATALOG UPC
NO CODE DESCRIPTION
P1101-M 10056 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC 15A Resistive & GP@120V
P1104-M 10057 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC 15A Resistive & GP@120V
P SERIES MECHANICAL TIME SWITCHES
WITH FIREMAN SWITCH
All the same features as our standard time switches (above) with an additional switch which will turn off the pool heater before
shutting the pool pump (Fireman Switch).
CATALOG UPC
NO CODE DESCRIPTION
P1101FM-M 10060 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC 15A Resistive & GP@120V
Complete with fireman switch (heater cutoff): SPST, 15A@120V
P1104FM-M 10061 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC 15A Resistive & GP@120V
Complete with fireman switch (heater cutoff): SPST, 15A@120V
PEW SERIES DIGITAL TIME SWITCHES
Digital time switches provide ultimate exibility and reliability. It offers 24 hour programming as well as
7 day programming, and can be programmed 7 different ways. Battery backup protects programs.
Time switches are DPST (2 NO) and have an additional NC contact.
CATALOG UPC
NO CODE DESCRIPTION
PEW101-M 82432 Digital time switch 24 Hour, 7 Day programming,DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC: 15A Resistive & GP@120V
PEW104-M 82442 Digital time switch 24 Hour, 7 Day programming, DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC: 15A Resistive & GP@120V
1100 SERIES ELECTROMECHANICAL TIME SWITCHES
All pool/spa panels accept conventional electromechanical time switch mechanisms with IAP adapter plate.
For more information on the 1100 Series, see page 6 of our Electromechanical Catalog, or online at www.tork.com.
CATALOG UPC
NO CODE DESCRIPTION
1101M 10022 24 Hour Dial, SPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 2HP@120V
1103M 10023 24 Hour Dial, DPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 2HP@120V
1104M 10024 24 Hour Dial, DPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 5HP@240V
WITH FIREMAN SWITCH
1101 FM M 10025 Same as 1101M above, complete with fireman switch (heater cutoff): SPST, 24V, 760VA
1104 FM M 10026 Same as 1101M above, complete with fireman switch (heater cutoff): SPST, 24V, 760VA
ADAPTER PLATE
IAP xxxxx Adapter Plate to mount 1100 Series time switches into pool/spa panels
12
A DIVISION OF NSi INDUSTRIES, LLC
TIME SWITCH MECHANISMS
P SERIES MECHANICAL TIME SWITCHES
Mechanical time switches are effective and economical. The captive trippers are very easy to set, allowing for inter-
vals as low as every 15 minutes. Best of all, they cant be lost! Additionally, these time switches are provided with
an external manual/OFF/timer rocker switch and a load indicator light. The authentic clock face makes setting the
time switch easy. All time switches are DPST (2 NO) and have an additional NC contact for ultimate exibility.
CATALOG UPC
NO CODE DESCRIPTION
P1101-M 10056 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC 15A Resistive & GP@120V
P1104-M 10057 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC 15A Resistive & GP@120V
P SERIES MECHANICAL TIME SWITCHES
WITH FIREMAN SWITCH
All the same features as our standard time switches (above) with an additional switch which will turn off the pool heater before
shutting the pool pump (Fireman Switch).
CATALOG UPC
NO CODE DESCRIPTION
P1101FM-M 10060 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC 15A Resistive & GP@120V
Complete with fireman switch (heater cutoff): SPST, 15A@120V
P1104FM-M 10061 24 Hour Mechanical time switch DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC 15A Resistive & GP@120V
Complete with fireman switch (heater cutoff): SPST, 15A@120V
PEW SERIES DIGITAL TIME SWITCHES
Digital time switches provide ultimate exibility and reliability. It offers 24 hour programming as well as
7 day programming, and can be programmed 7 different ways. Battery backup protects programs.
Time switches are DPST (2 NO) and have an additional NC contact.
CATALOG UPC
NO CODE DESCRIPTION
PEW101-M 82432 Digital time switch 24 Hour, 7 Day programming,DPST, 2NO: 40A Resistive/Inductive per pole, 3HP@120V; 1NC: 15A Resistive & GP@120V
PEW104-M 82442 Digital time switch 24 Hour, 7 Day programming, DPST, 2NO: 40A Resistive/Inductive per pole, 7.5HP@240V; 1NC: 15A Resistive & GP@120V
1100 SERIES ELECTROMECHANICAL TIME SWITCHES
All pool/spa panels accept conventional electromechanical time switch mechanisms with IAP adapter plate.
For more information on the 1100 Series, see page 6 of our Electromechanical Catalog, or online at www.tork.com.
CATALOG UPC
NO CODE DESCRIPTION
1101M 10022 24 Hour Dial, SPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 2HP@120V
1103M 10023 24 Hour Dial, DPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 2HP@120V
1104M 10024 24 Hour Dial, DPST, 1 NO, 40A Resistive & General Purpose, 20A Inductive, 5HP@240V
WITH FIREMAN SWITCH
1101 FM M 10025 Same as 1101M above, complete with fireman switch (heater cutoff): SPST, 24V, 760VA
1104 FM M 10026 Same as 1101M above, complete with fireman switch (heater cutoff): SPST, 24V, 760VA
ADAPTER PLATE
IAP xxxxx Adapter Plate to mount 1100 Series time switches into pool/spa panels
12
A DIVISION OF NSi INDUSTRIES, LLC
ACCESSORY & REPLACEMENT PARTS /
CATALOG UPC
NO CODE DESCRIPTION
The following time switches are for REPLACEMENT ONLY in models PP-20R-2P1 and PP-20R-2P4.
These cannot be installed in PP-20R, PP-20R-P1, or PP-20R-P4
P1101-2M 10058 (2) 24 Hour Mechanical time switches, each DPST, 2NO: 40A Resistive/Inductive per pole, 2HP@120V
P1104-2M 10059 (2) 24 Hour Mechanical time switches, each DPST, 2NO: 40A Resistive/Inductive per pole, 5HP@240V
ACCESSORY
WP-1GA 10062 Angular Single Gang (While-in-Use) Device Plate for models PP100R and for PP125R without transformer
ALPHANUMERIC INDEX TERMS OF SALE
CATALOG TORK VENDOR NUMBER: 786261
NUMBER PAGE
1. Prices are F.O.B. our plant.
1101M, 1103M, 1104M . . . . . 12 2. Prices do not include any sales tax.
1101 FM M . . . . . . . . . . . . . . . 12 3. Freight charges will be prepaid on all orders $250.00 and over
1104 FM M . . . . . . . . . . . . . . . 12 shipping within continental USA using standard shipping meth-
IAP . . . . . . . . . . . . . . . . . . . . . 12 ods and service.
P1101, P1104 . . . . . . . . . . . . . 12 4. Minimum order $100.00.
P1101-2M & 1104 -2M . . . . . . 13 5. Claims for shortage, erroneous charges or price corrections shall
P1101FM-M . . . . . . . . . . . . . . 12 be deemed waived unless made in writing, delivered to NSi
P1104FM-M . . . . . . . . . . . . . . 12 within 30 days of invoice.
PEW Series . . . . . . . . . . . . . . . 12 6. Terms of payment 2% 10th prox. net 25th following.
PP-10R-E-GFCI . . . . . . . . . . . . . 11 7. Warranties NSi guarantees all products to be free of defects in
PP-10R-M-GFCI . . . . . . . . . . . . 11 material and workmanship for a period of 1 year from date of
PP-100R . . . . . . . . . . . . . . . . . 6 sale. Any claims for defective material must be agreed to in
PP-100R-P# . . . . . . . . . . . . . 8 writing by NSi. Defective material will be replaced on an F.O.B.
PP-100R-2P# . . . . . . . . . . . . 8 our factory basis. NSi disclaims the implied warranty of tness
for a particular application.
PP-100R-P4P1 . . . . . . . . . . . 8
PP-100R-P4P4FM . . . . . . . . . 8 OTHER PRODUCTS AVAILABLE
PP-125R . . . . . . . . . . . . . . . . 6 NSi can provide many other products for special applications which
PP-125R-P4 . . . . . . . . . . . . . . . 9 are not listed in this catalog. If you require an item which you do
PP-125R-2P4 . . . . . . . . . . . . . . . 9 not nd listed, please contact us. We would be pleased to provide a
PP-20R . . . . . . . . . . . . . . . . . . . 6 quotation upon receipt of a drawing or a sample.
PP-20R-P# . . . . . . . . . . . . . . . . . 7
PP-20R-2P# . . . . . . . . . . . . . . . . 7 GUARANTEE
PP-125R-P4 -100X . . . . . . . . . . 10 It is our goal to provide extraordinary products and services on a
PP-125R-P4 -300X . . . . . . . . . . 10 daily basis. If our products or service do not meet with your satis-
WP . . . . . . . . . . . . . . . . . . . . . 13 faction, please let us know immediately and we promise to make
every reasonable effort to remedy the situation.
13
JANUARY 2008 A DIVISION OF NSi INDUSTRIES, LLC
