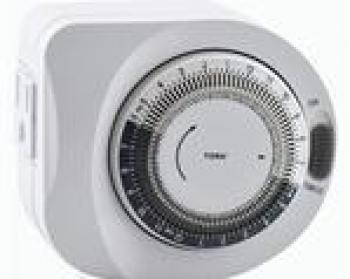

24 HOUR MECHANICAL TIMER, 125VAC, 15A, GROUNDED
NSI / Tork Electrical, Lighting Pool & Spa Products and Replacement Parts
W SERIES
7 DAY TIME SWITCHES
DIFFERENT SCHEDULES EACH DAY
APPLICATIONS
Heating Air Conditioning Display Lighting
Ventilating Lighted Signs Storefront Lighting
SPDT switches provide for control of mechanically-held contactors.
SPECIFICATIONS
Offers the easiest and most accurate setting of any 7 day
Time Switch by means of unique combination ON-OFF trippers,
distinctive time indicator and trigger action switch tripping
mechanism.
CONTACT RATINGS:
40 Amp. Tungsten, 120 VAC
40 Amp. Resistive, 120-277 VAC Single Phase
40 Amp. General Purpose, 120-277 VAC Single Phase
20 Amp. Inductive 120 VAC, 277 VAC Single Phase
1000 VA Pilot Duty 120-277 VAC.
2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC
TIMING MOTOR: Heavy duty synchronous, self-starting high torque. Power W SERIES
Consumption: 3 watts.
OPTIONAL RESERVE POWER: Keeps dial on time up to 24 hours during power outage (16 hours on 4PST models).
Add sufx L to model number. Power Consumption: 5 watts.
AUTOMATIC OPERATION: Minimum ON setting: 1 Hour. Minimum OFF setting: 2 Hours. (8 hours between 2 OFF
settings). Models W400A and W402A offer minimum ON/OFF settings of 312 hours. 7 day calendar dial
accommodates up to 2 pairs of ON-OFF removable Trippers per day 7 pairs are supplied.
Dial markings in English, French & Spanish.
TEMPORARY MANUAL OVERRIDE: Standard.
OPERATING TEMPERATURE RANGE: -40 to +165F. (-40 to +74C.)
ENCLOSURE: See page 27 for dimensions. Surface: General Purpose (NEMA 1). Deep-drawn Steel, beige enamel, lock-
able hasp, with combination 12 & 34 K.O.s on both sides and bottom.
OTHER MOUNTINGS: *When ordering special enclosures ONLY, please use model number.
Indoor /Outdoor Metal NEMA Type 3 (Sufx O) Model 9006*
Flush Mount with lock and key NEMA Type 1: (sufx FL5) Model 9005*
Bracket mounting specify mechanism only with bracket.
14
A DIVISION OF NSi INDUSTRIES, LLC
CAT UPC HP MOTOR: FREQUENCY
NO CODE SWITCH AMPS RATING AC VOLTAGE Hz
W100 30001 SPST 40 2 120 60
W200 31001 DPST 40 2 120 60
W202 31011 DPST 40 5 208-277 60
W300 32001 3PST 40 2 120 60
W302 32002 3PST 40 5 208-277 60
W120 33001 SPDT 40 2 120 60
W220 34001 DPDT 40 2 120 60
W222 34011 DPDT 40 5 208-277 60
W400A 35001 4PST 40 2 120 60
W402A 35002 4PST 40 5 208-277 60
WITH RESERVE POWER
W300L 39005 3PST 40 2 120 60
W302L 39006 3PST 40 5 208-277 60
W220L 39009 DPDT 40 2 120 60
W222L 39010 DPDT 40 5 208-277 60
W400AL 39007 4PST 40 2 120 60
24 VOLT IN ALL MODELS AVAILABLE ON SPECIFICATION.
WIRING DIAGRAMS
W100 (SPST) W200 (DPST) W300 (3PST) W120 (SPDT) W220 (DPDT)
M M
M M M
L 1 X 2
L 1 X 2 H
L 1 X 2
L
3 4 L 1 X 2 H LOAD
L 2
H N
LOAD LOAD
L H
H H 5 6 LOAD LOAD L 3
LOAD 5 4 LOAD
N A B
N L
H LOAD LOAD LOAD N LOAD LOAD
H
N
N N
N
W400A (4PST)
Equipment
Ground M
A 1 2 3 4
Clock Motor
Supply
5 6 7 8
B
Supply
To Load(s)
SPECIFICATION WRITERS GUIDE W SERIES
Furnish and install where shown TORK Time Switch of the 7 day type, powered by a self-starting synchronous motor, capable of being set for different ON-OFF times each
day of the week, to an operating accuracy of plus or minus 15 minutes of the desired time. Time Switch contacts shall be capable of switching 40 amperes per pole contin-
uously at 277 volts and shall be SPST (DPST, 3PST, DPDT, SPDT, 4PST as required). Removable ON-OFF trippers shall make possible automatic operation with a minimum
ON period of one hour and a minimum of 2 hours between one OFF operation and the next ON. Models W400 and W402 offer minimum ON and OFF settings of 3-1/2
hours. Enclosure shall be NEMA 1 surface, nished in baked beige enamel, with combination 1/2 - 3/4 knock-outs on bottom and both sides. Provision shall be made for
positive padlocking. Terminals shall be capable of receiving #8 AWG wire. Time Switch shall be TORK Model W_ _ _ (to t requirement).
FOR RESERVE POWER (Add sufx L): Spring-driven reserve shall be provided sufcient to operate the Time Switch contacts at least 24 hours after power failure (16 hour
reserve power on 4PST models). On restoration of power, Time Switch shall transfer to synchronous motor driven and automatically rewind reserve power unit.
15
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
Z-KIT: ASTRONOMIC DIAL FIELD CONVERSION KIT
APPLICATIONS SPECIFICATIONS
Astronomic Dial Conversion Kit provides everything nec- DIAL: Different dials provide for various degrees of
essary for quick and easy eld conversion of North Latitude. Can be set to turn ON either 20 min-
Models 1101, 1103, and all 7000 and 1847 utes or 40 minutes before or after normal to adapt to
Series Time Switches FROM STANDARD 24 local conditions.
HOUR DIAL TO ASTRONOMIC DIAL.
Can be set to turn OFF from 8:30 P.M. to 2:30 A.M.
The simplest way to upgrade existing Time Switch installa- or at sunrise.
tions while providing the safest solution for night lighting:
Show Windows Signs HOW TO ORDER: *SPECIFY Z KIT AND CITY OF
Parking Lots Poster Panels USE OR LATITUDE. Kit includes the Astronomic Dial,
Highway Signs Bridges the actuator (which advances the yearly gear) and
Hallways simple installation and setting instructions.
ZKIT 26001* ASTRONOMIC DIAL KIT
RESERVE POWER TIMING MECHANISMS
APPLICATIONS SPECIFICATIONS
During power outages, precision spring mechanism takes CAN BE FIELD INSTALLED**
over instantly and automatically. Keeps time switch on time Exceptional TEMPERATURE RANGE of 40 to +165 F
up to 16 hours on 24 hour models and up to 24 hours on (40 to +74C) is possible as unit does NOT operate
7 day models. on batteries.
POWER CONSUMPTION: 5 watts.
No resetting needed after resumption of power; spring
mechanism rewinds quickly and automatically. In case of NOTES
For Models W400A and W402A, add sufx I (order 36I or 46I)
frequent outages, reserve need not be fully rewound. When replacing reserve power motors for models 8320L or 8620L
order 36L or 46L.
The Reserve Power Motor is not adaptable to Model 4277 and
CAT UPC MOTOR 8001U, 8150U, or variable cycling timers.
NO CODE AC VOLTAGE HZ For other voltages and frequencies, consult factory.
36 95016 120V 60 For eld conversion of standard 1100, 7100, and 7200 series
units, you must also order Model 63100 enclosure to accom-
46 95017 208-277 60 modate the larger unit (not necessary with 3PST models)
** Except Models W400/W402 return to factory for conver-
sion.
INTERMATIC ADAPTER PLATE
FOR FITTING A TORK MECHANISM
INTO AN ALREADY INSTALLED
INTERMATIC CASE
ADAPTER
IAP 95031 INTERMATIC ADAPTER PLATE PLATE
GROUND CLEARANCE HOLE
SCREW FOR GROUND SCREW
TO REPLACE USE TORK TO REPLACE USE TORK
INTERMATIC MODEL NO INTERMATIC MODEL NO
T101 1101M + IAP T171 7100M + IAP
T102 1102M + IAP T172 7102M + IAP
T103 1103M + IAP T173 7200M + IAP
T104 1104M + IAP T174 7202M + IAP
T101M201 1101FM-M + IAP T175 7120M + IAP
T104M201 1104FM-M + IAP T176 7122M + IAP
21
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
400 SERIES: PLUG IN LAMP AND APPLIANCE TIMERS
CATALOG UPC
DESCRIPTION NO CODE
401A 401A 16001
24 HOUR MECHANICAL TIMER
US 96 Captive Tabs, POLARIZED plug and receptacle.
125VAC, 15A Resistive, General Purpose; 1000W Tungsten
402A 402A 16002
24 HOUR MECHANICAL TIMER
US 96 Captive Tabs, GROUNDED plug and receptacle.
125VAC, 15A Resistive, General Purpose; 1000W Tungsten
407A 407A 16003
7 DAY MECHANICAL TIMER
US 84 Captive Tabs (12 per day), GROUNDED plug and receptacle.
125VAC, 15A Resistive, General Purpose; 1000W Tungsten
437R 437R 16005
7 DAY MECHANICAL RANDOM/VACATION TIMER
US No tabs to set, factory preset to random ON/OFF times.
POLARIZED plug and receptacle.
125VAC, 15A Resistive, General Purpose; 1000W Tungsten
451A 451A 16006
24 HOUR MECHANICAL TIMER
US 48 Captive Tabs, GROUNDED plug and receptacle.
125VAC, 15A Resistive, General Purpose; 13HP
600 SERIES: OUTDOOR TIMERS
CATALOG UPC
DESCRIPTION NO CODE
601A: ONE OUTLET 601A 16020
24 HOUR MECHANICAL OUTDOOR TIMER
US 96 Captive tabs, GROUNDED plug and receptacle.
Outlet on bottom of timer with 18 cord.
125VAC, 15A Resistive, 1250W Tungsten
602A: TWO OUTLET 602A 16021
24 HOUR MECHANICAL OUTDOOR TIMER
US 96 Captive tabs, GROUNDED plug and receptacle.
2 Outlets on bottom of timer with 18 cord.
125VAC, 15A Resistive, 1250W Tungsten
611A: HEAVY DUTY ONE OUTLET 611A 16022
24 HOUR MECHANICAL OUTDOOR TIMER
96 Captive tabs, GROUNDED plug and receptacle.
Outlet on bottom of timer with 24 cord.
125VAC, 15A Resistive, General Purpose, 1250W Tungsten, 13HP
651A: ONE OUTLET 651A 16024
PHOTOCELL CONTROLLED MECHANICAL OUTDOOR TIMER
US ON; OFF; ON at dusk, OFF 2, 4, 6, 8 hours later or at dawn.
GROUNDED plug and receptacle with outlet on bottom, 6.5 cord.
125VAC, 15A Resistive, General Purpose, 1000W Tungsten.
652A: TWO OUTLETS 652A 16026
PHOTOCELL CONTROLLED MECHANICAL OUTDOOR TIMER
US ON; OFF; ON at dusk, OFF 2, 4, 6, 8 hours later or at dawn.
GROUNDED plug and receptacle with two outlets on bottom, 6.5 cord.
125VAC, 15A Resistive, General Purpose, 1000W Tungsten
806A: SIX OUTLETS (FOUR TIMED & TWO DIRECT) 806A 16028
24 HOUR MECHANICAL OUTDOOR TIMER WITH STAKE
US 96 Captive tabs, GROUNDED plug and receptacle.
Timer with cover and 6 ft. cord and 15A circuit breaker.
Stake for driving into ground.
125VAC, 15A Resistive, General Purpose, 1250W Tungsten, 13HP
24
A DIVISION OF NSi INDUSTRIES, LLC
ENCLOSURE & MECHANISM DIMENSIONS
METAL INDOOR NEMA 1 METAL INDOOR/OUTDOOR 5-1/4"
#68229 NEMA 3
STD. FOR
MODELS
4-11/16" Model 9000A Suffix O 8-1/4"
1101 7200 8121
1102 7202 8301 STD. FOR MODELS
1103 7120 8601 7-15/16"
7300, (L) 7302Z
1104 7122 8602 7302, (L) 7300ZL 4-5/8"
1101FM 8001 TORK 7300Z 7302ZL
1104FM 8004
AVAILABLE FOR MODELS
7100 8061
2-15/16" 1101 7200, (L,Z,ZL) 1847AL 8007V
7102 1102 7202, (L,Z,ZL) 1847AZL 8061
1103 7120, (L,Z,ZL) 8001 8121
1104 7122, (L,ZL) 8004 8301
1101FM 7220, (L) 8001U 8601
1104FM 7222, (L) 8007 8602
METAL INDOOR NEMA 1 7100 1847A 8007L
#63100 7102 1847AZ
5"
STD. FOR MODELS
7220, (L) 1847AL
7222, (L) 1847AZL
7200L 8007 9-1/4"
7202L 8007L
METAL INDOOR/OUTDOOR
7120L 8007V
NEMA 3 8-3/8 "
1847A 8150
TORK
Model 9006 Suffix O
1848A 8150U AVAILABLE FOR MODELS
1849A W100 W220 TW220L 13-1/8"
3-3/4" W200 W222 TW300L
1847AZ
W202 W220L T920L
W300 W222L T930L
W302 W300L 1847AW
W120 W302L 1847AWL 5-3/16 "
METAL INDOOR NEMA 1
#63016-1 8-1/8"
STD. FOR MODELS
TZ220L W302L
5"
12-1/8 "
TZ300L TW220L NORYL INDOOR/OUTDOOR
W300 TW300L
TORK NEMA 3R
W302 T920L
W300L T930L
Model 9000N Suffix N 9-1/8"
STD. FOR MODELS
4-3/4"
7200Z,(L, ZL) TORK
7202Z,(L, ZL)
7120Z,(L, ZL)
4-1/2"
7122Z, (L, ZL)
METAL INDOOR NEMA 1 AVAILABLE FOR MODELS
#70100 7-5/8 " 1101 7102 7222, (L) 8001U
1102 7200, (L) 1847A 8061
STD. FOR MODELS 1103 7202, (L) 1847AZ 8121
W100 W222 1104 7120, (L) 1847AL 8301
1101FM 7122, (L) 1847AZL 8601
W200 W220L
11-7/8 "
1104FM 7220, (L) 8001 8602
W202 W222L 7100 8004
W120 1847AW TORK
W220 1847AWL
3-1/4 "
METAL INDOOR NEMA 1 NORYL & LEXAN 5"
for W400 Series NEMA 3R
12 -1/2" INDOOR/OUTDOOR TORK 9-1/8"
STD. FOR MODELS Model 9000NC
W400A W400AL
STD. FOR MODELS
W402A W402AL 1101NC
4" 1103NC
4-1/2"
8 -1/4" 1104NC
26
A DIVISION OF NSi INDUSTRIES, LLC
ALPHANUMERIC INDEX TERMS OF SALE
CATALOG TORK VENDOR NUMBER: 786261
NUMBER PAGE
1. Prices are F.O.B. our plant.
36/46 . . . . . . . . . . . . . . . . . . . . . . 21 2. Prices do not include any sales tax.
401A, 402A, 407A . . . . . . . . . . . . . 24 3. Freight charges will be prepaid on all orders $250.00 and over
437R, 451A . . . . . . . . . . . . . . . . . . 24 shipping within continental USA using standard shipping meth-
601A, 602A, 611A . . . . . . . . . . . . . 24 ods and service.
651A, 652A . . . . . . . . . . . . . . . . . . 24 4. Minimum order $100.00.
701A, 711A . . . . . . . . . . . . . . . . . . 22 5. Claims for shortage, erroneous charges or price corrections shall
806A . . . . . . . . . . . . . . . . . . . . . . . 24 be deemed waived unless made in writing, delivered to NSi
1101 etc . . . . . . . . . . . . . . . . . . . . 2,3 within 30 days of invoice.
1101 etc (Pool) . . . . . . . . . . . . . . . . . 6 6. Terms of payment 2% 10th prox. net 25th following.
1847, 1848 . . . . . . . . . . . . . . . . . . 10 7. Warranties NSi guarantees all products to be free of defects in
7100 etc . . . . . . . . . . . . . . . . . . . . 4,5 material and workmanship for a period of 1 year from date of
7200Z etc . . . . . . . . . . . . . . . . . 14,15 sale. Any claims for defective material must be agreed to in
8001 etc . . . . . . . . . . . . . . . . . . . . 11 writing by NSi. Defective material will be replaced on an F.O.B.
8601 etc . . . . . . . . . . . . . . . . . . . . 12 our factory basis. NSi disclaims the implied warranty of tness
for a particular application.
A505 etc . . . . . . . . . . . . . . . . . . . . 23
C505 etc . . . . . . . . . . . . . . . . . . . . 23
IAP . . . . . . . . . . . . . . . . . . . . . . . . . 21
M500 . . . . . . . . . . . . . . . . . . . . . . . 22 OTHER PRODUCTS AVAILABLE
T920, T930 . . . . . . . . . . . . . . . . . . 18
NSi can provide many other products for special applications which
TW220L, TW222L . . . . . . . . . . . 16,17
are not listed in this catalog. If you require an item which you do
TW300L, TW302L . . . . . . . . . . . 16,17
not nd listed, please contact us. We would be pleased to provide a
TZ220L, TZ222L . . . . . . . . . . . . . . . 20
quotation upon receipt of a drawing or a sample.
TZ300L, TZ302L . . . . . . . . . . . . . . . 20
W100, W200 etc . . . . . . . . . . . . 14,15
WH . . . . . . . . . . . . . . . . . . . . . . . . . 7
ZKIT . . . . . . . . . . . . . . . . . . . . . . . . 21
GUARANTEE
It is our goal to provide extraordinary products and service on a
daily basis. If our products or service do not meet with your satis-
faction, please let us know immediately and we promise to make
every reasonable effort to remedy the situation.
29
JUNE 2007 A DIVISION OF NSi INDUSTRIES, LLC
TABLE OF CONTENTS
INDOOR TIMERS
401A 24 Hour Mechanical Timer . . . . . . . . . . . . . below
402A 24 Hour Mechanical Air Conditioner Timer . below
407A 7 Day Mechanical Timer . . . . . . . . . . . . . . . . . . 1
437R 7 Day Mechanical Random/Vacation Timer . . . . 1
451A 24 Hour Mechanical Timer . . . . . . . . . . . . . . . . 1
451D Heavy Duty 7 Day Digital Timer . . . . . . . . . . . . 1
OUTDOOR TIMERS
601A & 602A 24 Hour Mechanical Outdoor Timers,
1 or 2 outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
611A 24 Hour Mechanical Outdoor
Timer, 1 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
651A & 652A Photocell Controlled Mechanical
Outdoor Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . 2
653A & 654A Photocell Controlled Digital Outdoor
Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
631D 7 Day Digital Outdoor Timer, 2 outlets . . . . . . . . 3
806A 24 Hour Mechanical Outdoor Timer, 6 outlets . . 3
IN-WALL TIMERS
711A Series 24 Hour In-wall Mechanical Timers . . . . . 4
SS720A Series In-wall 7 Day Digital Timers . . . . . . . . 4
M500 Series In-wall Motor Operated Shut Down Timers 5
A500, C500 Series In-wall Spring Wound Shut Down
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
402A
401A
INDOOR TIMERS
401A 402A
24 HOUR MECHANICAL TIMER 24 HOUR MECHANICAL
AIR CONDITIONER TIMER
APPLICATIONS APPLICATIONS
Automatically turn ON/OFF lamps, radios, TVs giving Automatically turn ON/OFF air conditioners, heaters and other
the home a lived-in look while you are away heavy duty appliances
Turn ON/OFF coffee-makers Turn ON/OFF lamps and coffee-makers
Turn ON/OFF fans for any set time period Turn ON/OFF fans for any set time period
FEATURES RATINGS FEATURES RATINGS
Polarized Plug & Outlet 125VAC 15A Resistive Grounded Plug & Outlet 125VAC 15A Resistive
Captive tabs every 15 min Captive tabs every 15 min
125VAC, 1250W Tungsten 125VAC, 1250W Tungsten
Multiple ON/OFFs Multiple ON/OFFs
Manual ON/TIMER switch 125 VAC, 1/3 HP Manual ON/TIMER switch 125 VAC, 1/3 HP
CATALOG UPC CATALOG UPC
NO CODE NO CODE
401A 16001 402A 16002
a
A DIVISION OF NSi INDUSTRIES, LLC
TABLE OF CONTENTS
INDOOR TIMERS
401A 24 Hour Mechanical Timer . . . . . . . . . . . . . below
402A 24 Hour Mechanical Air Conditioner Timer . below
407A 7 Day Mechanical Timer . . . . . . . . . . . . . . . . . . 1
437R 7 Day Mechanical Random/Vacation Timer . . . . 1
451A 24 Hour Mechanical Timer . . . . . . . . . . . . . . . . 1
451D Heavy Duty 7 Day Digital Timer . . . . . . . . . . . . 1
OUTDOOR TIMERS
601A & 602A 24 Hour Mechanical Outdoor Timers,
1 or 2 outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
611A 24 Hour Mechanical Outdoor
Timer, 1 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
651A & 652A Photocell Controlled Mechanical
Outdoor Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . 2
653A & 654A Photocell Controlled Digital Outdoor
Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
631D 7 Day Digital Outdoor Timer, 2 outlets . . . . . . . . 3
806A 24 Hour Mechanical Outdoor Timer, 6 outlets . . 3
IN-WALL TIMERS
711A Series 24 Hour In-wall Mechanical Timers . . . . . 4
SS720A Series In-wall 7 Day Digital Timers . . . . . . . . 4
M500 Series In-wall Motor Operated Shut Down Timers 5
A500, C500 Series In-wall Spring Wound Shut Down
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
402A
401A
INDOOR TIMERS
401A 402A
24 HOUR MECHANICAL TIMER 24 HOUR MECHANICAL
AIR CONDITIONER TIMER
APPLICATIONS APPLICATIONS
Automatically turn ON/OFF lamps, radios, TVs giving Automatically turn ON/OFF air conditioners, heaters and other
the home a lived-in look while you are away heavy duty appliances
Turn ON/OFF coffee-makers Turn ON/OFF lamps and coffee-makers
Turn ON/OFF fans for any set time period Turn ON/OFF fans for any set time period
FEATURES RATINGS FEATURES RATINGS
Polarized Plug & Outlet 125VAC 15A Resistive Grounded Plug & Outlet 125VAC 15A Resistive
Captive tabs every 15 min Captive tabs every 15 min
125VAC, 1250W Tungsten 125VAC, 1250W Tungsten
Multiple ON/OFFs Multiple ON/OFFs
Manual ON/TIMER switch 125 VAC, 1/3 HP Manual ON/TIMER switch 125 VAC, 1/3 HP
CATALOG UPC CATALOG UPC
NO CODE NO CODE
401A 16001 402A 16002
a
A DIVISION OF NSi INDUSTRIES, LLC
TABLE OF CONTENTS
INDOOR TIMERS
401A 24 Hour Mechanical Timer . . . . . . . . . . . . . below
402A 24 Hour Mechanical Air Conditioner Timer . below
407A 7 Day Mechanical Timer . . . . . . . . . . . . . . . . . . 1
437R 7 Day Mechanical Random/Vacation Timer . . . . 1
451A 24 Hour Mechanical Timer . . . . . . . . . . . . . . . . 1
451D Heavy Duty 7 Day Digital Timer . . . . . . . . . . . . 1
OUTDOOR TIMERS
601A & 602A 24 Hour Mechanical Outdoor Timers,
1 or 2 outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
611A 24 Hour Mechanical Outdoor
Timer, 1 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
651A & 652A Photocell Controlled Mechanical
Outdoor Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . 2
653A & 654A Photocell Controlled Digital Outdoor
Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
631D 7 Day Digital Outdoor Timer, 2 outlets . . . . . . . . 3
806A 24 Hour Mechanical Outdoor Timer, 6 outlets . . 3
IN-WALL TIMERS
711A Series 24 Hour In-wall Mechanical Timers . . . . . 4
SS720A Series In-wall 7 Day Digital Timers . . . . . . . . 4
M500 Series In-wall Motor Operated Shut Down Timers 5
A500, C500 Series In-wall Spring Wound Shut Down
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
402A
401A
INDOOR TIMERS
401A 402A
24 HOUR MECHANICAL TIMER 24 HOUR MECHANICAL
AIR CONDITIONER TIMER
APPLICATIONS APPLICATIONS
Automatically turn ON/OFF lamps, radios, TVs giving Automatically turn ON/OFF air conditioners, heaters and other
the home a lived-in look while you are away heavy duty appliances
Turn ON/OFF coffee-makers Turn ON/OFF lamps and coffee-makers
Turn ON/OFF fans for any set time period Turn ON/OFF fans for any set time period
FEATURES RATINGS FEATURES RATINGS
Polarized Plug & Outlet 125VAC 15A Resistive Grounded Plug & Outlet 125VAC 15A Resistive
Captive tabs every 15 min Captive tabs every 15 min
125VAC, 1250W Tungsten 125VAC, 1250W Tungsten
Multiple ON/OFFs Multiple ON/OFFs
Manual ON/TIMER switch 125 VAC, 1/3 HP Manual ON/TIMER switch 125 VAC, 1/3 HP
CATALOG UPC CATALOG UPC
NO CODE NO CODE
401A 16001 402A 16002
a
A DIVISION OF NSi INDUSTRIES, LLC
TABLE OF CONTENTS
INDOOR TIMERS
401A 24 Hour Mechanical Timer . . . . . . . . . . . . . below
402A 24 Hour Mechanical Air Conditioner Timer . below
407A 7 Day Mechanical Timer . . . . . . . . . . . . . . . . . . 1
437R 7 Day Mechanical Random/Vacation Timer . . . . 1
451A 24 Hour Mechanical Timer . . . . . . . . . . . . . . . . 1
451D Heavy Duty 7 Day Digital Timer . . . . . . . . . . . . 1
OUTDOOR TIMERS
601A & 602A 24 Hour Mechanical Outdoor Timers,
1 or 2 outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
611A 24 Hour Mechanical Outdoor
Timer, 1 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
651A & 652A Photocell Controlled Mechanical
Outdoor Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . 2
653A & 654A Photocell Controlled Digital Outdoor
Timer, 1 & 2 outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
631D 7 Day Digital Outdoor Timer, 2 outlets . . . . . . . . 3
806A 24 Hour Mechanical Outdoor Timer, 6 outlets . . 3
IN-WALL TIMERS
711A Series 24 Hour In-wall Mechanical Timers . . . . . 4
SS720A Series In-wall 7 Day Digital Timers . . . . . . . . 4
M500 Series In-wall Motor Operated Shut Down Timers 5
A500, C500 Series In-wall Spring Wound Shut Down
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
402A
401A
INDOOR TIMERS
401A 402A
24 HOUR MECHANICAL TIMER 24 HOUR MECHANICAL
AIR CONDITIONER TIMER
APPLICATIONS APPLICATIONS
Automatically turn ON/OFF lamps, radios, TVs giving Automatically turn ON/OFF air conditioners, heaters and other
the home a lived-in look while you are away heavy duty appliances
Turn ON/OFF coffee-makers Turn ON/OFF lamps and coffee-makers
Turn ON/OFF fans for any set time period Turn ON/OFF fans for any set time period
FEATURES RATINGS FEATURES RATINGS
Polarized Plug & Outlet 125VAC 15A Resistive Grounded Plug & Outlet 125VAC 15A Resistive
Captive tabs every 15 min Captive tabs every 15 min
125VAC, 1250W Tungsten 125VAC, 1250W Tungsten
Multiple ON/OFFs Multiple ON/OFFs
Manual ON/TIMER switch 125 VAC, 1/3 HP Manual ON/TIMER switch 125 VAC, 1/3 HP
CATALOG UPC CATALOG UPC
NO CODE NO CODE
401A 16001 402A 16002
a
A DIVISION OF NSi INDUSTRIES, LLC
ALPHANUMERIC INDEX TERMS OF SALE
CATALOG TORK VENDOR NUMBER: 786261
NUMBER PAGE
1. Prices are F.O.B. our plant.
401A . . . . . . . . . . . . . . . . . a
2. Prices do not include any sales tax.
402A . . . . . . . . . . . . . . . . . a
3. Freight charges will be prepaid on all orders $250.00 and over
407A . . . . . . . . . . . . . . . . . 1
shipping within continental USA using standard shipping meth-
437A . . . . . . . . . . . . . . . . . 1
ods and service.
451A, 451D . . . . . . . . . . . . 1 4. Minimum order $100.00.
601A . . . . . . . . . . . . . . . . . 2 5. Claims for shortage, erroneous charges or price corrections shall
602A . . . . . . . . . . . . . . . . . 2 be deemed waived unless made in writing, delivered to NSi
611A . . . . . . . . . . . . . . . . . 2 within 30 days of invoice.
631D . . . . . . . . . . . . . . . . . 3 6. Terms of payment 2% 10th prox. net 25th following.
651A, 652A . . . . . . . . . . . . 2 7. Warranties NSi guarantees all products to be free of defects in
653A, 654A . . . . . . . . . . . . 3 material and workmanship for a period of 1 year from date of
711A Series . . . . . . . . . . . . 4 sale. Any claims for defective material must be agreed to in
806A . . . . . . . . . . . . . . . . . 3 writing by NSi. Defective material will be replaced on an F.O.B.
A500 Series . . . . . . . . . . . . 5 our factory basis. NSi disclaims the implied warranty of tness
C500 Series . . . . . . . . . . . . 5 for a particular application.
M500 Series . . . . . . . . . . . . 4
SS720A Series . . . . . . . . . . . 4
OTHER PRODUCTS AVAILABLE
NSi can provide many other products for special applications which
are not listed in this catalog. If you require an item which you do
not nd listed, please contact us. We would be pleased to provide a
quotation upon receipt of a drawing or a sample.
GUARANTEE
It is our goal to provide extraordinary products and services on a
daily basis. If our products or service do not meet with your satis-
faction, please let us know immediately and we promise to make
every reasonable effort to remedy the situation.
TORK TECHNICAL INFORMATION: 888.500.4598
REQUEST YOUR COMPLETE SET OF TORK CATALOGS TODAY!
NSI INDUSTRIES, LLC USA 800-321-5847 FAX 800-841-5566 www.nsiindustries.com
