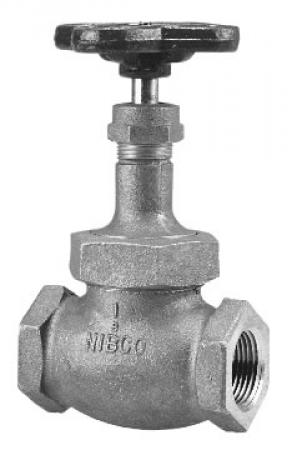

NIBCO T235Y 2 150 BRZ GLOBE VALVE

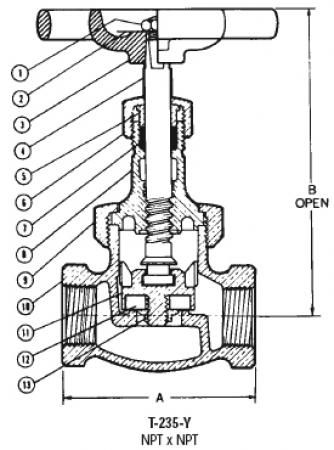

Class 150 Bronze Globe Valves T-235-YThreaded Union Bonnet Integral Seat Renewable Seat and Discwww.nibco.com Revision 6/1/03150 PSI/10.3 Bar Saturated Steam to 366 F/185 C300 PSI/20.7 Bar Non-Shock Cold Working Pressure CONFORMS TO MSS SP-80
Keywords: Nibco, FaucetLock, Facuet Lock, Dura-PEX, Press System, Valve, Valves
Category: [0] => VALVES => GLOBE & ANGLE VALVES => BRONZE - THREADED - CLASS 150
[1] => SUPPLIER DIRECTORY => NIBCO INC => NIBCO VALVES, FAUCETS, FITTINGS, PARTS SECTION 69 => VALVES => GLOBE & ANGLE VALVES => BRONZE - THREADED - CLASS 150
Kelly Legacy Part Number: 1080188
Kelly Catalog Sheet Bronze Globe Valves
BRONZE Class 150
GLOBE AND Stock No.
Size
ANGLE VALVES
Valves
Straight #7TF Angle #17TF
1/8 1085301 ----
1/4 TO 2 1/4
3/8
Union Bonnet No. 7 TF No. 17 TF 1/2
Teflon Disc 3/4
150 SP 1
1 1/4
Globe 300 WOG 1 1/2
2
No. 7TF, Threaded 2 1/2 ----
Angle 3 ----
No. 17TF, Threaded * Bolted Bonnet
150 SWP/300 CWP
These versatile valves are reliable and unexcelled for ease of maintenance when quick disc Ratings
replacement is necessary. Simply insert a new disc into original holder. However, if disc PSI
holder and disc show excessive wear, they can be replaced with a simple operation. Temp Non-Shock
F. TFE Disc.
Valves are regularly furnished with TFE disc for 150 PSI saturated steam service. When
specified, most sizes can be furnished with a No. 6 disc, making the valve excellent for -20 to 150 300
such services as 300 PSI non-shock water up to 200 F and 300 PSI cold oil, gasoline, gas 200 270
or air. 250 230
300 200
Kevlar-graphite composition packing is standard. 350 170
400 100
Each valve has a backseat in the interior of the bonnet below the packing.
Valves comply with Federal Spec WW-V-51d, Class B, Type I (globe) and Type II (angle
for material and design requirements).
T235Y Straight T335Y Angle
Size In. Stock No. Size(In.) Stock No.
1/4 1/4
3/8 3/8
T235Y 1/2 1/2
1/4 to 2-1/2 150 SP 3/4 3/4
1 1
Union Bonnet 300 WOG T335Y Threaded 1-1/4 1-1/4
Integral Seat 1-1/2 1-1/2
Renewable Seat and Disc 2 2
2-1/2
3
150 PSI Saturated Steam to 366F or 185C
150 PSI Fluid to 406F or 207C
300 PSI Non-Shock Cold Water, Oil or Gas
Conforms to MSS SP-80 (MSS SP-80 replaces Federal Spec. WW-V-54 cancelled April, 1983)
www.kellysupply.com 1-800-KELLYSU (535-5978)
B19
