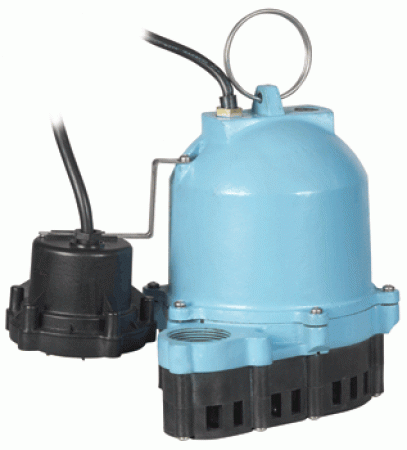

Little Giant ES33D1-10 1/3 HP SUMP PUMP
1/3 HP, Submersible Sump / Effluent Pump
The ES33D1-10 pump from Little Giant is an energy-saving, high
performance, fully submersible sump/effluent pump, designed for the
professional plumbing contractor for use in residential and light
commercial applications. Automatic operation is achieved with a
diaphragm pressure switch. The ES Series Pumps draw less energy while
delivering greater pump flow and overall performance. Uses include
basement sumps, excavations, loading docks, construction sites,
underground passageways and other applications requiring high volume
water dispersal.
1/3 HP permanent spilt capacitor motor with energy-conserving low
amp draw
Designed for continuous duty
Epoxy coated cast iron housing
1-1/2" FNPT (38 mm) discharge
Carbon/ceramic shaft seal
Upper sintered sleeve bearing and lower ball bearings
Vortex engineered composite impeller
Thermal overload protection
Multiple switch options for automatic operation
Multiple power cord lengths available
Muanual operation available
cCSAus listed
Product Specifications
Spec Sheet
O&M Manual
Item Number: 506420
Model Number: ES33D1-10
Little Giant, Red Lion Monarch Pumps, Products and Replacement Parts
Title 1/3 HP, Submersible Sump / Effluent Pump
Item Number 506420
Model Number ES33D1-10
Horsepower 1/3
Flow 52 GPM @ 5' of Head
Cord Length 10'
Shut Off 20'
Voltage 115
Hertz 60
Amps 5
Watts 475
Weight 28 lbs.
Height 9.3"
Width 11.8"
Length 9.8"
Head (ft) Flow (GPM) Head (m) Flow (LPM)
5 52 1.5 196.8
10 40 3.0 151.4
15 28 4.6 106.0
