18X30 RETURN GRILLE MEDIA FILTER

Distributor
Environmental & Combustion Controls
> Replacement Filters > Return Grill Filters

FC40R1830
Return Grill Media Air Filter, 18x30
Locate Distributors
Product Specifications Literature and
Documents
Overview

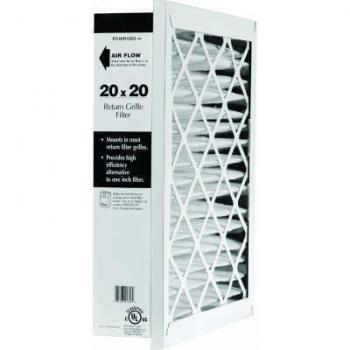

The Return Grille Filter provides high efficiency, long life
alternative to a 1" filter. It captures a significant amount of the
airborne particles in the air that circulates through the filter.

Features
o Mounts in most return filter grilles.
o Pleated for greater media capacity.
o Low pressure drop provides a comfortable air flow.
o Maintains equipment efficiency longer than standard filters.
o FC40 is MERV 10.
o FC20 is MERV 8.
Product Specifications Back To Top
Description 18X30 Return Grill Media Air Filter
Application Return Grill
Dimensions (in.) 18 in. x 30 in.
Dimensions (mm) 457 mm x 762 mm
Airflow Max.-Capacity (cfm) 1550 cfm
Airflow Max.-Capacity (m/hr) 2610 m/hr
Efficiency Standard Efficiency ranges are defined for small particles,
E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and
large particles, E3=3.0 to 10.0 microns.
Efficiency Standard Efficiency ratings are based on American Society
of Heating, Refrigerating and Air-Conditioning Engineers Standard
52.2-1999.
Fractional Efficiency E1=31%, E2=61%, E3=86%
Minimum Efficiency Reporting Value (Media Filters Only) MERV 10
Static Pressure Drop (in. w.c.) 0.12 at 300FPM
Type or Air Cleaner Media Air Cleaner
Literature and other Resources Download
Back To Top
Specification Data - (FC40R, FC20A Return Grille Filter)
direct mail postcard - (FC40R FC40R Return Grille Filter)
5x7 postcard - (FC40R FC40R Return Grille)
Download -Submit
