Product Data

KSCdirect Part #: GEN 22612-88
Description: 22612-88 BALL BEARING 1630-DC
MFG Part #: GEN 22612-88
UPC: 662300012154
Supplier: General Bearing
Standard Pack: Order QTY must be in multiples of 1
In Stock - Available for immediate shipment.

Your Price: $7.96 / EA

QTY :
For shipping rates, add item to cart.
* Quantity discounts may be available. Call 800-918-8939.
Alternatively, you may e-mail info@kscdirect.com for service.


22612-88 BALL BEARING 1630-DC

Supplier: General Bearing

Product Attributes

Brand General Bearing





Item Details
Part#: Part#: 22612-88

Manufacturer: General Brg.
Weight: 0.175 lbs.
Product Name: 20000 Extra Light Inch Series Ball Bearing

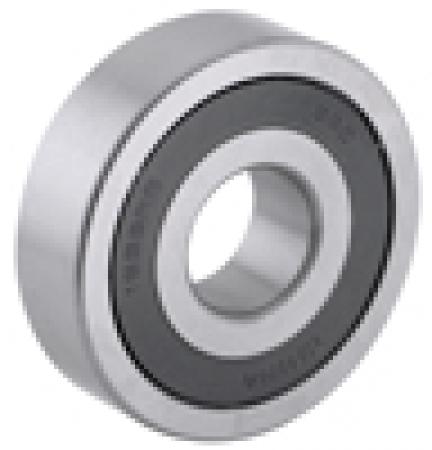

Description: Single Row Radial Bearing; 3/4" ID x 1 5/8" OD x 1/2" Wide; Double Sealed; No Snap Ring; Standard (ABEC 1)
389


Specifications
Bore TypeStraight Bore - Inch TypeInner Diameter3/4 in
Outside Diameter1 5/8 inWidth1/2 in
EnclosureDouble SealedSnap RingNo Snap Ring
MaterialSteelBearing TypeSingle Row Radial
Precision LevelStandard (ABEC 1)Radial Internal ClearanceC0 - Normal Clearance
Contact Angle0Outside Diameter TypeStraight Outside Diameter
Preload LevelNoneBall MaterialSteel
Cage MaterialPlastic or SteelCapacityStandard Capacity
Locking DeviceNo Locking DeviceLubricantGeneral Purpose
Number in SetSingle BearingOuter Ring Width1/2 in
Seal MaterialRubberSeal TypeContact Seals
Dynamic Load Rating1951.00 lbfStatic Load Rating [Max]1010.0 lbf
Fillet Radius0.031 inIndustry Standard Part #1630 2RS
Inner Ring Width1/2 inLimiting Speed5000 rpm
Number of Rows1

Product Information
Applications
  • Suitable for the majority of ABEC-1 bearing applications
  • Features
  • Ground raceways are 52100 chrome steel material with steel retainers
  • Maximum recommended speed is 5,000 rpm
  • Prelubricated with grease
