1606DC BR-9906

Item Details
Part#:	Part#: 21506-88
Manufacturer:	General Brg.
Weight:	0.035 lbs.

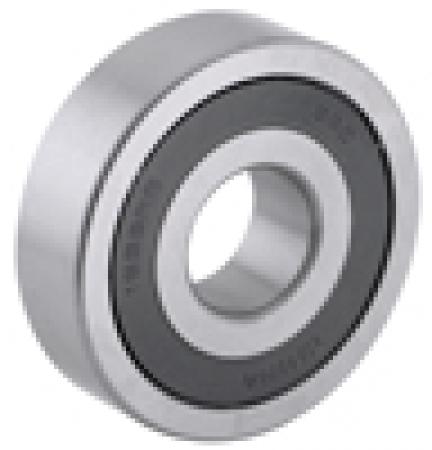

Product Name:	20000 Extra Light Inch Series Ball Bearing
Description:	Single Row Radial Bearing; 3/8" ID x 29/32" OD x 5/16" Wide; Double Sealed; No Snap Ring; Standard (ABEC 1)

389

Specifications
Bore Type	Straight Bore - Inch Type	Inner Diameter	3/8 in
Outside Diameter	29/32 in	Width	5/16 in
Enclosure	Double Sealed	Snap Ring	No Snap Ring
Material	Steel	Bearing Type	Single Row Radial
Precision Level	Standard (ABEC 1)	Radial Internal Clearance	C0 - Normal Clearance
Contact Angle	0	Outside Diameter Type	Straight Outside Diameter
Preload Level	None	Ball Material	Steel
Cage Material	Plastic or Steel	Capacity	Standard Capacity
Locking Device	No Locking Device	Lubricant	General Purpose
Number in Set	Single Bearing	Outer Ring Width	5/16 in
Seal Material	Rubber	Seal Type	Contact Seals
Dynamic Load Rating	607.00 lbf	Static Load Rating [Max]	291.0 lbf
Fillet Radius	0.016 in	Industry Standard Part #	1606 2RS
Inner Ring Width	5/16 in	Limiting Speed	5000 rpm
Number of Rows	1

Product Information

Applications

Suitable for the majority of ABEC-1 bearing applications

Features

Ground raceways are 52100 chrome steel material with steel retainers

Maximum recommended speed is 5,000 rpm

Prelubricated with grease

Keywords: General Bearing / Bearings / ball bearings, tapered roller bearings, spherical roller bearings, and cylindrical roller bearings THE GENERAL

Category:
[0] => BEARINGS AND POWER TRANSMISSION => BEARINGS => UNMOUNTED => BALL
[1] => SUPPLIER DIRECTORY => INDEPENDENT DISTRIBUTORS COOP => BEARINGS AND POWER TRANSMISSION => BEARINGS => UNMOUNTED => BALL

Kelly Legacy Part Number: 7484045

Kelly Catalog Sheet

                                                        BCA - General - GULF - SKF Ball Bearings




                                                                            R Light Inch Series

           5200 Light Series
           Double Row Ball Bearings
                                              Suffix Explantions
            Prefix Explanations               B        - 400 Angle of Contact                             RS      -   One Seal
            R     - Extra Light Inch Series   BMG      - 400 Angle of Contact Suitable for Universal      2RS     -   Two Seals
                    Bearing                              Mounting                                         2RSNR   -   Two Seals with Snap Ring
            S     - Spherical O.D.            DDHA1 - Two Rubber Seals Steel Retainer = ABEC1 Class       Z       -   Shield One Side
            WC - Wide Outer Case              NR       - Snap Ring                                        ZZ      -   Two Shields
                                                                                                          ZZZ     -   Two Shields with Snap Ring


                  Bearing         Stock            B e aring      Stock            Bearing       Stock              Bearing          Stock
Bearings




                                                   N umbe r      N umbe r         Number        Number
                  Num  ber       Num ber                                                                            Number          Number
                                                   627 ZZ
                 R4 Z99R4                   629 ZZ                  22810 88                   W308 CC
                 R14 77R14                  634ZZ                   22812 88                  S3609 2RS        7481360
                 R6 Z99R6                   635 ZZ                  23212 88
                                                  21104 88                                                  5203 KZZE
                  R6 77R6                  21405 88                 23214 88                  5204 KZZE
                 R8 Z99R8                  21406 88                 23216 88
                  R8 77R8                  21506 88                                                  5205 KZZE
                                                                                  24018 88                  5206 KZZE
                R10 Z99R10                 21507 88                 24020 88
                 R10 77R10                 21806 88                                                  5207 KZZE
                                                  21807 88                 24121 88
                 R14 77R14                 21808 88                 63204 ZZ      7481156            5208 KZZE
                R12 Z99R12                 22207 88                W205 CC        7481171            5210 KZZE
                 R14 77R14                 22208 88                                                  5303 A2RS        7481622
                                                  22209 88                S3506 2RS
                R14 Z99R14                 22210 88                S3507 2RS      7481206            5304 KZZE        7481626
                 R16 77R16                 22610 88                                                  5305 KZZE        7481630
                R16 Z99R16                 22612 88                S3208 2RS      7481211
                                                                                 S3509 2RS      7481220            5306 KZZE
                R18 Z99 R18                                                                                 5307 KZZE        7481638
                R20 DDHA1                                                 W 304 CC
                  608 2RS                                                 W305 CC                    5308 KZZE        7481640
                   608 ZZ                                                 W 306 FF                   5309 KZZE
                   626 ZZ                                                 W 307 CC                   5310 KZZE        7481648




                       Check your account history and place orders online at
                                       www.kellysupply.com
                      Contact your local kelly Supply representative for details.



                          CONTACT KELLY SUPPLY FOR LATEST PRICING & AVAILABILITY                          1-800-KELLYSU (535-5978)
           I24

Product Data

Your Price: $5.31 / EA
