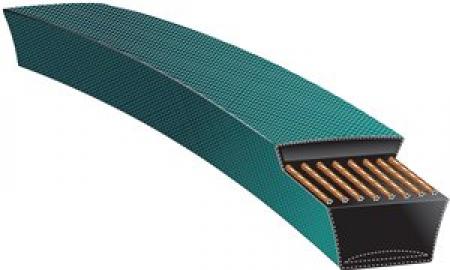

6925 GATES POWERATED VBELT
Aramid Tensile Cords combine limited stretch with extraordinary strength and durability.
Meets RMA oil and heat resistant standards.
Bareback construction for smooth clutching on shock loaded, backside-idler driven equipment.
Outside Circumference (In.) 25
View catalog page
Keywords: GATEBE GAT 6925 8423-6925 GATES RUBBER COMPANY BELT 072053005059 6925 GATES POWERATED VBELT
Category: [0] => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS
[1] => BEARINGS AND POWER TRANSMISSION => BELTS AND SHEAVES => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS
[2] => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS
[3] => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS => 5/8 WIDE => BEARINGS AND POWER TRANSMISSION => BELTS AND SHEAVES => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS
[4] => BEARINGS AND POWER TRANSMISSION => BELTS AND SHEAVES => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS => 5/8 WIDE => BEARINGS AND POWER TRANSMISSION => BELTS AND SHEAVES => BEARINGS AND POWER TRANSMISSION => BELTS => LIGHT-DUTY BELTS => POWERATED V-BELTS
Kelly Legacy Part Number: 3436925
Kelly Catalog Sheet INDUSTRIAL V-BELTS
Powerated V-Belts
Gates Power Rated Belts give coverage for hundreds of drives that no belt manufacturer has previously been able to
satisfactorily cover. In addition, the PowerRated line has recently been expanded to cover even more applications.
Gates Power Rated Belts are specifically designed to handle the severe operating conditions found on clutching, heavy
shock loaded, and backside idler driven lawn and garden equipment in the higher horsepower ratings. No light duty belt
assortment is complete today unless it includes Gates PowerRated V-Belts.
BEST BELT FOR LAWN & GARDEN TRACTORS
Belt Stock Belt Stock Belt Stock
Size Size Size
Number Number Number Number Number Number
6820 1/2 X 20 6839 1/2 X 39 6932 21/32 X 32
6821 1/2 X 21 6840 1/2 X 40 6933 21/32 X 33
6822 1/2 X 22 6841 1/2 X 41 ---- 6934 21/32 X 34
6823 1/2 X 23 6842 1/2 X 42 ---- 6935 21/32 X 35
6824 1/2 X 24 6843 1/2 X 43 ---- 6936 21/32 X 36
6825 1/2 X 25 6844 1/2 X 44 ---- 6937 21/23 x 37
6826 1/2 X 26 6845 1/2 X 45 ---- 6938 21/32 X 38 Series 68
6827 1/2 X 27 6846 1/2 X 46 ---- 6939 21/32 X 39
6828 1/2 X 28 6847 1/2 X 47 ---- 6940 21/32 X 40 ----
Power Transmission
6848 1/2 X 48 ----
6829 1/2 X 29 6941 21/32 X 41
6849 1/2 X 49 ----
6830 1/2 X 30 6942 21/32 X 42
6850 1/2 X 50 ----
6831 1/2 X 31 6943 21/32 X 43
6852 1/2 X 52
6832 1/2 X 32 6895 1/2 X 95 6944 21/32 X 44

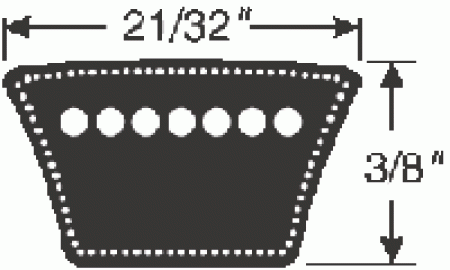

6833 1/2 X 33 6925 21/32 X 25 6945 21/32 X 45
6834 1/2 X 34 6926 21/32 X 26 ---- 6946 21/32 X 46
6947 21/32 X 47
6835 1/2 X 35 6927 21/32 X 27 Series 69
6948 21/32 X 48 ----
6836 1/2 X 36 6929 21/32 X 29
6949 21/32 X 49
6837 1/2 X 37 6930 21/32 X 30
6950 21/32 X 50
6838 1/2 X 38 6931 21/32 X 31
6961 21/32 X 61
SIZES AVAILABLE 3/8" X 17" THRU 21/32" X 99"
To find the correct length for a V-belt:
L = Length
To find the unknown outside
C = Center Distance This formula also is used to find diameter sheave of a drive:
D = Outside Diameter of Large Sheave or Sprocket the length of a chain for a chain Take the outside diameter of the
d = Outside Diameter of Small Sheave or Sprocket
drive. driver sheave times the RPM of the
driver and divide this figure by the
Ratios below 3 to 1 Ratios above 3 to 1 RPM of the driven shaft.
(D-d)2
2 (C) + 1.57 (D + d) = L 2 (C) + 1.57 (D + d) + =L Example:
4 (C)
1750 RPM of Sheave
Example: 10 and 8 Sheaves Example: 12 and 3 Sheaves
x 6 O.D. Sheave
16 Center Distance 24 Center Distance
10,500
2 (16) + 1.57 (10 + 8) = L
(12 - 3)2
32 + 28.26 = 60.26 2 (24) + 1.57 (12 + 3) =L DIVIDED BY RPM
4 (24)
Of other Sheave
13.125 = outside diameter of other sheave
48+ 23.55 = 72.39 800 10,5000
This formula is also used to find the
outside diameter of the unknown sprocket
in a chain drive.
