THERMO-AG800 1/2 GATES SPRAY HOSE

Product Detail      Product ID  44651371

	Part #



	Product Description

 1/2 X 300 THERMO AG 800

	UPC

 072053642100

	Category Hierarchy

  Industrial Hose  -> Acid-Chemical Hose  -> Thermo AG® 800 Ag Spray

Product Images

	Product Features

Application
Recommended For	Spraying lawns, trees and similar applications with diluted solutions of water and oil based pesticides and herbicides. For pesticides or herbicides containing more than 2% Toluene or Xylene, use Gates 77B.

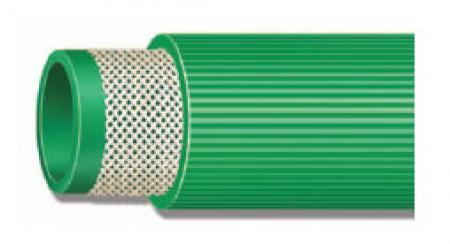

Construction
Construction: Cover	Type G (PVC). Green. Striated.
Construction: Reinforcement	Synthetic, high tensile textile cord.
Construction: Tube	Type G (PVC). Green.
Notes
Special Order Requirements	None.
Packaging
Branding	Continuous ink brand. Example: '1/2" 800 PSI WP SPRAY HOSE JAPAN'
Packaging	All lengths coiled in a polyethylene bag.
Remnant Lengths	None.
Standard Pack	300
Stock (X) or Minimum Order Qty.	X
Specifications
Min. Bend Radius (In.)	5.0
Minimum Bend Radius (mm)	127
Nom. I.D. (In.)	1/2
Nom. I.D. (mm)	12.7
Nom. O.D. (In.)	.84
Nom. O.D. (mm)	21.3
Temperature
Temperature	-10°F to +130°F (-23°C  to +55°C). Maximum temperature dependent on pesticide/herbicide or chemicals conveyed. For temperatures above +120°F (+49°C), contact Denver Product Application (303) 744-5070.
Weight
Weight (Lbs.)	.18
Wt. Per Ft. (Kg)	0.08
Working Pressure
Max. Working Pressure	800
Max. Working Pressure (MPa)	5.52
Suction (In. Hg)	25.0
Suction (mm Hg)	635

Datasheet References

Safety and Usage Disclaimer
