1/2 19B 1BRD GATES HOSE
 | | Product Detail | | | | | |
32192908
|
1/2XRL (250) 19B 072053645286 Industrial Hose -> Air and Multi-Purpose Hose -> 19B Plant Master®  |
| Application |
| Recommended For | Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to 120°F) and lubricating oils (to 212°F). Excellent weather and ozone resistance. Note: Not recommended for constant contact with fuels. Not recommended for Bio-Diesel fuels.
|

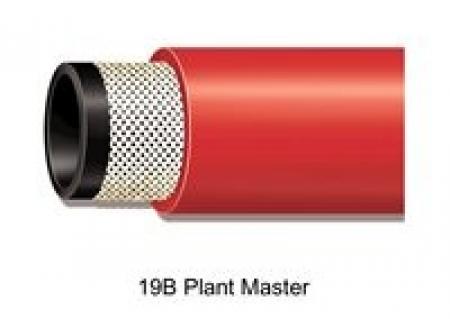

| Construction |
| Construction: Cover | Type C2 (Modified Nitrile). Red.
|
| Construction: Reinforcement | Braided, high tensile synthetic textile cord.
|
| Construction: Tube | Type C (Nitrile). Black.
|
| Cover Material | Modified Nitrile
|
| Cover Type | C2
|
| Tube Material | Nitrile
|
| Tube Type | C
|
| International Standards |
| Standards: Cover | RMA (Class B) Medium oil resistance. Mil-H-2815G Section 3.12.2 off-gassing for breathing applications such as supplied air respirators, through 1/2" I.D. Nonconductive at 1000 volts D.C. Electrical resistance is greater than one megohm per inch when subjected to 1000 volts D.C. Storage and use may adversely affect electrical properties.
|
| Standards: Tube | RMA (Class A) High oil resistance.
|
| Notes |
| Special Order Requirements | Special production runs require minimum order quantities of 5,000 feet.
|
| Packaging |
| Branding | Continuous ink brand. Example: 'Gates® 19B Plant Master® Multi-Purpose 3/8" (9.5mm) 250 PSI (1.72MPa) WP Made in U.S.A.'
|
| Packaging | 1 1/4" & over: Packaged in 250 feet to 400 feet reels. Maximum 3 pieces. Minimum length 50 feet.
3/16" through 1/2": Packaged in 500 feet to 750 feet reels. Maximum 3 pieces. Minimum length 50 feet.
5/8" through 1": Packaged in 400 feet to 650 feet reels. Maximum 3 pieces. Minimum length 50 feet.
|
| Remnant Lengths | None.
|
| Standard Pack | 625
|
| Stock (X) or Minimum Order Qty. | X
|
| Specifications |
| Min. Bend Radius (In.) | 5.0
|
| Minimum Bend Radius (mm) | 127
|
| Nom. I.D. (In.) | 1/2
|
| Nom. I.D. (mm) | 12.7
|
| Nom. O.D. (In.) | .84
|
| Nom. O.D. (mm) | 21.3
|
| Temperature |
| Temperature | -40°F to +212°F (-40°C to +100°C) continuous service.
|
| Weight |
| Weight (Lbs.) | .22
|
| Wt. Per Ft. (Kg) | 0.09
|
| Working Pressure |
| Max. Working Pressure | 250
|
| Max. Working Pressure (MPa) | 1.72
|
| Suction (In. Hg) | 25.0
|
| Suction (mm Hg) | 635
|
Keywords: GATEHO GAT 32192908 32192908 GATES RUBBER COMPANY HOSE 72053645286 1/2 19B 1BRD GATES HOSE
Category: [0] => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[1] => HOSE, TUBING, & FITTINGS => INDUSTRIAL HOSE => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[2] => HYDRAULICS & PNEUMATICS => PNEUMATICS => HOSE & TUBING => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[3] => AGRICULTURAL EQUIPMENT AND PARTS => HOSE => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[4] => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[5] => HOSE, TUBING, & FITTINGS => INDUSTRIAL HOSE => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[6] => HYDRAULICS & PNEUMATICS => PNEUMATICS => HOSE & TUBING => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
[7] => HOSE, TUBING, & FITTINGS => AIR AND MULTIPURPOSE HOSE => 19B Plant Master => AGRICULTURAL EQUIPMENT AND PARTS => HOSE => HOSE, TUBING, & FITTINGS => MULTI-PURPOSE HOSE
Kelly Legacy Part Number: 2271064
Kelly Catalog Sheet Industrial Hoses
Multi-Purpose
Recommended For: Applications
requiring a premium grade braided hose,
such as air tools in factories, quarries,
19B Plant Master construction projects, ship-building and
railroads; plus other applications including
Industrial Hose
ID OD Braid Max Suction Min. Wt Per Stock those requiring excellent resistance to
(In.) (In.) WP (in Hg) Bend Ft Number
(PSI) Radius (Lbs) gasoline, kerosene, fuel oil and lubricating
(In.) oils.
1/4 .50 1 250 30.0 3.0 .09 Construction: Tube: Type C
1/4 .62 2 315 30.0 3.0 .15 (Nitrile). Black
5/16 .62 1 250 30.0 3.0 .14
3/8 .69 1 250 30.0 3.0 .16 Reinforcement: Braided, high tensile
3/8 .75 2 315 30.0 3.0 .20 systhetic textile cord.
1/2 .84 1 250 25.0 5.0 .22 Cover: Type C2 (Modified Nitrile).
1/2 .88 2 315 25.0 5.0 .25
5/8 .94 1 250 20.0 6.0 .24 Red.
3/4 1.09 1 250 20.0 6.0 .30 Temperature: -40F to 212F.
3/4 1.19 2 315 20.0 6.0 .41
1 1.38 1 250 10.0 8.0 .43
1 1.50 2 315 20.0 8.0 .60
OUR BEST MULTI-PURPOSE HOSE!
Recommended For: Applications requiring a
Terminator premium-quality, multi-purpose hose with superior
ID OD Max Suction Min. Wt Per Stock abrasion resistance for air, oil and some chemical
(In.) (In.) WP (in Hg) Bend Ft Number applications. Excellent durability for extra long life
(PSI) Radius (Lbs) in these applications: mining, air drill, construction,
(In.)
poultry plants and other severe service. Excellent
1/4 .570 501 30 3 .12 ---- weather and ozone resistance.
3/8 .750 501 20 3 .19
1/2 .890 501 25 5 .25 Temperature: -40F to 212F continuous
3/4 1.200 501 15 6 .40 service.
1 1.515 501 10 8 .58
1 1/4 1.780 501 10 10 .73
1 1/2 2.085 501 10 12 .86 ----
2 2.640 501 10 14 1.20 ----
