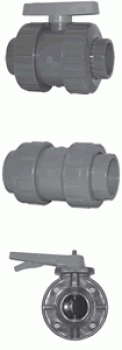

Ball Valves / Ball Check Valves / Butterfly Valves

Ideally suited for the most demanding industrial, commercial, agricultural and irrigation environments where full port, full flow and repair ability are required.The external seat wear adjustment saves time and energy. No need to remove thevalve cartridge from the system. Make sure the system is depressurized. With thevalve in place, simply close it, then tighten ( 1/4-turn maximum) the union nut onthe side featuring the word "ADJUST." This will increase the load ofthe carrier on the ball to compensate for seat wear. Remember: All union nutconnections for 1/2" through 2" plastic valves should be "handtight."
. Pressure rated up to 235 PSI, non-shock water at 73F
. Rated for vacuum service to 26 in Hg with less than 1 in Hg loss
. PVC body with EPDM O-ring eliminates process and atmosphericcorrosion
. Full port design - same as schedule 80 pipe - minimizesturbulence at high flow rates
. Bi-directional: can be installed in either direction

Used in a variety of industrial and chemical processingapplications the True Union Ball Check Valve design provides easy access forin-line installation and servicing. They are installed to protect pumps, filtersand other process equipment from damage and are also effective at preventingliquid storage tanks from unwanted drain down.
. Pressure rated up to 235 PSI, non-shock water at 73F
. PVC body and ball with EPDM O-ring eliminates process andatmospheric corrosion
. Full port design - same as schedule 80 pipe - minimizesturbulence at high flow rates
. Reliable back-flow prevention when installed vertically orhorizontally

Ideally suited for the most demanding industrial, commercial, agriculturaland irrigation environments.
. Pressure rating: 150 PSI, non-shock water at 73F
. Corrosion resistant thermoplastic body, disc and handle
. Full boot seal for durable performance
. ANSI B16.5 Class 150 Flange Pattern
. Locking polypropylene handle with position indicator
. 100% bubble tight seal
. Blowout-proof stem design
