9BV,2"NPT,UNIBODY,BRZ,HVY PATT
Apollo 9A-108-01 Ball Valve
Series: Bronze, Unibody, Heavy Pattern - Saturn
Configuration: FNPT
Variation:
Size: 2" inches
Options: Standard
Apollo ... from Conbraco ....

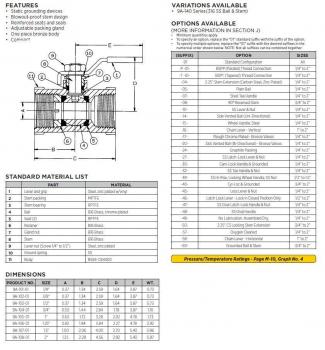

9A-100 Series
Bronze Uni-Body Heavy Pattern Ball Valve
Threaded, 600 psig WOG, Cold Non-Shock. 150 psig Saturated Steam.
Federal Specification: WW-V-35C, Type: II, Composition: BZ, Style: 3.
MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends.
FEATURES
Static grounding devices Blow-out-proof stem design
RPTFE seats and seals Adjustable packing gland
One piece bronze body Chromium plated ball
Compact
STANDARD MATERIAL LIST
1. Lever and grip Steel, zinc plated w/vinyl 7. Gland nut B16
2. Stem packing RPTFE 8. Stem B16
3. Stem bearing RPTFE 9. Lever nut ( S c re 1/4 to 1/2) Steel, zinc plated
w
4. Ball B16, chrome plated 10. Ground spring SS
5. Seat (2) RPTFE 11. Body B584-C84400
6. Retainer B16
VARIATIONS AVAILABLE:
9A-140 Series (316 SS Ball & Stem)
OPTIONS AVAILABLE:
(SUFFIX) OPTION SIZES
-03- 1-1/4 CS Stem Extension 1/4 to 2
-04- 2-1/4 CS Stem Extension 1/4 to 2
-05- Plain Ball 1/4 to 2
-07- Steel Tee Handle 1/4 to 2
-08- 90 Reversed Stem 3/4 to 2
-10- SS Lever & Nut 1/4 to 2
-14- Side Vented Ball (Uni-Directional) 1/4 to 2
-15- Wheel Handle, Steel 1/4 to 2
-16- Chain Lever - Vertical 1 to 2
-17- Rough Chrome Plated - Bronze Valves 1/4 to 2
-20- Slot Vented Ball (Bi-Directional) - Bronze Valves 1/4 to 2
-24- Graphite Packing 1/4 to 2
-27- SS Latch-Lock Lever & Nut 1/4 to 2
-30- Cam-Lock Handle & Grounded 1/4 to 2
-32- SS Tee Handle & Nut 1/4 to 2
-40- Cyl-Loc & Grounded 3/4 to 2
-45- Less Lever & Nut 1/4 to 2
-46- Latch Lock Lever - Lock in Closed Position Only 1/2 to 2
-47- SS Oval Latch-Lock Handle & Nut 1/4 to 1-1/4
-48- SS Oval Handle 1/4 to 2
-49- Assembled Dry 1/4 to 2
-50- 2-1/4 CS Locking Stem Extension 3/4 to 2
-57- Oxygen Cleaned 1/4 to 2
BRONZE UNI-BODY HEAVY PATTERN -58- Chain Lever - Horizontal 1 to 2
SATURN BALL VALVE -60- G rounded Ball & Stem 3/4 to 2
NUMBER SIZE A B C D E Wt. -P01- BSPP (Parallel) Thread Connection 1/4 to 2
-T01- BSPT (Ta p e red) Thread Connection 1/4 to 2
9A-101-01 1/4" .37 1.34 2.59 1.64 3.87 .73
9A-102-01 3/8" .37 1.34 2.59 1.64 3.87 .73
9A-103-01 1/2" .37 1.34 2.59 1.64 3.87 .73
9A-104-01 3/4" .50 1.44 2.84 1.78 3.87 1.10
9A-105-01 1" .63 1.72 3.28 2.02 4.78 1.73 For Pressure/Temperature Ratings,
9A-106-01 1-1/4" .82 1.94 3.84 2.27 4.78 2.92 Refer to Page M-8, Graph No. 4
9A-107-01 1-1/2" 1.00 2.06 4.00 2.70 5.43 3.96
9A-108-01 2" 1.25 2.29 4.56 2.92 5.43 5.97
COPYRIGHT 2008 CONBRACO IND., INC. PRINTED IN U.S.A. C-1
