4BV,2"NPT,3WAY,BRZ,SS LVR/NUT
Apollo 70-608-10 Ball Valve
Series: Bronze
Configuration: 3-Way NPT
Variation:
Size: 2" inches
Options: Stainless Steel Lever & Nut
Apollo ... from Conbraco ....
Marine Valves and Fittings

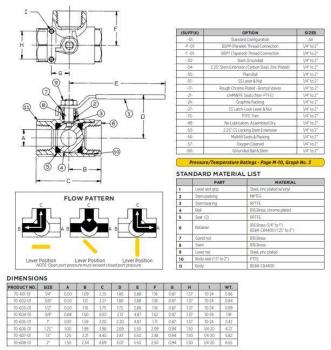

Series 70-600-10 Three-Way Diverter Valve
Fuel tank selection, oil transfer, and water tank selection are
only a few of the uses for this versatile valve.
Features:
Bronze Body
Chromium Plated Bronze Ball
RPTFE Seats And Stuffing Box Ring FLOW PATTERN
Stainless Steel Lever And Nut NOTE: Open port
Mounting/Bonding Pads pressure must exceed
Closed port pressure
Blow-Out-Proof Stem Design
400 psig Service Rating
Adjustable Packing Gland
Also available in all Stainless Steel. Specify 76-600 Series.
Dimensions (in.)
Number Size A B C D E F G H I WT/100
70-603-10 1/2" 0.50 1.09 2.25 1.75 3.87 1.18 0.87 1.37 10-24 76
70-604-10 3/4" 0.68 1.50 3.00 2.12 4.87 1.62 0.87 1.37 10-24 231
70-605-10 1" 0.81 1.59 3.18 2.25 4.87 1.71 0.87 1.37 10-24 204
70-606-10 1 1/4" 1.00 1.97 3.95 2.69 5.50 2.01 0.93 1.50 1/4-20 385
70-607-10 1 1/2" 1.25 2.21 4.40 2.87 5.50 2.38 0.94 1.50 1/4-20 522
70-608-10 2" 1.50 2.34 4.69 3.00 5.50 2.50 0.94 1.50 1/4-20 620
Ball Type Fuel Shut-Off Valve
Quality bronze valve features mounting ears for quick easy
installation, and positive mounting. Can also be used for bonding.
Features:
Surface Mounted
400 psig Service Rating
RPTFE Seats And Seals
NPT
All Wetted Metallic Parts Are Both Ends
Brass Or Cast Bronze
(Optional Tee
Optional Tee Handle Handle Illustrated)
Fast 90 On-Off Turn
Tested 100 psig Air Under Water
Stainless Steel Lever And Nut
Optional With Stainless Steel
Ball And Stem Dimensions (in.)
NUMBER SIZE A B C D E WT/100
78-248-10 1/4" 0.43 1.12 2.25 1.78 3.87 68
78-250-10 3/8" 0.50 1.12 2.25 1.78 3.87 68
78-256-10 1/2" 0.50 1.12 2.25 1.78 3.87 65
78-438-10 3/4" 0.68 1.50 3.00 2.12 4.87 140
5
