Catalog sheet:
CDS-John Blue Company makes the Best even Better with NGP, maintaining historical Accuracy, Performance
and Dependability, while taking Serviceability to a new level. The CDS-John Blue NGP is designed to meet all of
your precision application needs. The NGP is the result of tremendous efforts to
meet the ever-changing needs of the agricultural marketplace. All CDS-John
Blue NGP and existing piston pumps have been
engineered and extensively field-tested
to achieve the Best liquid applicator
pump available today.
The NGP offers excellent enhance-
ments, plus all the features and
benefits of the proven L & LM
pumps growers have successfully
used for many years. CDS-John
Blues reputation for superior quality
has been proven through time by
meeting the demands of generations
of agricultural professionals. The
NGP gives the grower the most
modern engineering design and technology available in pumps today. The best of the old is combined with the
new and the footprint is the same as the LM pumps for ease of interchangeability. Theres more, you can expand
the basic NGP to variable rate applications in the future, when you are ready!
NGP Pump Models:
NGP-6055 _ _ _ _ _21.0 gpm max flow _ _ _ _ _ _120 psi max pressure _ _ _ _ _Single Piston
NGP-7055 _ _ _ _ _34.2 gpm max flow _ _ _ _ _ _120 psi max pressure _ _ _ _ _Single Piston
NGP-8055 _ _ _ _ _42.0 gpm max flow _ _ _ _ _ _120 psi max pressure _ _ _ _ _Double Piston
NGP-9055 _ _ _ _ _68.4 gpm max flow _ _ _ _ _ _120 psi max pressure _ _ _ _ _Double Piston
NGP SERIES
METERING PUMP
PARTS AND
INSTRUCTIONAL MANUAL

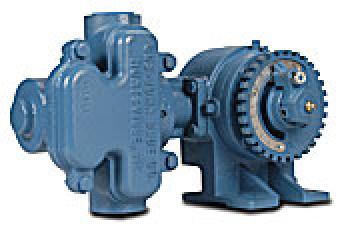

NGP-6055 Shown
CDS-JOHN BLUE COMPANY
DIVISION OF ADVANCED SYSTEMS TECHNOLOGY, INC.
290 Pinehurst Drive - Huntsville, Alabama 35806
P.O. Box 1607 - Huntsville, Alabama 35807
Telephone: (256) 721-9090 - FAX: (256) 721-9091 - Toll Free: 1-800-253-2583
Printed in U.S.A. 12-M-43 Rev 3/07
TABLE OF CONTENTS
Safety Precautions 2
Note to the Owner . 2
Table of Contents .. 3
Pump Specifications . 3
Pump Cross-Section Schematic . 4
Installation .. 5
Pump Setting ........ 6
Initial Start-Up of Pump ... 8
Pump Calibration ..... 8
Pump Accuracy . 8
Maintenance ...... 9
Storage ... 9
Service Maintenance .... 10
Crankcase Disassembly ... 12
Parts List NGP-6055 & NGP-7055 [Single Piston] .. 14
Parts List NGP-8055 & NGP-9055 [Double Piston] .... 16
Parts List Optional Clutch .... 18
Dimensional Footprints . 20
Trouble Shooting ...... 21
Notes ... 22
Warranty ..... 24
PUMP SPECIFICATIONS
Universal to NGP Series Pumps
Operating Pressure: MAX 120 PSI
Operating Speed: MAX 450 RPM
Rotation: Clockwise or Counter clockwise
Plumbing: 1-1/2 NPT (f) Inlet & Outlet Ports H
Drive: No. 50 Roller Chain
Crankcase Lubrication: SAE 90 Gear Oil
Grease Zerks: Multipurpose Grease
W
L
Unique to NGP Series
Pump : NGP-6055 NGP-7055 NGP-8055 NGP-9055 Series
Output Volume 21.0 34.2 42.0 68.4 Max Gal/Min
Output Displacement .047 .076 .093 .152 Max Gal/Rev
Required H.P. 2.25 3.00 4.50 6.00 Theoretical
Physical Dimensions 10x15x9 10x19x11 14x15x11 14x19x13 W x L x H (in.)
Weight 65 105 125 155 Lbs.
3
TABLE OF CONTENTS
Safety Precautions 2
Note to the Owner . 2
Table of Contents .. 3
Pump Specifications . 3
Pump Cross-Section Schematic . 4
Installation .. 5
Pump Setting ........ 6
Initial Start-Up of Pump ... 8
Pump Calibration ..... 8
Pump Accuracy . 8
Maintenance ...... 9
Storage ... 9
Service Maintenance .... 10
Crankcase Disassembly ... 12
Parts List NGP-6055 & NGP-7055 [Single Piston] .. 14
Parts List NGP-8055 & NGP-9055 [Double Piston] .... 16
Parts List Optional Clutch .... 18
Dimensional Footprints . 20
Trouble Shooting ...... 21
Notes ... 22
Warranty ..... 24
PUMP SPECIFICATIONS
Universal to NGP Series Pumps
Operating Pressure: MAX 120 PSI
Operating Speed: MAX 450 RPM
Rotation: Clockwise or Counter clockwise
Plumbing: 1-1/2 NPT (f) Inlet & Outlet Ports H
Drive: No. 50 Roller Chain
Crankcase Lubrication: SAE 90 Gear Oil
Grease Zerks: Multipurpose Grease
W
L
Unique to NGP Series
Pump : NGP-6055 NGP-7055 NGP-8055 NGP-9055 Series
Output Volume 21.0 34.2 42.0 68.4 Max Gal/Min
Output Displacement .047 .076 .093 .152 Max Gal/Rev
Required H.P. 2.25 3.00 4.50 6.00 Theoretical
Physical Dimensions 10x15x9 10x19x11 14x15x11 14x19x13 W x L x H (in.)
Weight 65 105 125 155 Lbs.
3
LOADED RADIUS
The measurement for the loaded radius must be from the Manufacturer of the tire or be measured under loaded
conditions. The loaded radius tire is always the tire that has the first drive sprocket attached to its hub.
Ground Wheel Drive Arrangement
Measure the loaded radius from the center of the hub to the bottom of
the tire where it rests on the ground.
Press Wheel Drive Arrangement
Measure the loaded radius from the center of the press wheel shaft to
where the wheel rests against the tire. The press wheel must be
engaged for normal operation to give an accurate reading.
SWATH WIDTH
To determine the swath width, count the number of outlets and multiply
by the distance (inches) between any two outlets, nozzles, or shanks.
This assumes that all outlets are equally spaced, if outlets are not evenly
spaced, figure the entire length of the boom or toolbar from end nozzle
to end nozzle and allow for coverage beyond the ends.
For example: an 11 row boom at 30 would have a swath width of 330
SETTING THE PUMP
Read the desired pump setting from the bottom scale on the pump setting chart. Loosen the setting pointer nut
and rotate the setting hub until the setting pointer is over the desired setting. The 115681-01 setting wrench will
facilitate rotation of the setting hub. Once proper pump setting is achieved, tighten the setting pointer nut.
EXAMPLE:
If applicator is equipped with a NGP-6055 series pump and
11L x 15 tires, a 60 tooth drive sprocket, a 16 tooth pump driven SET LOADED RADIUS AGAINST
SPROCKET RATIO
sprocket, and it is desired to apply 33 gallons per acre on a 360
SET SWATH WIDTH
swath. The following steps will determine correct pump setting: AGAINST ARROW
1. Set Loaded Radius of tire (13.5) under the sprocket
combination of 16 to 60 in the top window.
2. Set the swatch width (360) under the arrow in the window.
3. Read the pump setting of 9 above 33 gallons per acre
on the NGP-6055 scale.
4. Set the pump to setting 9 to achieve 33 gallons per acre
READ PUMP SETTING
Note: The max speed scale indicator is approx 9 mph to avoid
exceeding maximum 450 pump rpm.
7
LOADED RADIUS
The measurement for the loaded radius must be from the Manufacturer of the tire or be measured under loaded
conditions. The loaded radius tire is always the tire that has the first drive sprocket attached to its hub.
Ground Wheel Drive Arrangement
Measure the loaded radius from the center of the hub to the bottom of
the tire where it rests on the ground.
Press Wheel Drive Arrangement
Measure the loaded radius from the center of the press wheel shaft to
where the wheel rests against the tire. The press wheel must be
engaged for normal operation to give an accurate reading.
SWATH WIDTH
To determine the swath width, count the number of outlets and multiply
by the distance (inches) between any two outlets, nozzles, or shanks.
This assumes that all outlets are equally spaced, if outlets are not evenly
spaced, figure the entire length of the boom or toolbar from end nozzle
to end nozzle and allow for coverage beyond the ends.
For example: an 11 row boom at 30 would have a swath width of 330
SETTING THE PUMP
Read the desired pump setting from the bottom scale on the pump setting chart. Loosen the setting pointer nut
and rotate the setting hub until the setting pointer is over the desired setting. The 115681-01 setting wrench will
facilitate rotation of the setting hub. Once proper pump setting is achieved, tighten the setting pointer nut.
EXAMPLE:
If applicator is equipped with a NGP-6055 series pump and
11L x 15 tires, a 60 tooth drive sprocket, a 16 tooth pump driven SET LOADED RADIUS AGAINST
SPROCKET RATIO
sprocket, and it is desired to apply 33 gallons per acre on a 360
SET SWATH WIDTH
swath. The following steps will determine correct pump setting: AGAINST ARROW
1. Set Loaded Radius of tire (13.5) under the sprocket
combination of 16 to 60 in the top window.
2. Set the swatch width (360) under the arrow in the window.
3. Read the pump setting of 9 above 33 gallons per acre
on the NGP-6055 scale.
4. Set the pump to setting 9 to achieve 33 gallons per acre
READ PUMP SETTING
Note: The max speed scale indicator is approx 9 mph to avoid
exceeding maximum 450 pump rpm.
7
INITIAL PUMP START UP
Verify that all installation guidelines have been followed as outlined in the installation section of this manual.
Fill the tank full of water to test for leaks in the plumbing system and output of the pump.
Fully open the valve at the tank allowing water to fill the suction line and check for leaks.
Set the pump to pump setting 10.
Before installing nozzles or orifices (if used), prime the pump and purge the system of air and foreign
material by slowly pulling the applicator 100 to 200 yards.
Turn off the valve at the tank, open strainer, check for foreign material and clean the screens.
The CDS John Blue flow divider is automatic and requires no calibration; however, if nozzles or orifices
are used, verify that the orifices are sized properly as to not produce high discharge pressure.
Pull the machine over known acreage and verify the application accuracy with water prior to field application
of chemical. Note that tank level marks can give false readings if read on uneven ground.
PUMP CALIBRATION
The NGP pump is calibrated from the factory; however, if the setting scale, hub, or pointer is replaced, use the
following procedure to calibrate the pump output with scale readings.
Remove the valve cover and outboard cylinder (see maintenance section).
Set the pump on pump setting 5 for all pump sizes.
Rotate the crankshaft until the piston is as far in as it will go. Measure the distance from the end of the
piston to the inboard cylinder flange. Rotate the crankshaft until the piston is as far out as it will go and
measure again to the same place. The difference in length is the stroke length, which at pump setting 5
should be 9/16 for the NGP-6055 & NGP-8055 or 15/16 for the NGP-7055 & NGP-9055.
If the distance is less than the required amount, reset the pointer at a higher setting, if it is greater; reset the
pointer at a lower setting. Repeat this procedure to obtain the required measurement.
Once accomplished, loosened the setting scale screws until the 5 is directly under the pointer and secure
the scale in position with the three scale screws.
Replace the outboard cylinder and valve cover, making sure that the valves are in their proper orientation as
covered under the maintenance section.
PUMP ACCURACY
A catch test may be performed to verify accuracy, not as a calibration method, by priming the pump and
catching all of the pumped fluid from the discharge for a known number of revolutions. See chart below:
Pump Size Pump Setting # of Revolutions Total Pump Output
NGP-6055 8 10 3 Pints
NGP-7055 8-1/4 10 5 Pints
NGP-8055 8 10 6 Pints
NGP-9055 8-1/4 10 10 Pints
8
INITIAL PUMP START UP
Verify that all installation guidelines have been followed as outlined in the installation section of this manual.
Fill the tank full of water to test for leaks in the plumbing system and output of the pump.
Fully open the valve at the tank allowing water to fill the suction line and check for leaks.
Set the pump to pump setting 10.
Before installing nozzles or orifices (if used), prime the pump and purge the system of air and foreign
material by slowly pulling the applicator 100 to 200 yards.
Turn off the valve at the tank, open strainer, check for foreign material and clean the screens.
The CDS John Blue flow divider is automatic and requires no calibration; however, if nozzles or orifices
are used, verify that the orifices are sized properly as to not produce high discharge pressure.
Pull the machine over known acreage and verify the application accuracy with water prior to field application
of chemical. Note that tank level marks can give false readings if read on uneven ground.
PUMP CALIBRATION
The NGP pump is calibrated from the factory; however, if the setting scale, hub, or pointer is replaced, use the
following procedure to calibrate the pump output with scale readings.
Remove the valve cover and outboard cylinder (see maintenance section).
Set the pump on pump setting 5 for all pump sizes.
Rotate the crankshaft until the piston is as far in as it will go. Measure the distance from the end of the
piston to the inboard cylinder flange. Rotate the crankshaft until the piston is as far out as it will go and
measure again to the same place. The difference in length is the stroke length, which at pump setting 5
should be 9/16 for the NGP-6055 & NGP-8055 or 15/16 for the NGP-7055 & NGP-9055.
If the distance is less than the required amount, reset the pointer at a higher setting, if it is greater; reset the
pointer at a lower setting. Repeat this procedure to obtain the required measurement.
Once accomplished, loosened the setting scale screws until the 5 is directly under the pointer and secure
the scale in position with the three scale screws.
Replace the outboard cylinder and valve cover, making sure that the valves are in their proper orientation as
covered under the maintenance section.
PUMP ACCURACY
A catch test may be performed to verify accuracy, not as a calibration method, by priming the pump and
catching all of the pumped fluid from the discharge for a known number of revolutions. See chart below:
Pump Size Pump Setting # of Revolutions Total Pump Output
NGP-6055 8 10 3 Pints
NGP-7055 8-1/4 10 5 Pints
NGP-8055 8 10 6 Pints
NGP-9055 8-1/4 10 10 Pints
8
PARTS LISTING NGP-6055 & NGP-7055
NGP-6055 NGP-7055 NGP-6055 NGP-7055
ITEM PART DESCRIPTION PART # PART # ITEM PART DESCRIPTION PART # PART #
1 KEY L-1020 L-1020 54 GREASE ZERK H-30 H-30
2 SPROCKET RC50-18T 112661-01 112661-01 55 STUFFING BOX 115790-01 115690-01
-K NO SPROCKET NOT USED NOT USED -S STAINLESS 115790-01S 115690-01S
-R SPROCKET RC40-18T 113905-01 113905-01 56 GASKET - INBOARD CYL. 115710-01 115710-01
3 5/16 X 3/8 SET SCREW 90532 90532 -U FUMIGANT 104826-02 104826-02
4 GREASE FITTING H-28 H-28 57 STUFFING BOX INSERT L-1031-2 L-1031-2
5 1/4 X 3/8 SET SCREW 90530 90530 -S STAINLESS NOT USED NOT USED
6 SPROCKET SPACER 115625-01 115625-01 58 PACKING - SNAP RING L-1042 L-1042
7 O'RING S-316 S-316 59 O'RING S-316 115604-01
8 THRUST WASHER 115626-01 115626-01 -S STAINLESS 104824-01 115612-01
9 5/16 X 1HEX BOLT 90637 90637 -U FUMIGANT 104824-01 115612-01
10 OIL SEAL 115621-01 115621-01 60 O'RING L-3031 A-2848
11 COVER PLATE 115723-01 115623-01 -S STAINLESS 114768-01 114870-01
12 BEARING L-3019 L-3019 -U FUMIGANT 114768-01 114870-01
13 CONNECTING ROD L-1008-A 113630-01 61 DISCHARGE VALVE 115707-91 115607-91
14 JOURNAL BEARING L-928 113629-01 62 SUCTION VALVE 115706-91 115606-91
15 ROD BUSHING 113588-01 113588-01 63 INBOARD CYLINDER 115701-02 115601-02
16 ROD PIN 105895-01 105895-01 -S STAINLESS 115701-02S 115701-02S
17 ECCENTRIC - OUTER L-1013-A 113633-01 64 3/8 LOCK WASHER 93024 93024
18 ECCENTRIC - INNER L-1015 L-3017 -S STAINLESS 93025 93025
19 TRANSFER SLEEVE NOT USED NOT USED 65 3/8 HEX NUT 92024 92024
20 PISTON ROD ASSEMBLY 115712-91 105900-91 66 PLUNGER PACKING L-1045-V L-1045-V
21 ECCENTRIC PIN L-3004 L-3004 67 PLUNGER GASKET L-1098 L-1098
22 WOODRUFF KEY 108093-01 A-4333 -U FUMIGANT 114769-01 114769-01
23 CRANKSHAFT 115614-01 115614-01 68 PLUNGER WASHER L-1044-A L-1044-A
24 O'RING L-1022 L-1022 69 PLUNGER 103290-91 112816-91
25 GREASE ZERK 115647-01 115647-01 70 PLUNGER - LOCKING NUT L-1047 L-1047
26 SETTING SLEEVE 115718-01 115618-01 71 VALVE COVER 115703-01 115603-01
27 BEARING L-1007-A L-1007-A -S STAINLESS 115703-01S 115603-01S
28 GASKET L-1006 L-3002 72 1/2 FLAT WASHER NOT USED NOT USED
29 VENT PLUG S-350 S-350 -DR NOT USED NOT USED NOT USED
30 NAME PLATE 111958-01 111958-01 73 3/8 X 1-1/2 HEX BOLT 90911 90911
31 DRIVE SCREW A-3557 A-3557 -S STAINLESS 90654 90654
32 OIL PLUG C-431-B C-431-B 74 OUTBOARD CYLINDER 115702-01 115602-01
33 FLANGE COVER 115724-01 115724-01 -S STAINLESS 115702-01S 115602-01S
34 5/16 X 1 HEX BOLT 90637 90637 75 1/2 HEX BOLT 90704 90705
35 SETTING HUB 115627-01 115627-01 -S ULTRA COATED 90714 90705
36 SETTING SCALE SCREW A-368 A-368 76 GASKET MANIFOLD NOT USED NOT USED
37 SNAP RING 115791-01 115791-01 -DR NOT USED NOT USED NOT USED
38 3/8 SELF-LOCKING NUT A-3097 A-3097 77 MANIFOLD COMMON NOT USED NOT USED
39 SETTING POINTER 115628-01 115628-01 -S NOT USED NOT USED NOT USED
40 SETTING SCALE 115645-01 115645-01 -DR NOT USED NOT USED NOT USED
41 3/8 X 2 CARRIAGE BOLT 115646-01 115646-01 78 1/2 HEX BOLT NOT USED NOT USED
42 OIL SEAL 115622-01 115622-01 -DR NOT USED NOT USED NOT USED
43 CRANKCASE 115720-01 115620-01 A SPROCKET ASSY. RC50-18T 106532-01 106532-01
44 GASKET - CROSSHEAD 115711-01 115611-01 -K NO SPROCKET NOT USED NOT USED
45 1/2 HEX NUT 92029 92029 -R SPROCKET ASSY. RC40-18T 113907-01 113907-01
-S STAINLESS 92030 92030 B SPROCKET SPACER ASSY. 115624-91 115624-91
46 NOT USED C CONNECTING ROD ASSY. L-1008-A 113645-91
47 HEX BOLT 90637 90860 D FLANGE COVER ASSY. 115725-91 115725-91
48 CROSSHEAD GUIDE 115700-01 115600-01 E SETTING HUB ASSY. 115629-91 115629-91
49 GASKET - STUFFING BOX 115610-01 115610-01 F SETTING POINTER ASSY. 115630-91 115630-91
-U FUMIGANT 104828-01 104828-01 G GASKET KIT 115788 115688
50 O'RING 111943-01 111943-01 -S GASKET KIT - STAINLESS 115788-S 115688-S
51 PACKING 'V' SET L-1109 L-1109 -U GASKET KIT - FUMIGANT 115788-U 115688-U
-U FUMIGANT L-1109-U L-1109-U H OPERATORS KIT 115787 115787
52 PACKING WASHER L-1041 L-1041 N/S SLIDE CHART 115698-91 115698-91
53 PACKING SPRING L-1063 L-1063 N/S SETTING WRENCH 115631-01 115631-01
14
PARTS LISTING NGP-6055 & NGP-7055
NGP-6055 NGP-7055 NGP-6055 NGP-7055
ITEM PART DESCRIPTION PART # PART # ITEM PART DESCRIPTION PART # PART #
1 KEY L-1020 L-1020 54 GREASE ZERK H-30 H-30
2 SPROCKET RC50-18T 112661-01 112661-01 55 STUFFING BOX 115790-01 115690-01
-K NO SPROCKET NOT USED NOT USED -S STAINLESS 115790-01S 115690-01S
-R SPROCKET RC40-18T 113905-01 113905-01 56 GASKET - INBOARD CYL. 115710-01 115710-01
3 5/16 X 3/8 SET SCREW 90532 90532 -U FUMIGANT 104826-02 104826-02
4 GREASE FITTING H-28 H-28 57 STUFFING BOX INSERT L-1031-2 L-1031-2
5 1/4 X 3/8 SET SCREW 90530 90530 -S STAINLESS NOT USED NOT USED
6 SPROCKET SPACER 115625-01 115625-01 58 PACKING - SNAP RING L-1042 L-1042
7 O'RING S-316 S-316 59 O'RING S-316 115604-01
8 THRUST WASHER 115626-01 115626-01 -S STAINLESS 104824-01 115612-01
9 5/16 X 1HEX BOLT 90637 90637 -U FUMIGANT 104824-01 115612-01
10 OIL SEAL 115621-01 115621-01 60 O'RING L-3031 A-2848
11 COVER PLATE 115723-01 115623-01 -S STAINLESS 114768-01 114870-01
12 BEARING L-3019 L-3019 -U FUMIGANT 114768-01 114870-01
13 CONNECTING ROD L-1008-A 113630-01 61 DISCHARGE VALVE 115707-91 115607-91
14 JOURNAL BEARING L-928 113629-01 62 SUCTION VALVE 115706-91 115606-91
15 ROD BUSHING 113588-01 113588-01 63 INBOARD CYLINDER 115701-02 115601-02
16 ROD PIN 105895-01 105895-01 -S STAINLESS 115701-02S 115701-02S
17 ECCENTRIC - OUTER L-1013-A 113633-01 64 3/8 LOCK WASHER 93024 93024
18 ECCENTRIC - INNER L-1015 L-3017 -S STAINLESS 93025 93025
19 TRANSFER SLEEVE NOT USED NOT USED 65 3/8 HEX NUT 92024 92024
20 PISTON ROD ASSEMBLY 115712-91 105900-91 66 PLUNGER PACKING L-1045-V L-1045-V
21 ECCENTRIC PIN L-3004 L-3004 67 PLUNGER GASKET L-1098 L-1098
22 WOODRUFF KEY 108093-01 A-4333 -U FUMIGANT 114769-01 114769-01
23 CRANKSHAFT 115614-01 115614-01 68 PLUNGER WASHER L-1044-A L-1044-A
24 O'RING L-1022 L-1022 69 PLUNGER 103290-91 112816-91
25 GREASE ZERK 115647-01 115647-01 70 PLUNGER - LOCKING NUT L-1047 L-1047
26 SETTING SLEEVE 115718-01 115618-01 71 VALVE COVER 115703-01 115603-01
27 BEARING L-1007-A L-1007-A -S STAINLESS 115703-01S 115603-01S
28 GASKET L-1006 L-3002 72 1/2 FLAT WASHER NOT USED NOT USED
29 VENT PLUG S-350 S-350 -DR NOT USED NOT USED NOT USED
30 NAME PLATE 111958-01 111958-01 73 3/8 X 1-1/2 HEX BOLT 90911 90911
31 DRIVE SCREW A-3557 A-3557 -S STAINLESS 90654 90654
32 OIL PLUG C-431-B C-431-B 74 OUTBOARD CYLINDER 115702-01 115602-01
33 FLANGE COVER 115724-01 115724-01 -S STAINLESS 115702-01S 115602-01S
34 5/16 X 1 HEX BOLT 90637 90637 75 1/2 HEX BOLT 90704 90705
35 SETTING HUB 115627-01 115627-01 -S ULTRA COATED 90714 90705
36 SETTING SCALE SCREW A-368 A-368 76 GASKET MANIFOLD NOT USED NOT USED
37 SNAP RING 115791-01 115791-01 -DR NOT USED NOT USED NOT USED
38 3/8 SELF-LOCKING NUT A-3097 A-3097 77 MANIFOLD COMMON NOT USED NOT USED
39 SETTING POINTER 115628-01 115628-01 -S NOT USED NOT USED NOT USED
40 SETTING SCALE 115645-01 115645-01 -DR NOT USED NOT USED NOT USED
41 3/8 X 2 CARRIAGE BOLT 115646-01 115646-01 78 1/2 HEX BOLT NOT USED NOT USED
42 OIL SEAL 115622-01 115622-01 -DR NOT USED NOT USED NOT USED
43 CRANKCASE 115720-01 115620-01 A SPROCKET ASSY. RC50-18T 106532-01 106532-01
44 GASKET - CROSSHEAD 115711-01 115611-01 -K NO SPROCKET NOT USED NOT USED
45 1/2 HEX NUT 92029 92029 -R SPROCKET ASSY. RC40-18T 113907-01 113907-01
-S STAINLESS 92030 92030 B SPROCKET SPACER ASSY. 115624-91 115624-91
46 NOT USED C CONNECTING ROD ASSY. L-1008-A 113645-91
47 HEX BOLT 90637 90860 D FLANGE COVER ASSY. 115725-91 115725-91
48 CROSSHEAD GUIDE 115700-01 115600-01 E SETTING HUB ASSY. 115629-91 115629-91
49 GASKET - STUFFING BOX 115610-01 115610-01 F SETTING POINTER ASSY. 115630-91 115630-91
-U FUMIGANT 104828-01 104828-01 G GASKET KIT 115788 115688
50 O'RING 111943-01 111943-01 -S GASKET KIT - STAINLESS 115788-S 115688-S
51 PACKING 'V' SET L-1109 L-1109 -U GASKET KIT - FUMIGANT 115788-U 115688-U
-U FUMIGANT L-1109-U L-1109-U H OPERATORS KIT 115787 115787
52 PACKING WASHER L-1041 L-1041 N/S SLIDE CHART 115698-91 115698-91
53 PACKING SPRING L-1063 L-1063 N/S SETTING WRENCH 115631-01 115631-01
14
NGP-6055 & 7055 SERIES
15
DIMENSIONAL FOOTPRINTS
NGP-6055 SERIES
NGP-7055 SERIES
NGP-8055 SERIES
NGP-9055 SERIES
Universal Features:
RC50 chain 18 Tooth Sprocket
1-1/2 NPT (f) suction and discharge fittings
3/8 bolt holes for mounting
Common manifolds may be removed on NGP-8055 & NGP-9055, denoted by -DR
20
