IRRIGATION INJECTION PUMPS
All wetted internal parts exposed to agricultural products are made from 316 stainless steel, chemically resistant polypropylene and the highest quality seals available today.
Features
1. Pumping cylinders can be mounted in parallel for large volume applications or for injection of two non-compatible products.
2. A simple change of stoke length sets the precise flow to be injected
3. Maximum pressure 150 psi.
Phase - Three
Model Type Simplex
Low Range GPH -3-322
High Range GPH 12-119
Max PSI 120
Motor Size 3/4
GPH Range 3-325
Model Type Duplex
Low Range GPH -6-64
High Range GPH 24-235
Max PSI 120
Motor Size 3/4
GPH Range 3-325
Keywords: JOHNBL BLU IN-23530 CDS/JOHN BLUE COMPANY JOHNBLZZ00C IRRIGATION INJECTION PUMPS
Category: [0] => AGRICULTURAL EQUIPMENT AND PARTS => PUMPS => IRRIGATION INJECTION PUMPS
[1] => SUPPLIER DIRECTORY => CDS/JOHN BLUE COMPANY => JOHN BLUE CDS PUMPS, PRODUCTS, PARTS SECTION 26 => AGRICULTURAL EQUIPMENT AND PARTS => PUMPS => IRRIGATION INJECTION PUMPS
Kelly Legacy Part Number: 6507650
Catalog sheet:
02633
E-Z Meter Pumps*
Maximum Pressure 150 PSI
316 Stainless Steel Cylinder Models
Power 5-30 GPH 10-100 GPH 5-30 5-30 10-100
Source 5-30 GPH 10-100 GPH 10-100 GPH
110-220 1ph 10620 11630 10622 10623 10633
220-440 3 ph 20620 21630 20622 20623 20633
Belt Drive 01620 01630 01622 01623 01633
Honda Engine 02620 02630 02622 02623 02633
12V DC Motors 30620 30630 30622 30623 30633
*-1 after the part number indicates pumps with Teon cylinders, ideal for acid applications. For stainless steel check valves contact
the factory.
CDS-John Blue Full Range Fertilizer Injection
Units

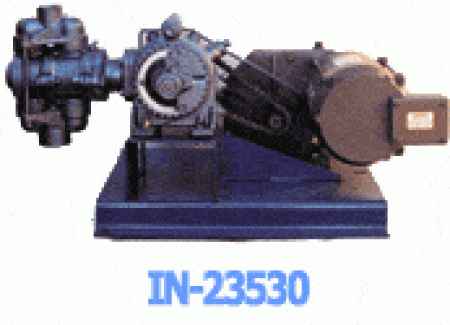

IN-23530
Model Phase Model Low High Max Motor GPH
Number Type Range GPH Range GPH PSI Size Range
IN-11610 Single Simplex 2.6-26.2 5.9-59 120 1 2.6-117
Duplex 5.2-52.4 11.7-117.4 120 1
IN-11630 Three Simplex 1.6-15.5 5.7-57 120 1.6-114
Duplex 3.1-31 11.4-114 120
IN-23510 Single Simplex 5.5-55 12-122 120 1 5.5-242
Duplex 11-108 24-242 120 1
IN-23530 Three Simplex 3-32 12-119 120 3-235
Duplex 6-64 24-235 120
IN-47030 Three Simplex 6-64.8 24-238 120 1 6-470
Duplex 12-128 48-470.2 120 1
20 CDS-John Blue
Company
Installation
Fertilizer and
CDS-John Blue Series 2000 Simplex Pumps*
Schematic Maximum Pressure 150 PSI
Chemical Irrigation
Power Source 5-30 GPH 10-100 GPH
110-220 1ph 10620 11630
220-440 3ph 20620 21630
Injection Units
Belt Drive 01620 01630
Honda Engine 02620 02630
12V DC Motor 30620 30630
CDS-John Blue Series 2000 Duplex Pumps*
Maximum Pressure 150 PSI
Power 5-30 5-30 10-100
Source 5-30 10-100 10-100
110-220 1ph 10622 10623 10633
220-440 3ph 20622 20623 20633
Belt Drive 01622 01623 01633
Honda Engine 02622 02623 02633
12V DC Motor 30622 30623 30633
* - 1 after part number, indicates pumps with Teflon cylinders ideal for acid applications.
For Stainless Steel check valves, contact the factory.
CDS-John Blue Full Range Injection Units
Model Phase Model Low Range High Max Motor
Number Type Range PSI Size
IN-11610 Single Simplex 2.6-26.2 5.9-59 120 1
Duplex 5.2-52.4 11.7-117.4 120 1
IN-11630 Three Simplex 1.6-15.5 5.7-57 120
All CDS-John Blue Irrigation Pumps can be easily connected to your irrigation Duplex 3.1-31.0 11.4-114.0 120
IN-23510 Single Simplex 5.5-55 12-122 120 1
system and chemical tank to provide simple, reliable chemigation. Duplex 11-108 24-242 120 1
IN-23530 Three Simplex 3-32 12-119 120
Duplex 6-64 24-235 120
E-Z Meter Power Sources:
IN-47030 Three Simplex 6-64.8 24-238 120 1
Duplex 12-128 48-470.2 120 1
5-30, 10-100 and 10-200 GPH Pumps
115/208-230V Single Phase, 60 HZ
HP 1725 RPM, 115/208-220V, FLA 8.8/4.4, 56C Frame, HZ 60 single phase, SFA 9.4/4.7, service factor,
,
1.15 ball bearings. (50 HZ motors available upon request).
Call Toll Free at 800-253-2583 for free engineering and technical assistance.
208-230/440V Three Phase, 60 HZ Available From:
HP 1725 RPM, 208-230/440V, FLA 2.1-2.0/1.0, 56C Frame, HZ 60 three phase, SFA 2.5-2.4/1.2, service
,
factor, 1.25 ball bearings. (50 HZ motors available upon request).
Honda Gasoline Engine Driven (GED)
4 cycle, 7.2 CID with 4 HP at 3600 RPM, fuel capacity .66 US gallons.
12 Volt
HP 1800 full load RPM, 12 Volts DC F.L. AMPS 40, 24 Volts DC 20 F.L. AMPS, Class F insulation, linear
, CDS-John Blue Company, Division of Advanced Systems Technology, Inc.,
speed/torque, NEMA 56C Frame, ball bearings. P Box 1607, Huntsville, AL 35807, Tel: 256-721-9090, FAX: 256-721-9091
.O.
Web: www.cds-johnblue.com, E-mail: info@cds-johnblue.com
Manufacturer reserves the right to make changes to specifications FPCO0606-4-2000 Printed in USA
