FD-1200 CDS-BLUE FLOW DIVIDER 3/4" 12 ROW

The FD-1200 provides unsurpassed accuracy with application rates as low
as 2.5 GPA and as high as 80 GPA on 30 inch row spacing at 5MPH.

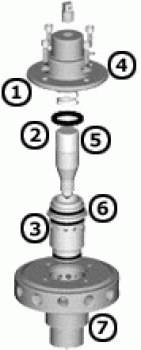

1. 302 SS balanced spring offers superior performance and corrosion
resistance.

2. Exclusive Viton lip seal is more stable and has a longer life
than conventional diaphragms which may rupture during service.

3. 316 SS sleeve can be easily removed for cleaning in the field plus
the alignment indicator ensures that the sleeve can be removed, cleaned
and replaced exactly in the same position.

4. Field repairable without removing distribution lines.

5. The upper needle of the piston is 316 SS, which means longer seal
life. The special glass-filled Teflon lower needle offers smooth
operation with minimum friction.

6. Viton® 0-rings are used for positive sealing for even hard to
handle products.

7. 316 SS body is corrosion resistant, durable and built to last a
lifetime.



Category:
[0] => AGRICULTURAL EQUIPMENT AND PARTS => ACCESSORIES => FLOW DIVIDERS
[1] => KELLY SUPPLY COMPANY => AG PRODUCTS => JOHN BLUE FLOW DIVIDERS => AGRICULTURAL EQUIPMENT AND PARTS => ACCESSORIES => FLOW DIVIDERS
[2] => SUPPLIER DIRECTORY => CDS/JOHN BLUE COMPANY => JOHN BLUE CDS PUMPS, PRODUCTS, PARTS SECTION 26 => KELLY SUPPLY COMPANY => AG PRODUCTS => JOHN BLUE FLOW DIVIDERS => AGRICULTURAL EQUIPMENT AND PARTS => ACCESSORIES => FLOW DIVIDERS

Kelly Legacy Part Number: 6518600



Catalog sheet:

                               Flow Dividers
Everyone has their
idea of perfection.
This is ours.
                               302 SS balanced                                                                 Field repairable
Liquid fertilizer users        spring offers superior                                                          without removing
demand accurate rates. The
patented CDS-John Blue         performance and                                                                 distribution lines.
Exacto-Flow Flow Divider     corrosion resistance.
when used in conjunction
with our liquid metering
pump is guaranteed to
deliver. After extensive
research, we know that                                                                                         The upper needle of
                               Exclusive Viton lip
the FD-1200 and FD-2000                                                                                        the piston is 316 SS,
accurately divide liquid       seal is more stable
                                                                                                               which means longer
products across a wide         and has a longer life
range of application rates.                                                                                    seal life. The special
                               than conventional
We have proven in the                                                                                          glass-filled Teflon
eld that it is the most       diaphragms which
                                                                                                               lower needle offers
accurate distribution of       may rupture during
any automatic ow divider                                                                                      smooth operation
                               service.
system on the market today.                                                                                    with minimum
The FD-1200 and FD-
                                                                                                               friction.
2000 provide unsurpassed
accuracy with application      316 SS sleeve can be
rates as low as 5 GPA and as
high as 80 GPA on 30 inch      easily removed for                                                              Viton o-rings are
row spacing at 5 MPH.          cleaning in the field.                                                          used for positive
                               Plus the alignment                                                              sealing for even hard
                               indicator ensures                                                               to handle products.
                               that the sleeve can
                               be removed, cleaned
                               and replaced exactly
                                                                                                               316 SS body is
                               in the same position
                                                                                                               corrosion resistant,
                               every time.
                                                                                                               durable and built to
                                                                                                               last a lifetime.

                                                                                                   US Pat No 6311716

                                     Flow Divider and Flow Divider Mounts
                                     Part Number      Description    Outlets               Inlet     Outlet         Maximum
                                                                                                                     Flow/Outlet
                                     FD-1200              Exacto-Flow         12          FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     FD-2000              Exacto-Flow         20         1 FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     113989            Manifold Mount
                                     115284-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
                                     115285-01         Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi
                                     115286-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
 10 CDS-John Blue
    Company
                               Flow Dividers
Everyone has their
idea of perfection.
This is ours.
                               302 SS balanced                                                                 Field repairable
Liquid fertilizer users        spring offers superior                                                          without removing
demand accurate rates. The
patented CDS-John Blue         performance and                                                                 distribution lines.
Exacto-Flow Flow Divider     corrosion resistance.
when used in conjunction
with our liquid metering
pump is guaranteed to
deliver. After extensive
research, we know that                                                                                         The upper needle of
                               Exclusive Viton lip
the FD-1200 and FD-2000                                                                                        the piston is 316 SS,
accurately divide liquid       seal is more stable
                                                                                                               which means longer
products across a wide         and has a longer life
range of application rates.                                                                                    seal life. The special
                               than conventional
We have proven in the                                                                                          glass-filled Teflon
eld that it is the most       diaphragms which
                                                                                                               lower needle offers
accurate distribution of       may rupture during
any automatic ow divider                                                                                      smooth operation
                               service.
system on the market today.                                                                                    with minimum
The FD-1200 and FD-
                                                                                                               friction.
2000 provide unsurpassed
accuracy with application      316 SS sleeve can be
rates as low as 5 GPA and as
high as 80 GPA on 30 inch      easily removed for                                                              Viton o-rings are
row spacing at 5 MPH.          cleaning in the field.                                                          used for positive
                               Plus the alignment                                                              sealing for even hard
                               indicator ensures                                                               to handle products.
                               that the sleeve can
                               be removed, cleaned
                               and replaced exactly
                                                                                                               316 SS body is
                               in the same position
                                                                                                               corrosion resistant,
                               every time.
                                                                                                               durable and built to
                                                                                                               last a lifetime.

                                                                                                   US Pat No 6311716

                                     Flow Divider and Flow Divider Mounts
                                     Part Number      Description    Outlets               Inlet     Outlet         Maximum
                                                                                                                     Flow/Outlet
                                     FD-1200              Exacto-Flow         12          FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     FD-2000              Exacto-Flow         20         1 FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     113989            Manifold Mount
                                     115284-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
                                     115285-01         Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi
                                     115286-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
 10 CDS-John Blue
    Company
                               Flow Dividers
Everyone has their
idea of perfection.
This is ours.
                               302 SS balanced                                                                 Field repairable
Liquid fertilizer users        spring offers superior                                                          without removing
demand accurate rates. The
patented CDS-John Blue         performance and                                                                 distribution lines.
Exacto-Flow Flow Divider     corrosion resistance.
when used in conjunction
with our liquid metering
pump is guaranteed to
deliver. After extensive
research, we know that                                                                                         The upper needle of
                               Exclusive Viton lip
the FD-1200 and FD-2000                                                                                        the piston is 316 SS,
accurately divide liquid       seal is more stable
                                                                                                               which means longer
products across a wide         and has a longer life
range of application rates.                                                                                    seal life. The special
                               than conventional
We have proven in the                                                                                          glass-filled Teflon
eld that it is the most       diaphragms which
                                                                                                               lower needle offers
accurate distribution of       may rupture during
any automatic ow divider                                                                                      smooth operation
                               service.
system on the market today.                                                                                    with minimum
The FD-1200 and FD-
                                                                                                               friction.
2000 provide unsurpassed
accuracy with application      316 SS sleeve can be
rates as low as 5 GPA and as
high as 80 GPA on 30 inch      easily removed for                                                              Viton o-rings are
row spacing at 5 MPH.          cleaning in the field.                                                          used for positive
                               Plus the alignment                                                              sealing for even hard
                               indicator ensures                                                               to handle products.
                               that the sleeve can
                               be removed, cleaned
                               and replaced exactly
                                                                                                               316 SS body is
                               in the same position
                                                                                                               corrosion resistant,
                               every time.
                                                                                                               durable and built to
                                                                                                               last a lifetime.

                                                                                                   US Pat No 6311716

                                     Flow Divider and Flow Divider Mounts
                                     Part Number      Description    Outlets               Inlet     Outlet         Maximum
                                                                                                                     Flow/Outlet
                                     FD-1200              Exacto-Flow         12          FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     FD-2000              Exacto-Flow         20         1 FPT        FPT        2.25 GPM
                                                           Stainless Steel
                                                           Flow Divider
                                     113989            Manifold Mount
                                     115284-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
                                     115285-01         Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi
                                     115286-01         Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi
 10 CDS-John Blue
    Company
                 CDS-John Blue Company Exacto-Flow
                  FD-1200 and FD-2000 Flow Dividers
            Revolutionary products from the company that has manufactured reliable liquid
                           fertilizer metering equipment for over 120 years.
    The CDS-John Blue FD-1200 and FD-2000 Flow Dividers when used in conjunction with our liquid
metering pumps accurately divide liquid products across a wide range of application rates. It has the
most accurate distribution of any automatic flow divider system on the market today.
    The Exacto-Flow provides unsurpassed accuracy with application rates as low as 5 GPA and as
high as 80 GPA on 30 inch row spacing at 5 MPH. The new flow divider offers excellent service in fer-
tilizer and chemical applications and is backed by the CDS-John Blue warranty Guaranteed To Do The
Job.

                  Benefits of the Exacto-Flow Flow Dividers
   Revolutionary piston design ensures unequaled accuracy.
   Two or more CDS-John Blue Flow Dividers can be banked together for additional outlets while
   continuing to provide row-to-row precision.
   Eliminates the need for orifices. No more hassles with field striping due to plugged orifices or the
   need to change orifices when you change rates.
   Higher tolerance of foreign materials than manifolds and orifices.
   The Exacto-Flow Flow Divider is designed for the Precision Farming Variable Rate Technology of
   Today and the Future.
   CDS-John Blue Company recommends using the specialized check valves listed below for low flow
   rates, for example application rates less than 10 GPA on 30 inch row spacing at 5 MPH. Extensive
   testing has indicated that check valves with a cracking pressure of equal to or less than 1 psi can
   enhance performance. Consult CDS-John Blue for more information.



                                                                    Flow Dividers
                                      Part Number           Description                    Inlet          Outlet        Maximum
                                                                                            Size           Size        Flow/Outlet
                                      FD-1200       12 Outlet SS Flow Divider              FPT           FPT           2.25 GPM

                                      FD-2000       20 Outlet SS Flow Divider             1 FPT           FPT           2.25 GPM

                                      115284-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi

                                      115285-01     Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi

                                      115286-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose, x  Hose, 1 psi




                                                                                                              US Pat No 6311716
                 CDS-John Blue Company Exacto-Flow
                  FD-1200 and FD-2000 Flow Dividers
            Revolutionary products from the company that has manufactured reliable liquid
                           fertilizer metering equipment for over 120 years.
    The CDS-John Blue FD-1200 and FD-2000 Flow Dividers when used in conjunction with our liquid
metering pumps accurately divide liquid products across a wide range of application rates. It has the
most accurate distribution of any automatic flow divider system on the market today.
    The Exacto-Flow provides unsurpassed accuracy with application rates as low as 5 GPA and as
high as 80 GPA on 30 inch row spacing at 5 MPH. The new flow divider offers excellent service in fer-
tilizer and chemical applications and is backed by the CDS-John Blue warranty Guaranteed To Do The
Job.

                  Benefits of the Exacto-Flow Flow Dividers
   Revolutionary piston design ensures unequaled accuracy.
   Two or more CDS-John Blue Flow Dividers can be banked together for additional outlets while
   continuing to provide row-to-row precision.
   Eliminates the need for orifices. No more hassles with field striping due to plugged orifices or the
   need to change orifices when you change rates.
   Higher tolerance of foreign materials than manifolds and orifices.
   The Exacto-Flow Flow Divider is designed for the Precision Farming Variable Rate Technology of
   Today and the Future.
   CDS-John Blue Company recommends using the specialized check valves listed below for low flow
   rates, for example application rates less than 10 GPA on 30 inch row spacing at 5 MPH. Extensive
   testing has indicated that check valves with a cracking pressure of equal to or less than 1 psi can
   enhance performance. Consult CDS-John Blue for more information.



                                                                    Flow Dividers
                                      Part Number           Description                    Inlet          Outlet        Maximum
                                                                                            Size           Size        Flow/Outlet
                                      FD-1200       12 Outlet SS Flow Divider              FPT           FPT           2.25 GPM

                                      FD-2000       20 Outlet SS Flow Divider             1 FPT           FPT           2.25 GPM

                                      115284-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi

                                      115285-01     Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi

                                      115286-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose, x  Hose, 1 psi




                                                                                                              US Pat No 6311716
                 CDS-John Blue Company Exacto-Flow
                  FD-1200 and FD-2000 Flow Dividers
            Revolutionary products from the company that has manufactured reliable liquid
                           fertilizer metering equipment for over 120 years.
    The CDS-John Blue FD-1200 and FD-2000 Flow Dividers when used in conjunction with our liquid
metering pumps accurately divide liquid products across a wide range of application rates. It has the
most accurate distribution of any automatic flow divider system on the market today.
    The Exacto-Flow provides unsurpassed accuracy with application rates as low as 5 GPA and as
high as 80 GPA on 30 inch row spacing at 5 MPH. The new flow divider offers excellent service in fer-
tilizer and chemical applications and is backed by the CDS-John Blue warranty Guaranteed To Do The
Job.

                  Benefits of the Exacto-Flow Flow Dividers
   Revolutionary piston design ensures unequaled accuracy.
   Two or more CDS-John Blue Flow Dividers can be banked together for additional outlets while
   continuing to provide row-to-row precision.
   Eliminates the need for orifices. No more hassles with field striping due to plugged orifices or the
   need to change orifices when you change rates.
   Higher tolerance of foreign materials than manifolds and orifices.
   The Exacto-Flow Flow Divider is designed for the Precision Farming Variable Rate Technology of
   Today and the Future.
   CDS-John Blue Company recommends using the specialized check valves listed below for low flow
   rates, for example application rates less than 10 GPA on 30 inch row spacing at 5 MPH. Extensive
   testing has indicated that check valves with a cracking pressure of equal to or less than 1 psi can
   enhance performance. Consult CDS-John Blue for more information.



                                                                    Flow Dividers
                                      Part Number           Description                    Inlet          Outlet        Maximum
                                                                                            Size           Size        Flow/Outlet
                                      FD-1200       12 Outlet SS Flow Divider              FPT           FPT           2.25 GPM

                                      FD-2000       20 Outlet SS Flow Divider             1 FPT           FPT           2.25 GPM

                                      115284-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose x  Hose, 1 psi

                                      115285-01     Check Valve - PVC, Viton Seal, 316 SS Ball, 3/8 Hose x 3/8 Hose, 1 psi

                                      115286-01     Check Valve - PVC, Viton Seal, 316 SS Ball,  Hose, x  Hose, 1 psi




                                                                                                              US Pat No 6311716
Field Repairable
Always Calibrated Equally                        The three stage tapered piston design
                                               with its precision placed circular ribs
FD-1200 and FD-2000                            ensures accurate distribution for your
Exacto-Flow Features:                        application rate. There are three unique
 Completely field repairable without          stages to flow division in the patent
  removing distribution lines. This            pending Exacto-Flow which are: One
                                               - The Recess Stage, which positions the
  is accomplished with the 316
                                               needle properly; Two - The Flow Rib
  stainless steel cap design, which            Stage which spins the product; Three -
  allows for all parts to be removed           The Accelerator Stage which takes the
  easily, cleaned and reassembled.             spinning product and accelerates it to
 302 Stainless Steel balanced                 the outlet ports.
  spring offers superior                      Piston ConstructionUsing a corrosion
  performance and is corrosion                 resistant 316 Stainless Steel upper
  resistant.                                   needle as the surface for the piston
 Exclusive Viton lip seal                    lip seal means longer seal life. The
  offers greater stability and                 non-metallic lower needle offers smooth
                                               operation with minimum friction.
  longer life than conventional
                                              Third StageThe Accelerator Stage -
  diaphragms which may                         The angular design accelerates the fluid
  rupture during service.                      to a high velocity towards the outlet.
 316 Stainless Steel                         Second StageThe Flow Rib Stage -
  distribution sleeve is easily                The pistons circular rings cause the
  removable for cleaning                       product to spin in a circle equally mixing
  in the field. The sleeve                     and distributing the fluid within the
                                               distribution sleeve.
  design incorporates an
                                              First StageThe Recess Stage - The
  alignment indicator that                     lower piston uses a needle design with
  ensures that the sleeve                      a smaller diameter to position the piston
  can be removed,                              when not in use and improves low rate
  cleaned and replaced                         accuracy too. This also provides better
  in exactly the same                          debris handling.
  position each time.                         Viton o-rings are used for positive
                                               sealing even with hard to handle
 316 Stainless
                                               products.
  Steel body for
  superior corrosion
  resistance and
  durability- built to
  last a lifetime.


                  Distributed by:



                                        CDS-John Blue Company,
                                        Division of Advanced Systems Technology, Inc.
                                        P.O. Box 1607, Huntsville, AL 35807
                                        Tel: 256-721-9090  800-253-2583 fax: 256-721-9091
                                        Web: www.cds-johnblue.com, E-mail: info@cds-johnblue.com

FPC0606-4-3000                                                                         Printed in the U.S.A.
CDS-John Blue Piston Metering Pumps                                                                                        Our Complete Line of CDS-John Blue Piston                                                                                      Liquid Metering Piston Pumps
Theres a CDS-John Blue Pump to meet virtually all your precision application needs. All CDS-John                                    Pump Accessories.
Blue Pumps have been engineered and extensively field-tested to achieve the perfect liquid applicator
pump. We have built our reputation on providing superior performance, service and quality and we are
committed to continuing this in the future.

CDS-John Blue Company has more piston pump models and features than any other company in
agriculture. We have 25 different models available, each with various features and associated benefits.
CDS-John Blue offers pumps without clutches and with electric or hydraulic clutches, plus high speed
large capacity pumps up to 69.4 gpm or low capacity down to .5 gpm. We have fumigant pumps, 316
stainless steel pumps and the seals to make them work right for you.
                                                                                                                                          Exacto-Flow FD-1200 and                       Liquid and NH3 Manifolds for
The piston-metering pump is the standard for accuracy due to the positive displacement ground driven                                      FD-2000 Flow Dividers for                       even distribution with properly
design, which maintains a constant rate per acre as the ground speed varies. This is accomplished                                         accurate rates without orifices.                sized orifices.
mechanically without any expensive and difficult field-repair electronics.                                                                Rates as low as 5 GPA and as
                                                                                                                                          high as 80 GPA on 30-inch row
Our high quality mechanical components can not be affected by environment, chemicals, rough terrain                                       spacing at 5 MPH.
or nozzle wear. All working parts, which come in contact with liquid products, are made from corrosion
resistant stainless steel. For those acid or hard to handle solutions our pumps are available with 316
stainless steel liquid pumping ends. All CDS-John Blue pumps have 316 stainless steel piston rods and
check valves as the standard. The pumps large, unrestricted chambers also assure accurate delivery
rates of heavy suspension fertilizers used in todays applications.

We at CDS-John Blue Company are always responding to the ever-changing needs of agriculture with
our commitment to outstanding design, premium materials and uncompromising engineering and in our
warranty Guaranteed to Do the Job - No Better Warranty Exists.

Please call our technical sales engineers for variable rate technology (VRT) applications and they will
help you step-by-step.                                                                                                                    CDS-John Blue Planter                           CDS-John Blue Pump Drive
                                                                                                                                          Conversion Kits make it simple                  Accessories make your piston
                                                                                                                                          to convert to a piston pump                     pump more versatile for
                                                                                                                                          from a squeeze tube pump,                       sprayers, nurse units, tool bars,
                                                                                                                                          regardless of your planter type.                booms, chisels plows, field
                                                                                                                                                                                          cultivators, planters and many
                                                                                                                                                                                          more.


                                                                                                                           Call Toll Free 800-253-2583 for free engineering, technical assistance and a complete CDS-John Blue Product Catalog.
                                                                                                                                 Visit our Internet site at www.cds-johnblue.com for product information and to calibrate your piston pump.
                                                                                                                                               Available From:
                                                                                                                                                                                        CDS-John Blue Company,
                                                                                                                                                                                        Division of Advanced Systems Technology, Inc.,
                                                                                                          FPC0606-3-3000




                                                                                                                                                                                        P Box 1607
                                                                                                                                                                                         .O.
                                                                                                                                                                                        Huntsville, AL 35807
                                                                                                                                                                                        Tel: (256) 721-9090, 800-253-2583
                                                                                                                                                                                        FAX: (256) 721-9091
                                                                                                                                                                                        www.cds-johnblue.com, E-mail: info@cds-johnblue.com

                                                                                                                                                                                                                                         Printed in USA
