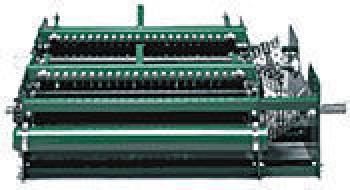

DOUBLE PUMP WITH STAINLESS FITTINGS
Keywords: JOHNBL BLU 32BD-1 CDS/JOHN BLUE COMPANY DOUBLE PUMP WITH STAINLESS FITTINGS
Category: [0] => SUPPLIER DIRECTORY => CDS/JOHN BLUE COMPANY => JOHN BLUE CDS PUMPS, PRODUCTS, PARTS SECTION 14
Catalog sheet:
Squeeze Pump Specications
Hose Size Maximum Maximum Maximum Rate Range
Output Speed Pressure GPA
Per Hose
Oval Shaped Tube With Built-in Backing Plate Squeeze Pump
3/8 . 63 gpm 100 6 psi 1.5-25*
5/8 1.26 gpm 100 6 psi 3 - 50*
Round Hose Spring Loaded Back Plate Squeeze Pump
5/16 . 58 gpm 125 6 psi 3-23**
1.4 gpm 125 6 psi 7-55**
*Maximum GPA rating based on 5 MPH, 30 inch rows. Minimum is based on 24 pulses per minute.
**Maximum rating based on 5 MPH, 30 inch rows. Minimum is based on 48 pulses per minute.
Models Available for Oval-shaped
Squeeze Tube Pump with Built-in Backing Plate
Standard Models
Part Number Metering GPA Discharge Suction
Number of Rows Hose Size Hose Size Hose Size
8B-1 8 3/8 1.5-25 3/8 1 FNPT
8L 8 5/8 3-50 1/2 1 FNPT
12B-1 12 3/8 1.5-25 3/8 1 FNPT
12L 12 5/8 3-50 1/2 1 FNPT
8B-1 16B-1 16 3/8 1.5-25 3/8 1 FNPT
16L 16 5/8 3-50 1/2 1 FNPT
24B-1 24 3/8 1.5-25 3/8 1 FNPT
Hydraulic Models
8B-1H 8 3/8 1.5-25 3/8 1 FNPT
8L-H 8 5/8 3-50 1/2 1 FNPT
12B-1H 12 3/8 1.5-25 3/8 1 FNPT
12L-H 12 5/8 3-50 1/2 1 FNPT
16B-1H 16 3/8 1.5-25 3/8 1 FNPT
16L-H 16 5/8 3-50 1/2 1 FNPT
Combination Pump 8B-1/8L Combination Pump Models
8B-1/8L 16 3/8 & 5/8 1.5-50 3/8 & 1/2 1 FNPT
12B-1/8L 20 3/8 & 5/8 1.5-50 3/8 & 1/2 1 FNPT
Double Pump Models
24LD 24 5/8 3-50 1/2 1 FNPT
32BD-1 32 3/8 1.5-25 3/8 1 FNPT
Double Pump 48BD-1 40BD-1 40 3/8 1.5-25 3/8 1 FNPT
48BD-1 48 3/8 1.5-25 3/8 1 FNPT
8 CDS-John Blue Note: B-1 Pumps have stainless steel ttings.
L Pumps have plastic ttings.
Company Combination Pumps have B-1 Pump at front (input drive end).
Pump Specifications
The CDS-John Blue Squeeze Tube Pumps feature a sturdy all metal frame, which holds them true
when mounted on equipment that has to flex over rough terrain. The oval-shaped tubes with the
built-in backing plate insure accurate rates. The positive shut-off is due to the positive sealing of the
oval-shaped tubes.
Maximum Output per Hose: 3/8 Diameter Hose .63 gpm
5/8 Diameter Hose 1.26 gpm
Maximum Speed: 100 RPM
Maximum Pressure: 6 psi
Rate Range GPA: 3/8 Diameter Hose 1.5 25*
5/8 Diameter Hose 3 50*
Standard Pump Models
Part Number Metering Discharge Suction
Number of Rows Hose Size Hose Size Hose Size
8B-1 8 3/8 3/8 1 1/4 FNPT
8L 8 5/8 1/2 1 1/4 FNPT
12B-1 12 3/8 3/8 1 1/4 FNPT
12L 12 5/8 1/2 1 1/4 FNPT
16B-1 16 3/8 3/8 1 1/4 FNPT
16L 16 5/8 1/2 1 1/4 FNPT
24B-1 24 3/8 3/8 1 1/4 FNPT
Hydraulic Pump Models
8B-1H 8 3/8 3/8 1 1/4 FNPT
8L-H 8 5/8 1/2 1 1/4 FNPT
12B-1H 12 3/8 3/8 1 1/4 FNPT
12L-H 12 5/8 1/2 1 1/4 FNPT
16B-1H 16 3/8 3/8 1 1/4 FNPT
16L-H 16 5/8 1/2 1 1/4 FNPT
Combination Pump Models
8B-1/8L 16 3/8&5/8 3/8&1/2 1 1/4 FNPT
12B-1/8L 20 3/8&5/8 3/8&1/2 1 1/4 FNPT
Double Pump Models
24LD 24 5/8 1/2 1 1/4 FNPT
32BD-1 32 3/8 3/8 1 1/4 FNPT
40BD-1 40 3/8 3/8 1 1/4 FNPT
48BD-1 48 3/8 3/8 1 1/4 FNPT
Note:
* GPA rating based on 5 MPH, 30 inch rows.
B-1 pumps have stainless steel fittings.
L pumps have plastic fittings.
Combination pumps have B-1 pump at front (input drive end).
3
Parts List
Double Squeeze Tube Pumps
Item # Description 24LD 32BD-1 40BD-1 48BD-1
1 Base Channel (3) 01-1220 01-1610 01-1620 01-2410
2 Frame Support Bar (2) 02-1220 02-1610 02-1620 02-2410
3 Outlet Fitting Rack (2) 04-1220 04-1610 04-2010 04-2410
4 Tube Tension Bar (2) 05-1220 05-1610 05-2010 05-2410
5 Push Rod (4) 06-0021 06-0011 06-0011 06-0011
6 Manifold - Front 07-1220 07-3211 07-2010 07-2410
7 Manifold - Center 07-2420 07-3212 07-4010 07-4812
8 Squeeze Tube* 08-0020 08-0010 08-0010 08-0010
9 Outlet Fitting * Plastic 08-0022 n/a n/a n/a
Outlet Fitting * SS n/a 08-0013 08-0013 08-0013
10 Inlet Fitting * Plastic 08-0021 n/a n/a n/a
Inlet Fitting * SS n/a 08-0015 08-0015 08-0015
11 SS Screw Clamps 08-9004 08-9003 08-9003 08-9003
Manifold Plug* 08-9002 08-9001 08-9001 08-9001
*Requirements based on number of outlets
9
Parts List
Complete Roller Assembly
Standard Squeeze Tube Pump
Item # Description 24B-1 16L 16B-1 12L 12B-1 8L 8B-1
1 Regular Roller Assembly 09-2410 09-1620 09-1610 09-1220 09-0820 09-0820 09-0810
2 Modified Roller Assembly 09-2412 09-1622 09-1612 09-1222 09-0822 09-0822 09-0812
3 Regular Mainshaft 10-2410 10-1620 10-1610 10-1220 10-0820 10-0820 10-0810
4 Modified Mainshaft 10-2412 10-1622 10-1612 10-1222 10-0822 10-0822 10-0812
5 Rollers (4) 09-2411 09-1621 09-1611 09-1221 09-0821 09-0821 09-0811
Double and Combination Squeeze Tube Pumps
24LD 32BD-1 40BD-1 48BD-1
Item # Description Front Center Front Center Front Center Front Center
1 Regular Roller Assembly 09-2423 09-2424 09-3213 09-3214 09-4010 09-4011 09-4813 09-4814
2 Modified Roller Assembly 09-2423 09-2424 09-3213 09-3214 09-4010 09-4011 09-4810 09-4811
3 Regular Mainshaft 10-2423 10-2424 10-3212 10-3214 10-3223 10-3224 10-4813 10-4814
4 Modified Mainshaft 10-2423 10-2424 10-3212 10-3214 10-3223 10-3224 10-4813 10-4814
5 Rollers (4) 09-1221 09-1221 09-1611 09-1611 09-1621 09-1621 09-2411 09-2411
8B-1/8L 12B-1/8L
Item # Description Front Center Front Center
1 Regular Roller Assembly 09-1623 09-1624 09-1623 09-1624
2 Modified Roller Assembly 09-1623 09-1624 09-1623 09-1624
3 Regular Mainshaft 10-1623 10-1624 10-1623 10-1624
4 Modified Mainshaft 10-1623 10-1624 10-1623 10-1624
5 Rollers (4) 09-0821 09-0821 09-0821 09-0821
11
Models Available for Oval-shaped
Squeeze Tube Pump with Built-in Backing Plate
Standard Models
Part Number Metering GPA Discharge Suction
Number of Rows Hose Size Hose Size Hose Size
8B-1 8 3/8 1.5-25 3/8 1 FNPT
8L 8 5/8 3-50 1/2 1 FNPT
12B-1 12 3/8 1.5-25 3/8 1 FNPT
12L 12 5/8 3-50 1/2 1 FNPT
16B-1 16 3/8 1.5-25 3/8 1 FNPT
16L 16 5/8 3-50 1/2 1 FNPT
24B-1 24 3/8 1.5-25 3/8 1 FNPT
Hydraulic Models
8B-1H 8 3/8 1.5-25 3/8 1 FNPT
8L-H 8 5/8 3-50 1/2 1 FNPT
12B-1H 12 3/8 1.5-25 3/8 1 FNPT
12L-H 12 5/8 3-50 1/2 1 FNPT
16B-1H 16 3/8 1.5-25 3/8 1 FNPT
16L-H 16 5/8 3-50 1/2 1 FNPT
Combination Pump Models
8B-1/8L 16 3/8 & 5/8 1.5-50 3/8 & 1/2 1 FNPT
12B-1/8L 20 3/8 & 5/8 1.5-50 3/8 & 1/2 1 FNPT
Double Pump Models
24LD 24 5/8 3-50 1/2 1 FNPT
32BD-1 32 3/8 1.5-25 3/8 1 FNPT
40BD-1 40 3/8 1.5-25 3/8 1 FNPT
48BD-1 48 3/8 1.5-25 3/8 1 FNPT
Note: B-1 Pumps have stainless steel fittings.
L Pumps have plastic fittings.
Combination Pumps have B-1 Pump at front (input drive end).
Visit our web site: www.cds-johnblue.com for information on drives,
sprockets and other accessories. Or contact your local CDS-John Blue Dealer
for a complete product catalog.
Available From:
FPCO0104-2-3000
CDS-John Blue Company,
Division of Advanced Systems Technology, Inc.,
P Box 1607
.O.
Huntsville, AL 35807
Tel: (256) 721-9090, 800-253-2583
Fax: (256) 721-9091
www.cds-johnblue.com, E-mail: info@cds-johnblue.com
Printed in USA
