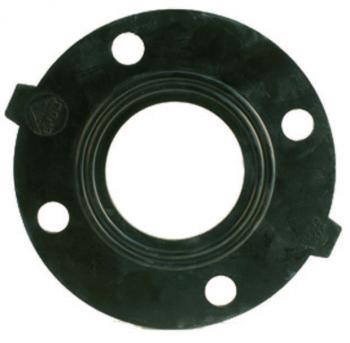

2" EPDM ANSI Flange Gasket
Keywords: Banjo Corporation, Banjo Valves, Banjo Fittings, Banjo Pumps
| Product Details: |
| |
| Description: 2" EPDM ANSI Flange Gasket | | | | | | | Replacement Parts | | Actual Product May Differ from Picture | | | | | AF200G | | | |
| |
| |
| |
| |
| Product Specifications: |
| |
| Features | | Sizes & Measurements | | | | | EPDM Type | Fits 2" ANSI Flange (AF200) | | | | | | | | | | | | | | | | | | | | | | | | | | | | Additional Sizes Available | | | | | | AF200 | | | AF200GV | | | AF150 | | | AF300 | | | | | | | | | | | | | | | | | | | | | Detailed Description: 2" EPDM Gasket for 2" Polypropylene ANSI Flange | | | | QTY: EA | | | | |
| |
| |
| |
Category: [0] => SUPPLIER DIRECTORY => BANJO CORPORATION => BANJO VALVES COUPLINGS PUMPS FITTINGS PARTS, SECTION 33
Catalog sheet:
V A LV E S
2" Full Port Polypropylene Bolted Ball Valves
FEATURES
FKM (viton type) seals.
Stainless steel bolts.
PTFE self-lubricating stem bushings and
seats cannot stick or bind.
Precision molded in polypropylene.
Polypropylene is reinforced with fiberglass
for additional strength.
Self-aligning ball moves freely against the
PTFE seats for smooth operation.
Valve opens and closes with very little pressure on the handle.
Ball is diamond turned, after molding, to make it spherically
perfect, which provides precise contact between ball and seats.
Maximum operating pressure 150 P .S.I. @ 70F &75 P.S.I.@150F.
4 BOLT FULL PORT VALVES
OPENING
MAX PIPE THRU
PART NO. DESCRIPTION PSI SIZE BALL QUANTITY
VFMT204FP 2" Valve-Male NPT X Male Adapter 150 2" 2" 6/per box
V204FP Valve Full Port 150 2" 2" 8/per box
2" Full Port ANSI Flange Ball Valves
FEATURES
100% PTFE seats.
FKM (viton type) Seals.
Glass-filled polypropylene.
Unique compact design.
Lightweight.
Maximum operating pressure
100 P.S.I. @ 70F & 75 P .S.I. @150F.
ANSI FLANGE 6 BOLT VALVES ANSI Flange Gasket
OPENING
MAX PIPE THRU
PART NO. DESCRIPTION PSI SIZE BALL QUANTITY
VSF200FPAF 2" Male Adapter X 2" ANSI Flange 100 2" 2" 6/per box
VSMT200FPAF 2" Male NPT X 2" ANSI Flange 100 2" 2" 6/per box
AF200G 2" ANSI Flange Gasket - EPDM Sold Separately
AF200GV 2" ANSI Flange Gasket FKM (viton type) Sold Separately
14
Sales & Tech: info@kscdirect.com IBC/TANK ACCESS. kscdirect.com
Polypropylene Class 150 ANSI Flanges
FEATURES
150 P.S.I. Maximum.
Glass Reinforced
Polypropylene.
Heavy Duty.
I
B
C
/
T
A
N
150# THREADED ANSI FLANGES 150# BLIND ANSI FLANGES
K
PART NO. DESCRIPTION PIPE SIZE PART NO. DESCRIPTION PIPE SIZE
AF100 1" Female Thread ANSI Flange 1" AFB100 1" Blind ANSI Flange N/A
11/2" Female Thread ANSI Flange 11/2"
A
AF150 AFB150 11/2" Blind ANSI Flange N/A
AF200 2" Female Thread ANSI Flange 2" AFB200 2" Blind ANSI Flange N/A
AF300 3" Female Thread ANSI Flange 3" AFB300 3" Blind ANSI Flange N/A
C
AF400 4" Female Thread ANSI Flange 4" AFB400 4" Blind ANSI Flange N/A
C
E
S
S
O
R
ANSI Flange Gasket
I
ANSI FLANGE EPDM GASKETS ANSI FLANGE FKM VITON TYPE GASKETS
E
PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY.
AF100GV 1" ANSI Flange Gasket 1 pc.
S
AF100G 1" ANSI Flange Gasket EPDM 1 pc.
FKM (viton type)
AF150G 11/2" ANSI Flange Gasket EPDM 1 pc.
AF150GV 11/2" ANSI Flange Gasket 1 pc.
AF200G 2" ANSI Flange Gasket EPDM 1 pc. FKM (viton type)
AF300G 3" ANSI Flange Gasket EPDM 1 pc. AF200GV 2" ANSI Flange Gasket 1 pc.
AF400G 4" ANSI Flange Gasket EPDM 1 pc. FKM (viton type)
AF300GV 3" ANSI Flange Gasket 1 pc.
FKM (viton type)
AF400GV 4" ANSI Flange Gasket 1 pc.
FKM (viton type)
83
