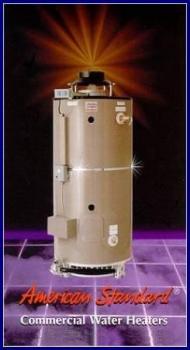

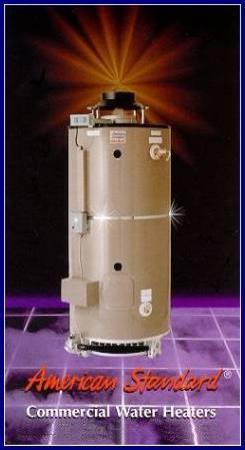

American Standard 100 Gallon Commercial Gas Water Heater - 199K BTU

MODEL: D-100-199-AS
100 GALLON HEAVY DUTY STORAGE
DIRECT SPARK IGNITION DAMPERED
199,900 BTU NATURAL GAS

♦ Heavy Gauge Steel Tank incorporating only seven internal flue tubes resulting in
   fewer critical welds to yield added years of trouble-free service.
♦ Inner tank glass-lined with Dura-Glas™ and fired at 1600° F for optimum    protection from the effects of corrosion.
♦ R-8.3 non-CFC foam insulated to save energy and reduce fuel costs by maximizing
   heat retention.
♦ Four anode rods to ensure maximum tank life.
♦ Self-Cleaning turbulence inducing cold water inlet-tube engineered to diminish hard
   water area sediment deposits.
♦ Full size hand-hole cleanout for eased tank inspection and/or removal of sediment
   deposits.
♦ Electronic direct-spark ignition system saves fuel by eliminating the need for a
   standby gas pilot.
♦ Automatic motorized flue damper reduces tank heat loss during standby periods for
   lowest operating costs.
♦ Fully adjustable 24-volt controls provide temperature settings to 180° F. When
   installed with a mixing valve, the D-100-199-AS can deliver 180° F sanitizing
   and 140° F general purpose hot water simultaneously.
♦ Factory installed energy cut-off system and pressure/temperature relief valve.
♦ Top 1½", 2" rear and 2" front water connections for universal replacements,
   connection to circulating lines and eased multiple heater or storage tank installations.
♦ AMERICAN STANDARD gas water heaters are certified at 300 PSI test pressure
   and for 150 PSI working pressure. All tanks are hydrostatically tested at the    factory.
♦ American Gas Association design certified for operation as an automatic storage
  and/or automatic circulating tank heater in accordance with AGA ANSI Z-21.10 test
  requirements.
♦ Three year limited warranty on inner glass-lined tank and one year limited warranty
   on all other component parts.

THIS WATER HEATER MEETS THE REQUIREMENTS
OF ASHRAE 1992 STANDARD ADDENDUM
90.1b AND MEETS OR EXCEEDS THE THERMAL
EFFICIENCY AND STANDBY LOSS REQUIREMENTS
OF CALIFORNIA AND OTHER STATES
RECOGNIZING ASHRAE.

Category:
[0] => PLUMBING => WATER HEATERS => COMMERCIAL WATER HEATERS
[1] => SUPPLIER DIRECTORY => AMERICAN STANDARD WATER HEATER => PLUMBING => WATER HEATERS => COMMERCIAL WATER HEATERS

Kelly Legacy Part Number: 4734740
